HVAC Accessories for Vertical Support
Our vertical pipe supports are precision-engineered HVAC accessories that stabilize and protect vertical linesets in VRF and HVAC systems. Each support minimizes buckling, movement, and thermal stress to maintain optimal system alignment and performance over time.
From durable base brackets to insulated sleeves, these products offer reliable, easy-to-install solutions for mounting and securing linesets. Designed for both top and wall configurations, they deliver consistent strength and stability to meet professional installation standards.
Filters
Sub Categories
Application
Size
Diameter
Brand
Material
Color
-

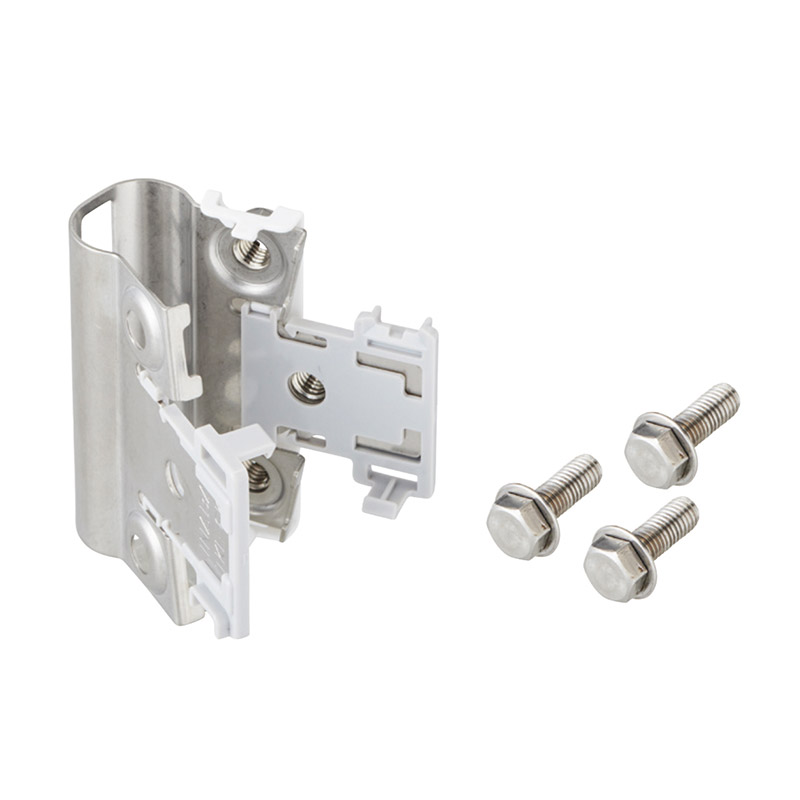

TKL LineBrace Vertical Lineset Support
LineBrace supports vertical lineset risers in VRF/VRV systems and reduces thermal expansion stress on the lowest elbow by 50%. Prevents buckling and deformation caused by gravity and heat-induced pipe movement.
-

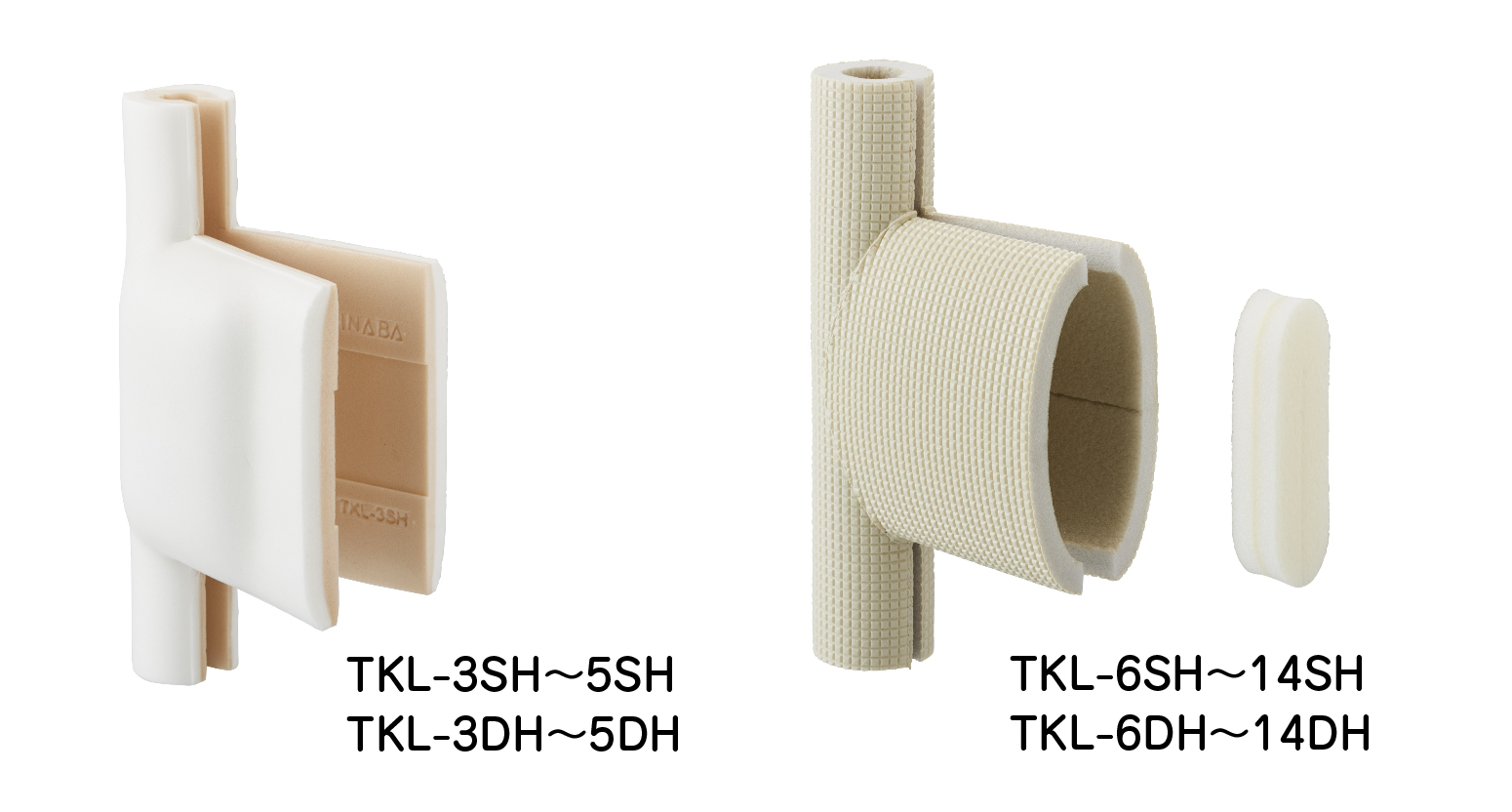

TKL-H Insulation
Protective insulation for vertical linesets. Resists compression and works with LineBrace to prevent damage from thermal stress..
-

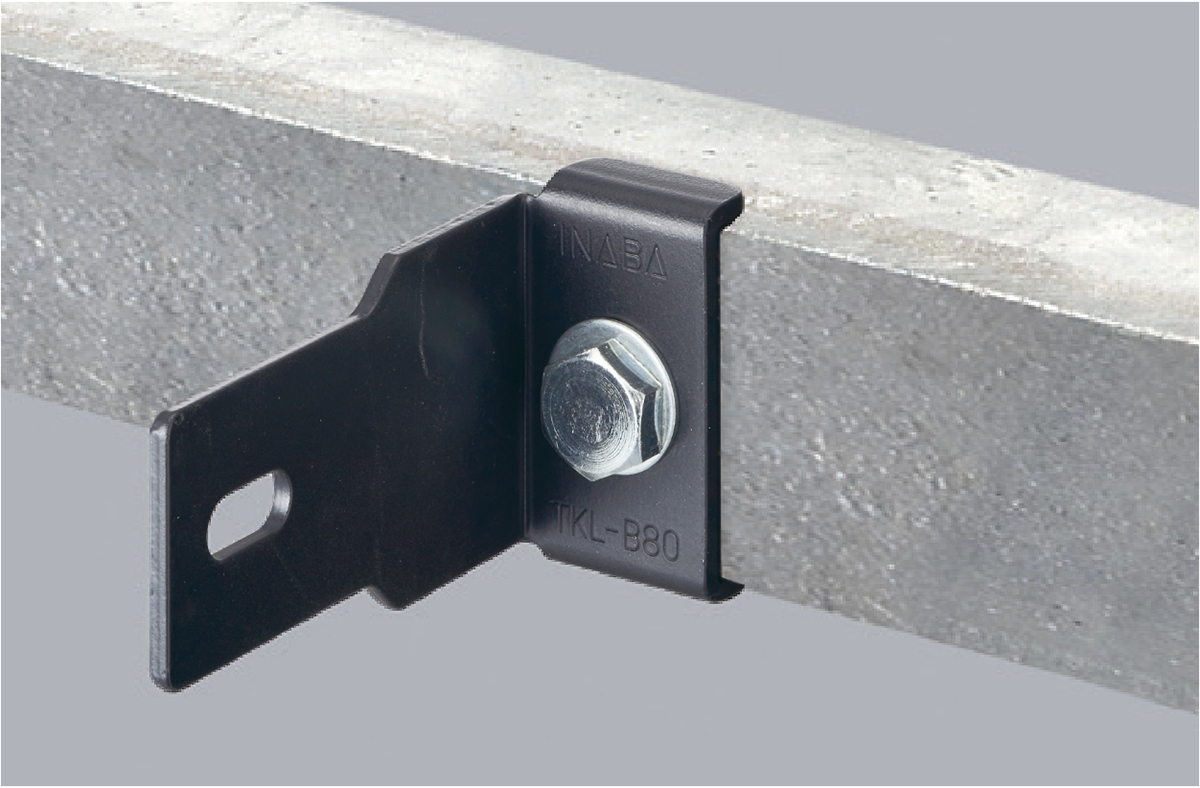

TKL-B Base Bracket
Prevents buckling in vertical linesets. Central fixed point supports weight and controls thermal movement. Easy to install.
-

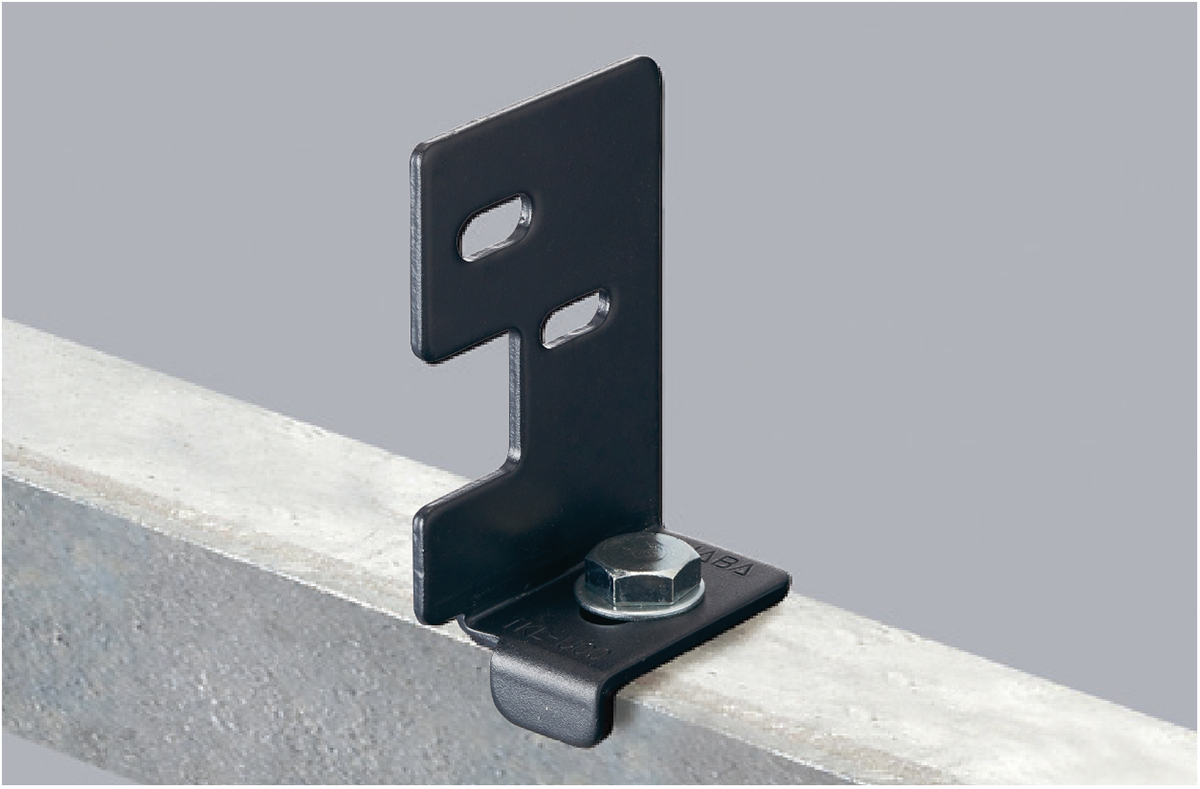

TKL-U Base Bracket (Top-Mounting)
Securely anchors the LineBrace Clamp at the top of vertical lineset runs. Provides stable, load-bearing support for proper alignment and stress reduction in VRF/VRV systems.
-

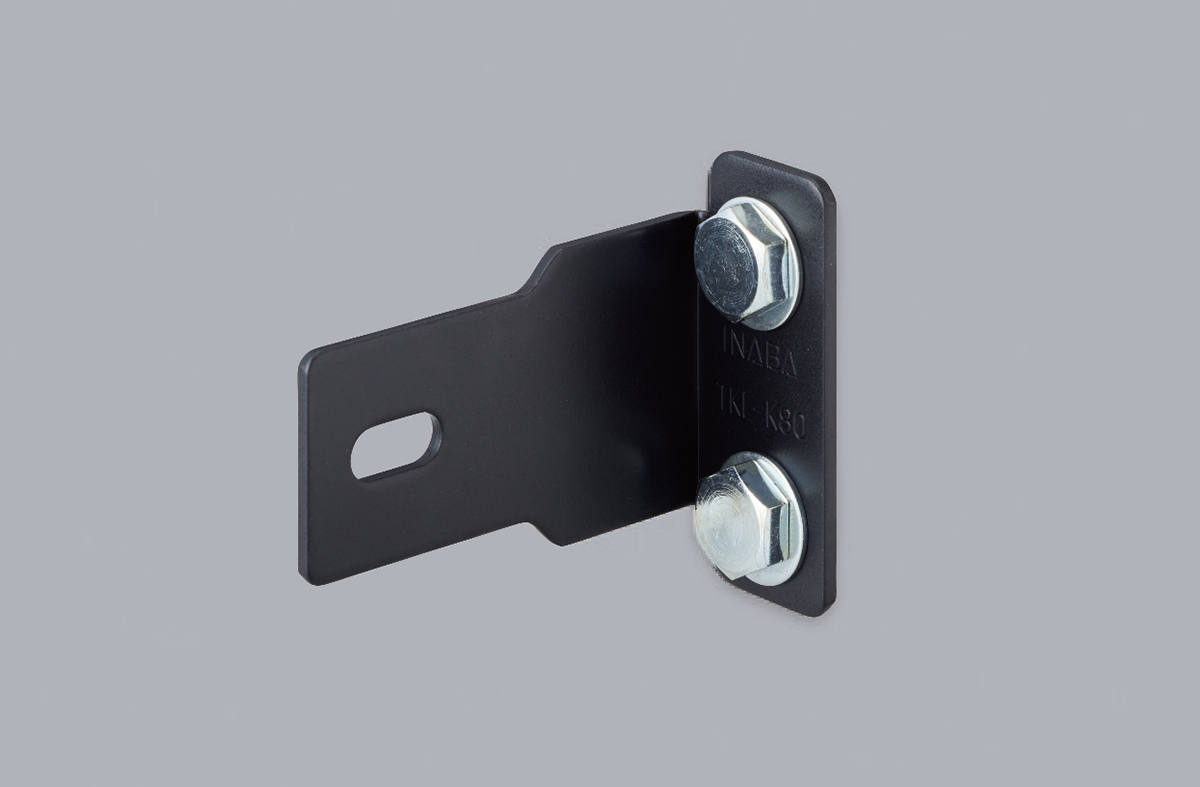

TKL-K Base Bracket (Wall Mounting)
Enables secure wall mounting of the LineBrace Clamp for vertical lineset support. Provides stable anchoring to reduce stress and maintain proper alignment in VRF/VRV systems.
Benefits of Using Vertical Support
Vertical lineset runs face gravity, heat, and constant movement, which is a lot to ask from pipes alone. The right HVAC accessories, like our vertical pipe support, give your system a steady backbone.
Supports Vertical Riser Weight
Vertical pipe supports carry the weight of refrigerant piping along tall risers. This reduces the load transferred to lower fittings and helps protect linesets from gravity-related stress.
Manages Thermal Expansion
Refrigerant piping expands and contracts as temperatures change. A properly positioned support controls this movement and can distribute thermal expansion above and below the central support point.
Reduces Buckling and Deformation
Gravity and thermal movement can place considerable stress on vertical copper piping. Dedicated supports stabilize the riser and help reduce buckling, deformation, and stress near lower elbow fittings.
Supports Proper Lineset Alignment
Stable support points help you keep vertical refrigerant piping properly positioned throughout the riser. Better alignment also creates an organized installation and supports easier access during future service.
Adapts to Different Mounting Conditions
Vertical HVAC runs can require different attachment methods. Top-mounting, wall-mounting, and standard base bracket options give contractors practical choices for different building layouts and installation conditions.
Why Choose Inaba Denko
Vertical risers require products designed around the forces that affect refrigerant piping over long distances. Inaba Denko creates HVAC accessories developed specifically for these demanding installations.
Prevents Buckling
Tall lineset runs can bend under their own weight. A vertical pipe support holds pipes straight and steady, so gravity and heat never get the chance to deform your lines.
Eases Thermal Stress
Pipes expand and contract as temperatures swing. TKL LineBrace takes that pressure off the lowest elbow, cutting thermal expansion stress there by 50%.
Carries the Weight
A vertical riser is heavy, and that load has to go somewhere. Base brackets act as a central fixed point, carrying the weight and controlling movement so linesets stay put.
Flexible Mounting Options
Every building is different. With top-mounting and wall-mounting bracket options, you can anchor your lineset wherever the structure allows, and still get the same steady, reliable support.
Simple to Install
Nobody enjoys a complicated installation. These HVAC accessories are easy to put in place, saving your crew time on site and leaving you with a professional installation.
About Inaba Denko America
Inaba Denko America Inc. supplies HVAC accessories to distributors and contractors throughout North America. Our HVAC division was established in 1978 and has decades of experience developing products for ductless systems. Today, our HVAC accessories serve markets worldwide, with solutions for linesets, pipe support, condensate management, mounting, and lineset protection.
FAQs about Vertical Pipe Support
What Does a Vertical Pipe Support Do?
It holds your vertical lineset steady, carrying its weight and controlling movement caused by heat. That way, your system avoids buckling, deformation, and misalignment in your VRF and HVAC systems over time.
When Do You Need a Vertical Pipe Support?
You need one whenever your linesets run up or down a riser, especially in VRF or VRV systems. Gravity and thermal expansion work on those pipes constantly, so steady support keeps them safe.
What Is the TKL LineBrace?
TKL LineBrace is our vertical lineset support for risers in VRF and VRV systems. It reduces thermal expansion stress on the lowest elbow by 50% and helps prevent buckling caused by gravity and heat.
Can You Mount a Support on a Wall or at the Top of a Run?
Yes, you can. The TKL-K Base Bracket handles wall mounting, while the TKL-U Base Bracket anchors the LineBrace Clamp at the top of vertical runs. Pick whichever suits your building best.
What Does TKL-H Insulation Do?
TKL-H Insulation protects your vertical lineset and resists compression. It works alongside LineBrace to prevent damage from thermal stress, so your pipes stay protected right where the clamps hold them.
Are Vertical Pipe Supports Hard to Install?
Not at all. Our products like the TKL-B Base Bracket are easy to install, and they give you a central fixed point that supports weight and controls thermal movement along the whole run.
