The BGK Seismic Brace is an anti-sway and anti-vibration solution with anti-vibration rubber and metal designed to stabilize HVAC and mechanical systems during seismic events. Designed for use with 3/8″ threaded rod and compatible with CrossLock, BGK offers reliable lateral sway control and eliminates micro-vibrations that can compromise system performance.
BGK Seismic Brace
BGK Seismic Brace

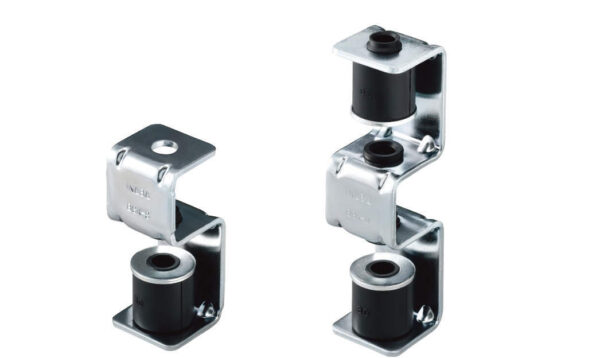

BGK Seismic Brace comes with pre-assembled components, including anti-vibration rubber and metal fittings. Designed for easy handling and quick installation with no tools needed. Compatible with 3/8″ threaded rod systems.
- Take away stress on the threaded rod
- Stabilizes HVAC equipment in the event of an earthquake

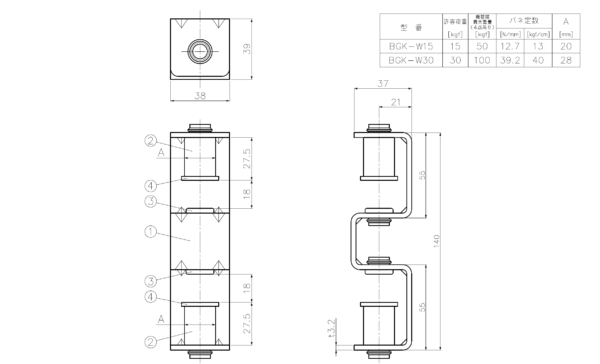

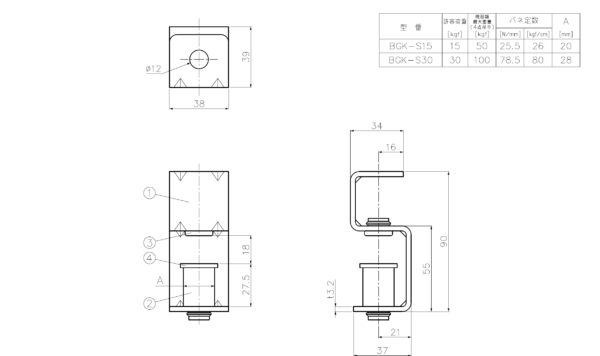

| Code No. | Item No. | Applicable threaded rod | Load Capacity | Maximum equipment weight (4 point hanging) | Spring rate | A | Pcs/Pkg |
|---|---|---|---|---|---|---|---|
| C 58201 | BGK-S15 | 3/8″ | 33 lbf | 110 lbs/inch | 145 lbs/inch | 7/8″ | 60 |
| C 58211 | BGK-W15 | 3/8″ | 66 lbf | 220 lbs/inch | 447 lbs/inch | 1-1/8″ | 40 |
| C 58202 | BGK-S30 | 3/8″ | 33 lbf | 110 lbs/inch | 72 lbs/inch | 7/8″ | 60 |
| C 58212 | BGK-W30 | 3/8″ | 66 lbf | 220 lbs/inch | 223/lbs/inch | 1-1/8″ | 40 |
