The Slab Stand is a durable, elevated base designed to support outdoor HVAC condenser units above ground level. Ideal for installations on uneven surfaces, grassy areas, or places prone to water accumulation, this stand ensures a stable and level platform that promotes optimal airflow and protects equipment from ground moisture and debris.
C-NG Slab Stand
C-NG Slab Stand

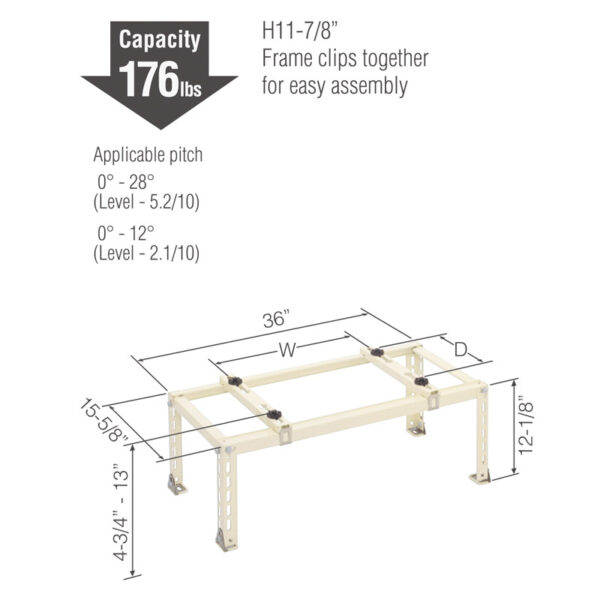

The slab stand raises the condenser up above a flat surface.
H11-7/8″ frame clips together for easy assembly. The applicable pitch 0° – 28° (Level 5.2/10) 0° – 12° (Level 2.1/10)
| Use | Code No. | Item No. | A/C applicable size | Min. lot |
|---|---|---|---|---|
| For Flats | C 18516 | C-NG | W: 11-7/8″ – 27-5/8″, D: 6-3/8″ – 13-1/2″ | 3 |
Q. What is the Universal Condenser Slab Stand used for?
A. The Universal Condenser Slab Stand is designed to elevate air conditioning condenser units up to 12 inches above flat surfaces. This elevation helps protect the units from debris, flooding, and pests, while also improving airflow around the condenser for optimal performance.
Q. What materials are used in the construction of the stand?
A. The stand is constructed from heavy-duty steel and features either a galvanized or powder-coated finish. These materials provide durability and resistance to corrosion, ensuring long-term outdoor use.
Q. What is the weight capacity of the stand?
A. The stand can support condenser units weighing up to 176 lbs.
Q. Are the legs of the stand adjustable?
A. Yes, each leg of the stand is independently adjustable. This feature allows for stable installation on uneven surfaces, ensuring the condenser unit remains level.
Q. Does the stand have any features to prevent slipping?
A. Yes, the stand is equipped with anti-slip rubber feet on each leg. These feet provide additional stability and prevent the stand from shifting or sliding on smooth surfaces.
Q. What are the dimensions of the stand?
A. Width (W)_Adjustable from 11-7/8″ to 27-5/8″
Depth (D)_Adjustable from 6-3/8″ to 13-1/2″
Q. How many stands are included per package?
A. Each package contains 3 units of the Universal Condenser Slab Stand.
