C-WG-L Duplex Stand
C-WG-L Duplex Stand
The duplex stand supports two condenser units in a vertical configuration.
The duplex stand supports two condenser units in a vertical configuration.

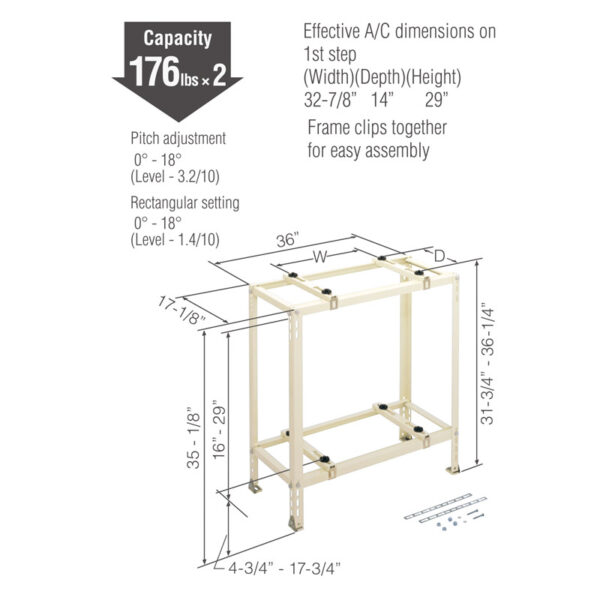

Effective A/C dimensions on 1st step. (Width) 32-7/8 (Depth) 14″ (Height) 29″ Frame clips together for easy assembly
| Use | Code No. | Item No. | A/C applicable size | Min. lot |
|---|---|---|---|---|
| For Two-Stage Flats | C 18527 | C-WG-L | W: 15-3/4″ – 31-1/2″, D: 7-7/8″ – 15″ | 2 |
What is the Universal Duplex Condenser Stand used for?
The Universal Duplex Condenser Stand is designed to securely mount two air conditioning condenser units vertically, one above the other. This space-saving solution is ideal for installations where ground space is limited or when elevating units is necessary to prevent damage from debris, flooding, or pests.
What materials are used in the construction of the stand?
The stand is constructed from heavy-duty steel and features a powder-coated finish. This combination provides durability and resistance to corrosion, ensuring long-term outdoor use.
What is the weight capacity of the stand?
The stand can support two condenser units, each weighing up to 176 lbs, for a total capacity of 352 lbs.
Inaba Denko America Inc.
What are the dimensions of the stand?
Width (W)_Adjustable from 15-3/4″ to 31-1/2″
Depth (D)_Adjustable from 7-7/8″ to 15″
Does the stand have any features to prevent slipping?
Yes, the stand is equipped with anti-slip rubber feet on each leg. These feet provide additional stability and prevent the stand from shifting or sliding on smooth surfaces.
