The CH-1YN Strut Channel is a precise mounting solution designed for secure installation of 3/8″ threaded rod. Featuring a line hold, a center line, and convenient 1/2″ and 2″ cut scales, it ensures accurate alignment and efficient field customization. Constructed from durable hot-dip galvanized steel, the CH-1YN is built for reliable indoor use, offering corrosion resistance and structural support in HVAC, electrical, and mechanical applications.

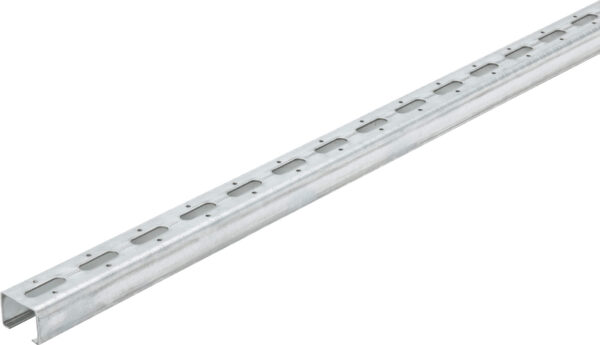

CH-1YN Strut Channel
CH-1YN Strut Channel
The CH-1YN Strut Channel is a hot-dip galvanized steel support channel designed for indoor use. It features a built-in line hold for mounting 3/8″ threaded rod, along with a center line and 1/2″ and 2″ cut scale for quick, accurate installation.
- With a line hole for mounting 3/8″ threaded rod
- With center line and 1/2″ and 2″ cut scale
- Material: Hot-dip galvanized steel
- Caution: Indoor use only

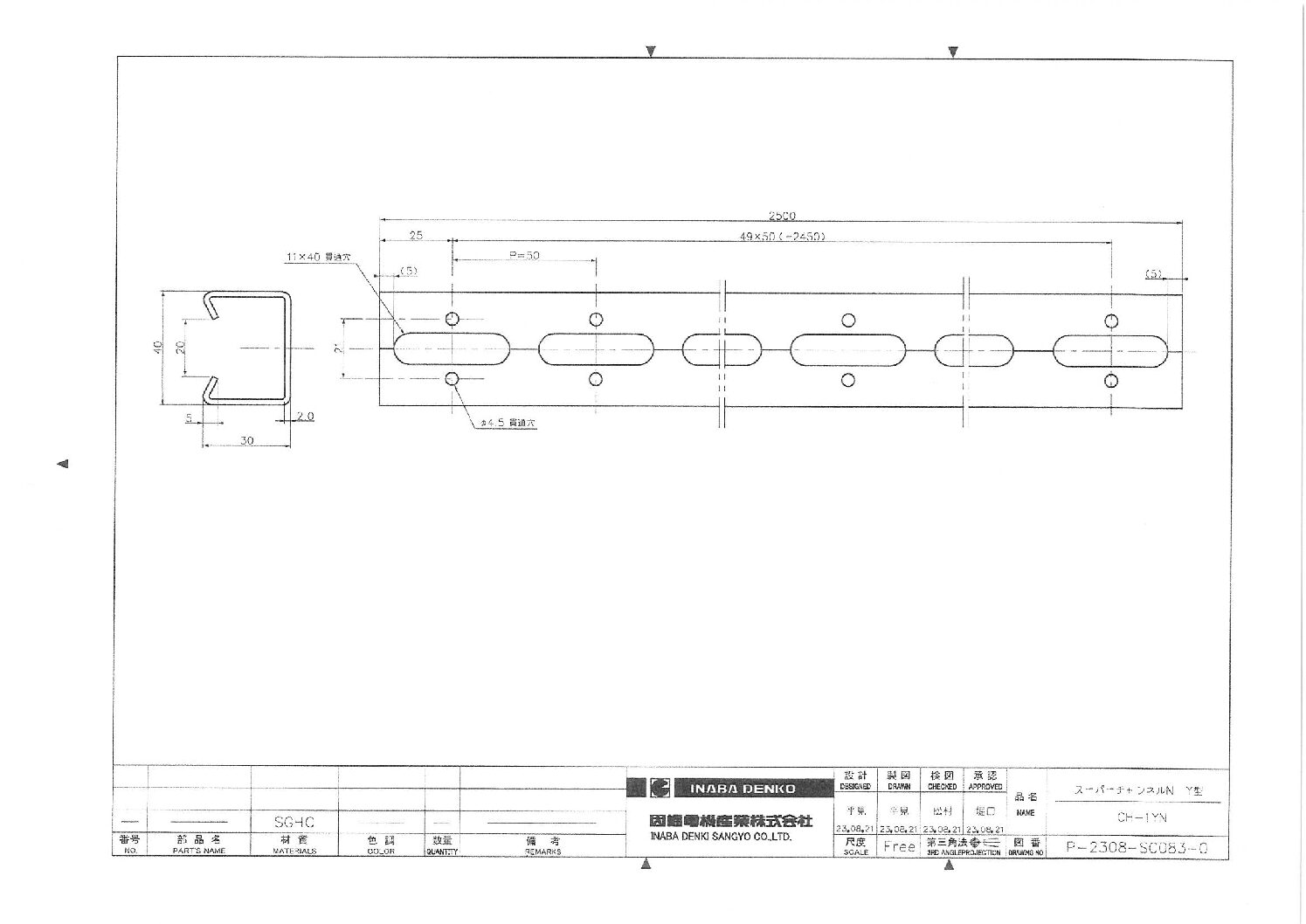

| Code No. | Item No. | L | t | Pcs/Pkg |
|---|---|---|---|---|
| C 57520 | CH-1YN | 98-1/2″ | 1/8″ | 4 |
| Allowable Static Load (lbf) | ||||||||
|---|---|---|---|---|---|---|---|---|
| 11-7/8″ | 17-3/4″ | 23-5/8″ | 35-1/2″ | 47-1/4″ | 58-1/8″ | 78-3/4″ | 98-1/2 | |
| CH-1YN | 440 | 352 | 242 | 154 | 154 | 66 | 44 | 22 |
