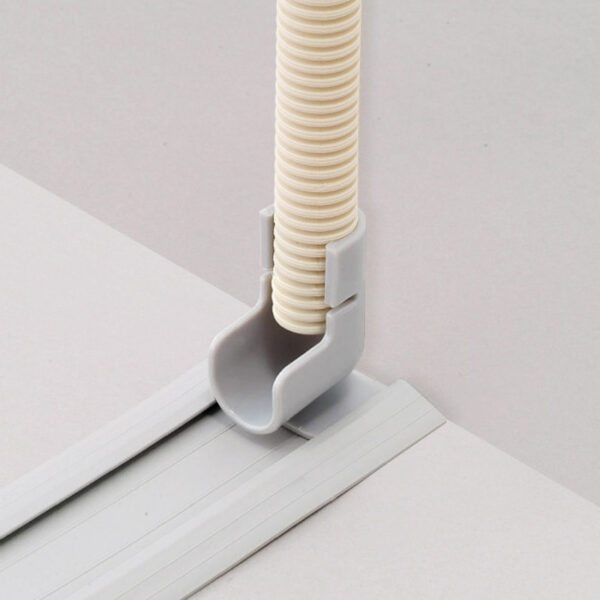

The Drain Channel Adapter provides a secure and reliable connection between the drain hose and the drain channel, helping to prevent leaks and disconnections. Designed to clip easily onto the end of the drain hose, this adapter is installed using cement or glue to ensure a tight, long-lasting fit.
DL-H Drain Channel Adapter
DL-H Drain Channel Adapter
The drain channel adapter clips to the end of drain hose into drain channel with cement and glue for a more secure connection.
– Temperature Range: -4°F to 140°F

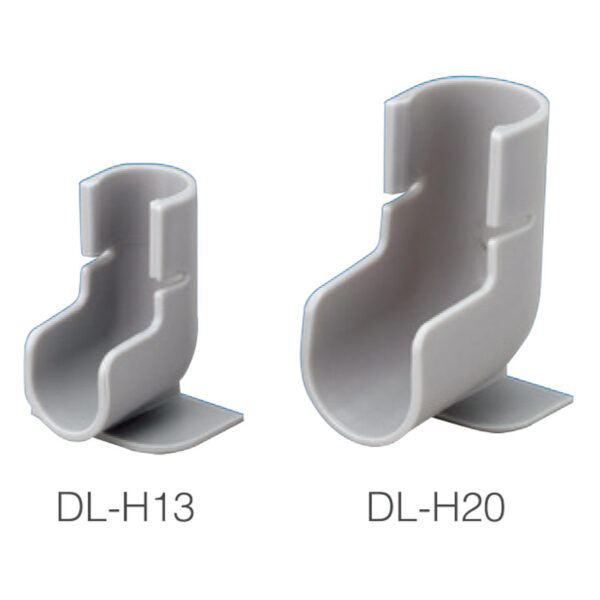

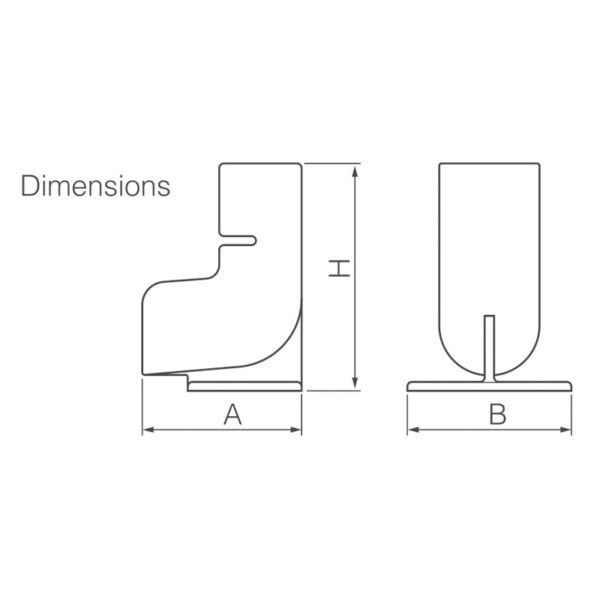

| Code No. | Item No. | Compliant pipe | A | B | H | Pcs/Pkg |
|---|---|---|---|---|---|---|
| C 23421 | DL-H13 | DH-14, DHQ-14, DH-16, DHQ-16 | 1-1/2″ | 1-1/2″ | 2″ | 100 |
| C 23431 | DL-H20 | PVC pipe 3/4″ | 2″ | 1-1/2″ | 2-5/8″ | 100 |
Q. What is the DHQ drain hose used for?
A. The DHQ series is a UV-resistant drain hose designed for air conditioning systems, offering long-lasting durability in outdoor and high-exposure environments.
Q. What sizes are available in the DHQ series?
A. DHQ-14-I_13.5 mm inner diameter
DHQ-16-I_16.0 mm inner diameter
Both come in 50-meter lengths with cuff spacing of 500 mm.
Q. What is the hose made of?
A. The DHQ drain hose is made from LLDPE (Linear Low-Density Polyethylene) and comes in ivory color.
Q. Are DHQ accessories UV resistant?
A. No. The accessories for DHQ (like couplers, adapters, insulation, etc.) are not UV resistant and should be used accordingly.
Q. What accessories are available for the DHQ drain hose?
A. PMD Insulation_Foam PE insulation for DHQ-14 and DHQ-16
DHJ Couplers (14 & 16)_For connecting cut hoses
DY Vented Drain Wye_Connects two drain hoses
NDA & NDH Adapters_For connecting to JIS standard PVC fittings
DS Saddles (14 & 16)_Secures hoses to surfaces
DC-1416 Bug Stopper_Prevents insects from entering the hose
Q. Can the accessories be used with other drain hoses?
A. The accessories are designed specifically for Inaba Denko’s DH and DHQ series and may not be compatible with other hose types.
