The DSH Drain Hose Socket Coupler connects DSH drain hoses to standard Drain Hose or DHQ, ensuring a seamless transition for effective condensate management. Designed for use with the DSH-Up Drain-Up Hose Kit, it eliminates the need for complex PVC assemblies and adhesive joints. Its flexible, insulated connection supports fast, secure installation and minimizes the risk of leaks and condensation in indoor commercial AC systems.

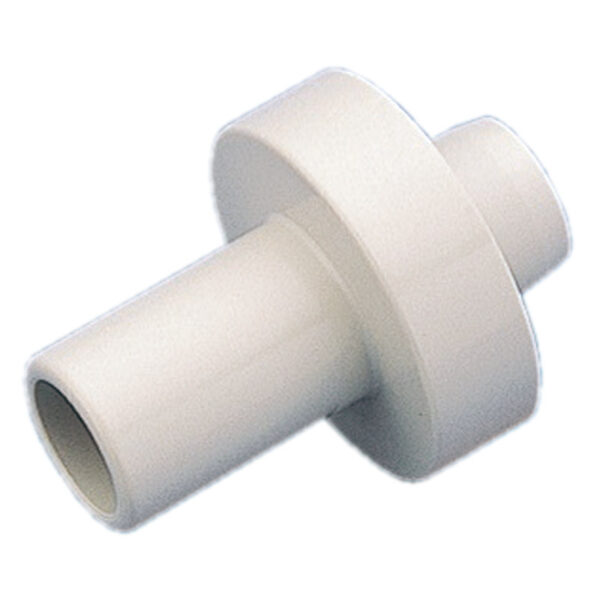

DSH-14H Hose to Hose socket coupler extension
DSH-14H Hose to Hose socket coupler extension
The DSH Drain Hose Socket Coupler connects DSH to Drain Hose or DHQ, enabling quick, secure transitions for efficient condensate management in commercial AC systems.

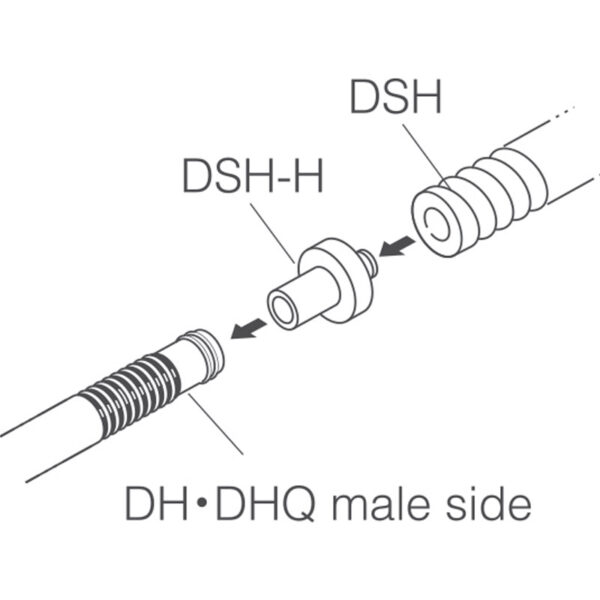

To fit drain hose (DH/DHQ) with male side. – Caution: DSH series must be used indoor. – Cut drain hose in right angle, and completely remove any dust, oil and trash. – Use cement/glue for PVC pipe use and insert drain hose/pipe fully into accessory fitting to avoid any problems such as water leakage. – Do not bend drain hose by a radius or less than three times the outer diameter. – Do not slack drain hose when installing (Need slope for water flow). – Use drain hose accessories exclusively with Inaba Denko drain hoses. Use of these products in combination with any other brand will invalidate warranty. – Do not use cement/glue for PVC pipe connection between drain hose (DH/DHQ) & coupler (DSH014H/DSH014J). Insert drain hoses, acessory fittings and secure with tape.
| Code | No. Item | No. Compliant | drain | hose Pcs/Pkg |
|---|---|---|---|---|
| C | 08240 | DSH-14H | DSH-14 | 100 |
| Caution: | ||||
| – DSH series must be used indoors. | ||||
| – Cut drain hose in right angle, and completely remove any dust, oil and trash. | ||||
| – Use cement/glue for PVC pipe se and insert drain hose/pipe fully into acessory fitting to avoid any problems such as water leakage. | ||||
| – Do not bend drain hose by a radius or less than three times the diameter. | ||||
| – Do not slack drain hose when installing (Need slope for water flow). | ||||
| – Use drain hose accessories exclusively with Inaba Denko drain hoses. Use of these products in combination with any other brand will invalidate warranty. | ||||
| – Do not use coment/glue for PVC pipe connection between drain hose (DH/DHQ) & coupler (DSH-14H/DSH14J) insert drain hoses, accessory fittings and secure with tape. | ||||
Q. Are there any proven cases of installation?
A. With sales in Japan and the world, we have about 600,000 units of actual installation.
Q. Are there any proven cases of installation?
A. There are approximately 600,000 installations globally with a small number in North America and growing.
Q. Can I use DSH-UP for equipment besides air-conditioning units?
A. DSH-UP was developed to be used for drain-up piping on indoor air-conditioning units. It is not suitable to be used for other purposes.
Q. Can I use DSH-UP for equipment besides air-conditioning units?
A. DSH-UP is designed to work as an air conditioning condensate drain hose only and should not be used outside of its intended purpose.
Q. Can DSH-UP be used outdoors?
A. It is specialized for indoor use. Please do not use it outside.
Q. Can DSH-UP be used outdoors?
A. No, it does not contain any UV protection and should not be used outdoors.

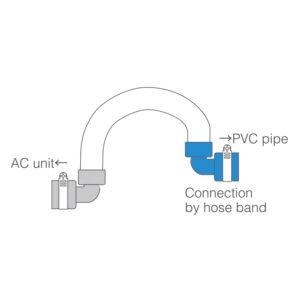

Q. When connecting the DSH-UP coupler to a PVC pipe, is it okay to use an adhesive instead of a metal band to make the connection?
A. Please do not use adhesive. Only use the metal hose band for connections.
Q. When connecting the DSH-UP coupler to a PVC pipe, is it okay to use an adhesive instead of the hose clamp to make the connection?
A. The connections are flexible and not compatible with any type of glue or adhesive. Use the stainless steel hose clamps provided with the product.
Q. Are the DSH-UP couplers and other parts included in the kit also sold separately?
A . No, the parts must be purchased as part of the kit.
Q. Are the DSH-UP couplers and other parts included in the kit also sold separately?
A. No, the parts needed are included in the kit. If additional parts are needed, another kit would need to be purchased.
Q. What should I do about condensation around the product?
A. Depending on the surroundings, insulation can be wrapped around the hose and coupler as a countermeasure to condensation.
Q. What should I do about condensation around the product?
A. While rare, if external condensation is an issue, additional field-supplied insulation may be applied around all surfaces and fittings.
