The Flanged Wall Sleeve ensures a clean, secure passage for linesets, wiring, and drain hoses through exterior walls. Made from high-density polyethylene (PE), it provides a sealed, professional finish that protects against moisture, pests, and environmental damage—delivering both function and a polished look to any installation.

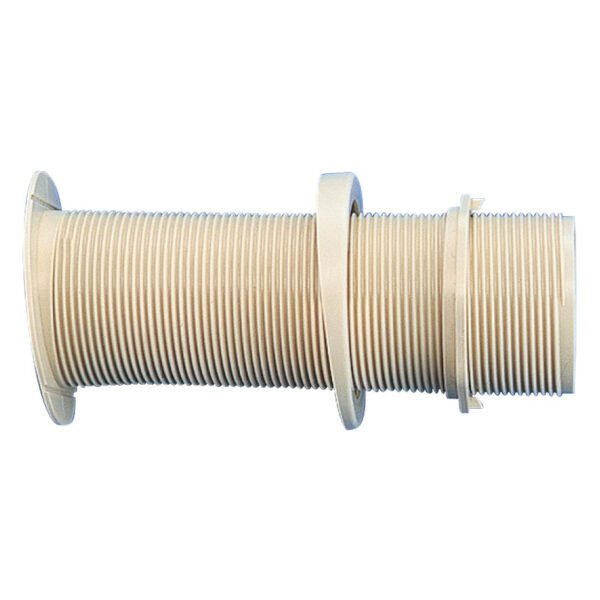

FPS Flanged Wall Sleeve with Angle
FPS Flanged Wall Sleeve with Angle
Creates a clean, sealed wall opening for lineset. Made from durable PE to block moisture, pests, and debris.
Integral 5° slope ensures correct pitch for drain line.
Easily secured tightly onto wall by tightening locknut.

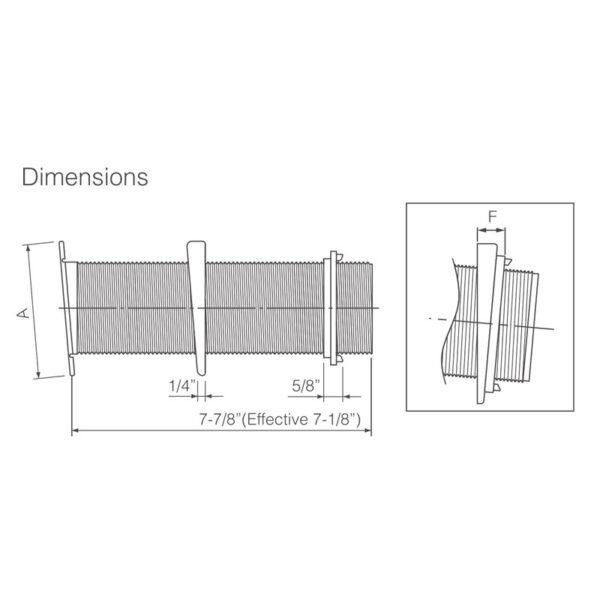

| Code No. | Item No. | A | I.D. | Core drill diameter | Effective length (max) | F | Pcs/Pkg |
|---|---|---|---|---|---|---|---|
| C 03930 | FPS-85 | 5-1/8″ | 3-3/8″ | 3-3/4″ | 7-1/8″ | 1″ | 10 |
Q. What are the different types of wall sleeves available?
A. The series includes_
FPF – Flanged Wall Sleeve (long type)
FPS – Flanged Wall Sleeve with angle
FP – Plain Wall Sleeve
FPW – Flanged Wall Sleeve with extended faceplate
Q. What materials are used in the construction of these wall sleeves?
A. All models are made from high-quality polyethylene (PE) or a blend of PE+PP, depending on the type.
Q. What color are the wall sleeves?
A. All wall sleeves come in Ivory (Silky White) for a neutral and professional finish.
Q. Can these wall sleeves accommodate drainage gradients?
A. Yes, especially the FPF and FPS models. FPF can be cut and tuned for a gradient up to 5°. FPS is specifically designed for angled installations and includes considerations for a 5° slope.
Q. What is the core drill diameter required for installation?
A. FPF-60_65 mm
FPS-85_95 mm (with drainage gradient)
FP Series_65–80 mm depending on model
FPW Series_65–75 mm depending on model
Q. Are these sleeves compatible with wall caps?
A. Yes, The FP Series sleeves are compatible with corresponding wall caps such as WC and UWC models.
Q. What makes the FPS sleeve unique?
A. The FPS has an angled design for installations requiring a drainage slope. It includes guidance for sealing with caulking or putty to ensure waterproofing.
Q. What installation considerations are there for waterproofing?
A. It is recommended to apply caulking or putty around the connection and penetration points, especially when installing the FPS model at an angle.
