Inaba Denko America has several pipe saddle support options that cradle a pipe and transfer the pipe’s load weight onto a supporting base. Pipe saddles support a pipe’s weight like the saddle on a horse. Ensure maximum stability and protection for your piping system with the Inaba Denko Pipe Saddle Support Brace. Engineered for superior performance, this high-quality support brace effectively distributes pipe load, minimizing stress on mounting points and extending the lifespan of your installation.

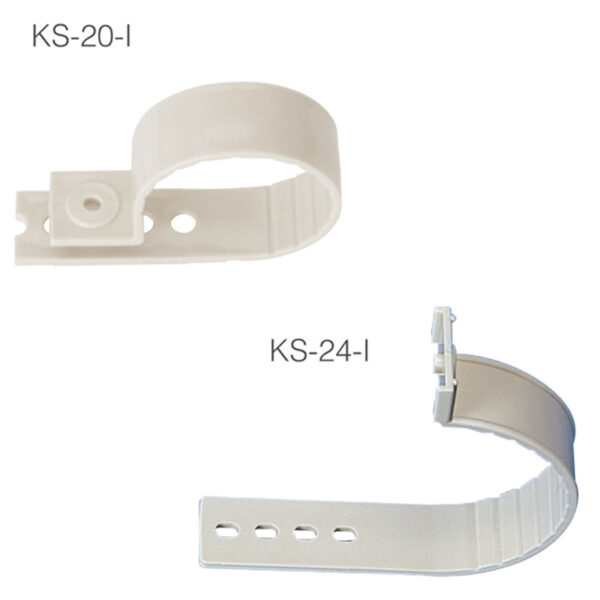

KS Saddle
KS Saddle
The pipe saddle support cradles a pipe and transfers the pipe’s load weight onto a supporting base.
| Code No. | Item No. | Effective Inside Diameter | Pcs/Pkg |
|---|---|---|---|
| C 05012 | KS-20-I | Φ1-5/8″ – Φ1-7/8″ | 1000 |
| C 05102 | KS-24-I | Φ1-1/2″ – Φ2″ | 500 |
Q. What is the KS Single Saddle?

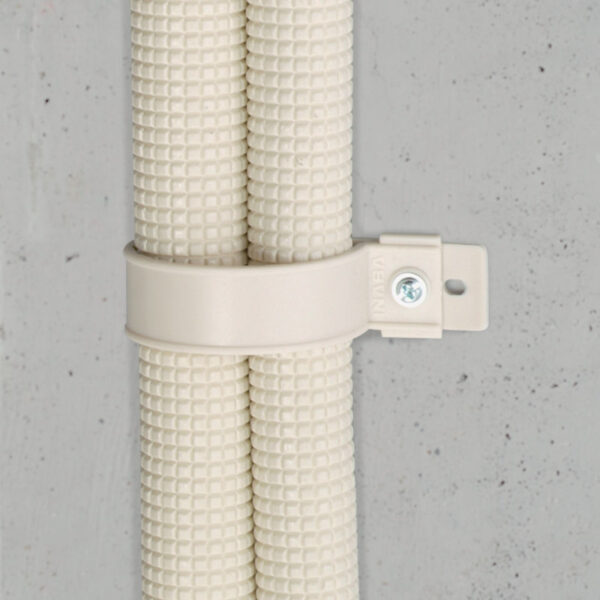

A. The KS Single Saddle is a polyethylene (PE) clamp designed to securely support and organize refrigerant piping in HVAC systems. It is particularly useful for managing linesets in both residential and commercial installations.
Q. What are the available sizes?
A. The KS Single Saddle comes in two sizes_
KS-20-I_Suitable for pipes with an effective inside diameter of 1-5/8″ to 1-7/8″.
KS-24-I_Suitable for pipes with an effective inside diameter of 1-1/2″ to 2″.
Q. What material is used in the KS Single Saddle?
A. It is made from polyethylene (PE), offering durability and resistance to various environmental factors.
Inaba Denko America Inc.
Q. What is the color of the KS Single Saddle?
A. The saddle is available in an ivory color, providing a neutral appearance that blends well with most installations.
Q. How many units are included per package?
A. KS-20-I_1,000 pieces per package.
KS-24-I_500 pieces per package.
Q. Can the KS Single Saddle be used outdoors?
A. Yes, the polyethylene material is suitable for outdoor use, offering resistance to weather conditions.
Q. Is the KS Single Saddle compatible with other Inaba Denko products?
A. Yes, it complements other Inaba Denko pipe support systems and accessories, ensuring a cohesive installation.
