Transitions indoor linesets from horizontal to vertical at outside corners. Screw-free PVC design blends seamlessly with indoor walls.

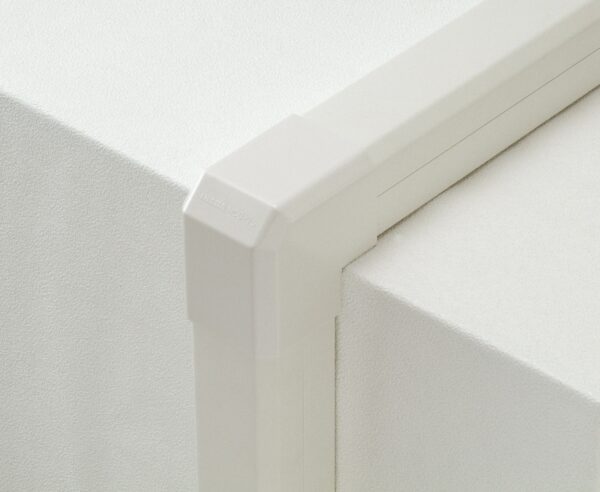

The Slimduct MD 90° Outside Vertical Ell transitions indoor linesets from horizontal to vertical around an exterior corner formed by two connecting interior walls. Designed for both function and aesthetics, it conceals and protects the lineset while providing a clean, professional finish.
Made from durable PVC, its screw-free design allows it to blend seamlessly with indoor walls as part of the Slimduct MD indoor line set cover system.

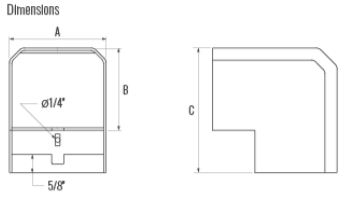

| Code No. | Item No. | A | B | C | D | Pcs/Pkg |
|---|---|---|---|---|---|---|
| C 61325 | MCOM-75-W | 3-1/4″ | 3″ | 4-1/4″ | 3-3/8″ | 20 |
| C 61335 | MCOM-85 | 3-5/8″ | 3-1/4″ | 4-3/8″ | 3-3/4″ | 10 |
A.Slimduct MD is an indoor lineset cover designed to conceal exposed HVAC lines, electrical conduit, gas piping, and other types of indoor piping.
A.No, Slimduct MD is designed exclusively for indoor use. It does not have UV protection and may deteriorate when exposed to sunlight. For outdoor installations, use Slimduct SD, which is UV-stabilized and made for exterior conditions.
A. It features a sleek white finish with no visible screws, offering a clean, modern look that blends seamlessly with any indoor decor.
A. It supports 3/8″ and 1/2″ linesets with 1/2″ insulation, as well as a 5/8″ drain hose.
A. Yes. It comes with 14 different fittings, making it simple to customize and install for various lineset configurations.
