Protects and finishes the top entry point of indoor linesets. Screw-free PVC design blends cleanly with interior walls.

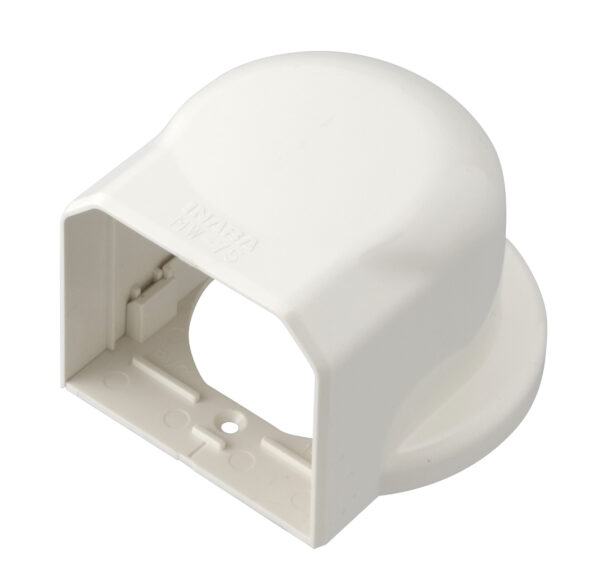

The Slimduct MD Wall Inlet delivers a clean, finished look at the top entry point of indoor lineset installations. Designed to protect and conceal the lineset where it enters the Slimduct MD system, this component features a screw-free PVC construction that blends seamlessly with interior walls.
Ideal for residential applications, the MD Wall Inlet enhances the overall appearance of the installation while maintaining durability and ease of maintenance.
Screw cap is included to cover screw head

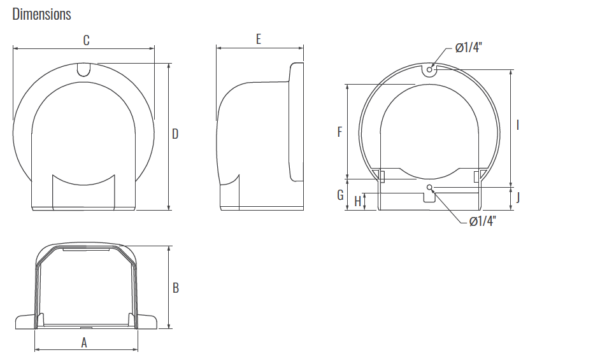

| Code No. | Item No. | A | B | C | D | E | F | G | H | I | J | Pcs/Pkg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C61105 | MW-75-W | 2-3/4″ | 4-1/8″ | 2-7/8″ | 4-5/8″ | 2-7/8″ | 2-7/8″ | 1-1/4″ | 5/8″ | 3-5/8″ | 7/8″ | 20 |
| C61145 | MW-85 | 2-7/8″ | 5-1/8″ | 3″ | 4-7/8″ | 3″ | 3-3/8″ | 1-1/8″ | 5/8″ | 4-1/8″ | 7/8″ | 10 |
A. Slimduct MD is an indoor lineset cover designed to conceal exposed HVAC lines, electrical conduit, gas piping, and other types of indoor piping.
A. No, Slimduct MD is designed exclusively for indoor use. It does not have UV protection and may deteriorate when exposed to sunlight. For outdoor installations, use Slimduct SD, which is UV-stabilized and made for exterior conditions.
A. It features a sleek white finish with no visible screws, offering a clean, modern look that blends seamlessly with any indoor decor.
A. It supports 3/8″ and 1/2″ linesets with 1/2″ insulation, as well as a 5/8″ drain hose.
A. Yes. It comes with 14 different fittings, making it simple to customize and install for various lineset configurations.
