Transitions indoor linesets at a 45° angle with a clean, screw-free finish. Durable PVC design blends with interior walls for a polished look.

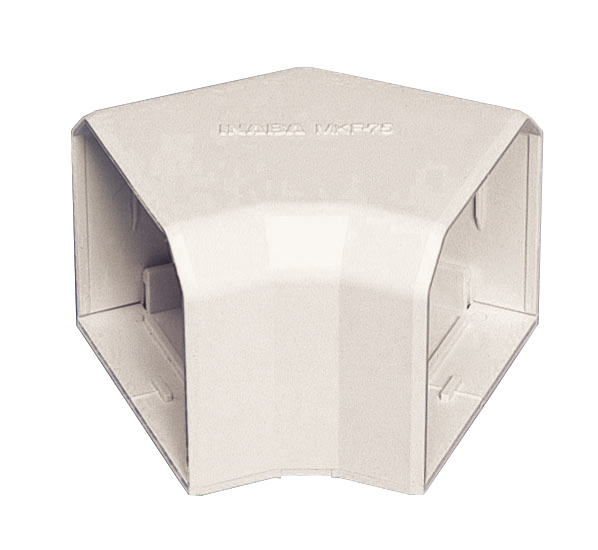

The Slimduct MD 45° Flat Ell allows for smooth transitions of linesets from horizontal to vertical at a 45-degree angle. Designed for clean aesthetics and functional protection, it provides a polished finish while maintaining the integrity of the lineset.
Crafted from durable PVC and built without visible screws, it blends seamlessly with indoor walls—making it an ideal component of the Slimduct MD indoor line set cover system for residential applications.

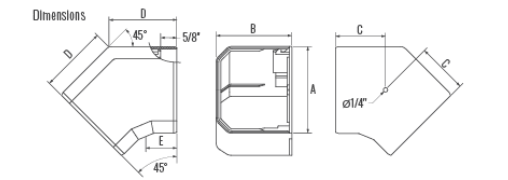

| Code No. | Item No. | A | B | C | D | E | Pcs/Pkg |
|---|---|---|---|---|---|---|---|
| C 61255 | MKF-75-W | 3-1/4″ | 2-7/8″ | 1-7/8″ | 2-1/2″ | 1-1/4″ | 20 |
| C 61265 | MKF-85 | 3-5/8″ | 3″ | 2″ | 2-3/4″ | 1-1/4″ | 10 |
A. Slimduct MD is an indoor lineset cover designed to conceal exposed HVAC lines, electrical conduit, gas piping, and other types of indoor piping.
A. No, Slimduct MD is designed exclusively for indoor use. It does not have UV protection and may deteriorate when exposed to sunlight. For outdoor installations, use Slimduct SD, which is UV-stabilized and made for exterior conditions.
A. It features a sleek white finish with no visible screws, offering a clean, modern look that blends seamlessly with any indoor decor.
A. It supports 3/8″ and 1/2″ linesets with 1/2″ insulation, as well as a 5/8″ drain hose.
A. Yes. It comes with 14 different fittings, making it simple to customize and install for various lineset configurations.
