Covers indoor lineset transitions at a 90° angle with an offset. Screw-free PVC design ensures a clean, seamless indoor finish.
The Slimduct MD 90° Twist Elbow is designed to cover indoor linesets transitioning from horizontal to vertical at a 90° angle with an offset. It provides both protection and a clean, finished appearance, ideal for maintaining a polished look in residential installations.
Made from durable PVC and featuring a screw-free design, this elbow integrates seamlessly with interior walls as part of the Slimduct MD indoor line set cover system.

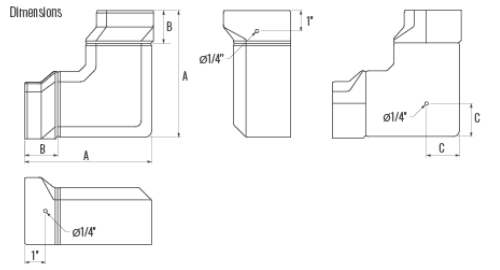

| Code No. | Item No. | A | B | C | Pcs/Pkg |
|---|---|---|---|---|---|
| C 61135 | MN-75-W | 6-1/8″ | 1-5/8″ | 1-5/8″ | 5 |
| C 61565 | MN-85 | 6-3/4″ | 1-7/5″ | 1-7/5″ | 5 |
A. Slimduct MD is an indoor lineset cover designed to conceal exposed HVAC lines, electrical conduit, gas piping, and other types of indoor piping.
A. No, Slimduct MD is designed exclusively for indoor use. It does not have UV protection and may deteriorate when exposed to sunlight. For outdoor installations, use Slimduct SD, which is UV-stabilized and made for exterior conditions.
A. It features a sleek white finish with no visible screws, offering a clean, modern look that blends seamlessly with any indoor decor.
A. It supports 3/8″ and 1/2″ linesets with 1/2″ insulation, as well as a 5/8″ drain hose.
A. Yes. It comes with 14 different fittings, making it simple to customize and install for various lineset configurations.
