Protects indoor linesets where they exit from ceiling-mounted units. Screw-free PVC design provides a clean, seamless finish.

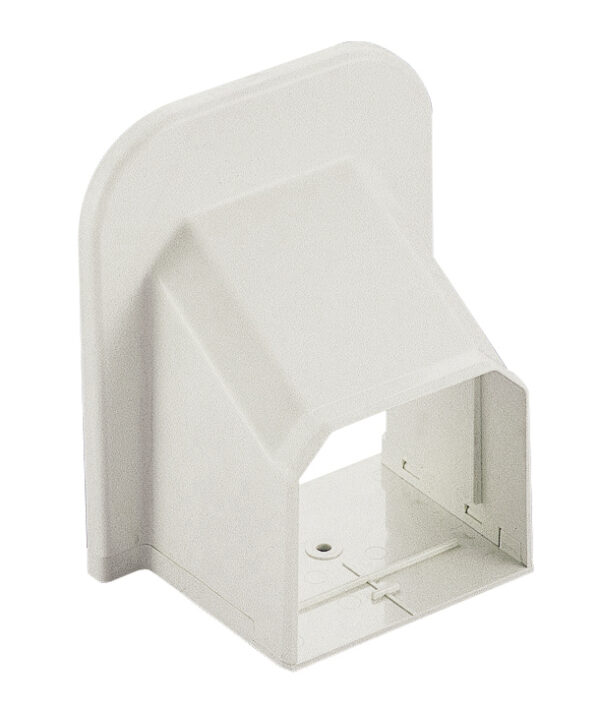

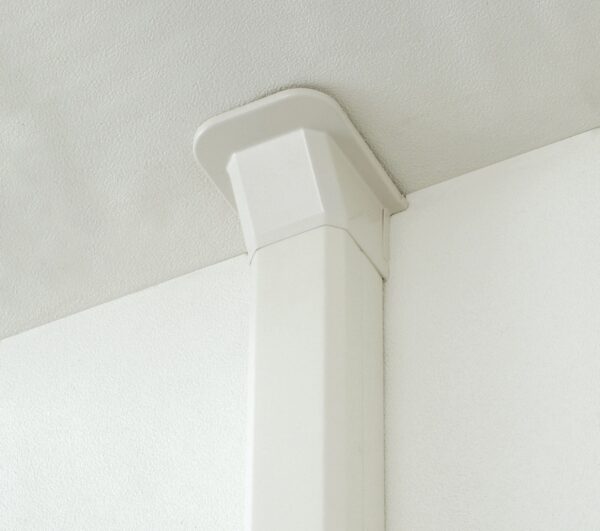

The Slimduct MD Soffit Inlet protects indoor linesets where they exit from ceiling-mounted units, providing a clean, professional finish in residential applications. Ideal for systems installed above the ceiling, it conceals and secures the lineset at the top end of the installation.
Crafted from durable PVC with a screw-free design, it integrates seamlessly with interior walls and ceilings as part of the Slimduct MD indoor line set cover system.

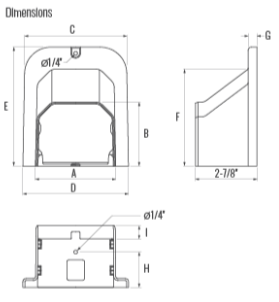

| Code No. | Item No. | A | B | C | D | E | F | G | H | I | Pcs/Pkg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C 61805 | MP-75-W | 3-1/4″ | 2-3/4″ | 4-3/8″ | 4-3/8″ | 5-1/4″ | 4-1/8″ | 3/8″ | 1-5/8″ | 5/8″ | 20 |
| C 61815 | MP-85 | 3-5/8″ | 2-7/8″ | 4-5/8″ | 4-3/4″ | 5-3/8″ | 4-3/8″ | 1/2″ | 1-5/8″ | 5/8″ | 10 |
A. Slimduct MD is an indoor lineset cover designed to conceal exposed HVAC lines, electrical conduit, gas piping, and other types of indoor piping.
A. No, Slimduct MD is designed exclusively for indoor use. It does not have UV protection and may deteriorate when exposed to sunlight. For outdoor installations, use Slimduct SD, which is UV-stabilized and made for exterior conditions.
A. It features a sleek white finish with no visible screws, offering a clean, modern look that blends seamlessly with any indoor decor.
A. It supports 3/8″ and 1/2″ linesets with 1/2″ insulation, as well as a 5/8″ drain hose.
A. Yes. It comes with 14 different fittings, making it simple to customize and install for various lineset configurations.
