The Condenser Wall Bracket offers a fast, secure, and stable solution for mounting outdoor mini-split units to a variety of wall structures. Designed with versatility and durability in mind, this bracket ensures optimal support while freeing up ground space and enhancing system performance.
PC-KJ60 Wall Bracket
PC-KJ60 Wall Bracket
The condenser wall bracket provides a fast, secure and stable way to mount an outdoor mini-split unit to multiple types of wall structures.

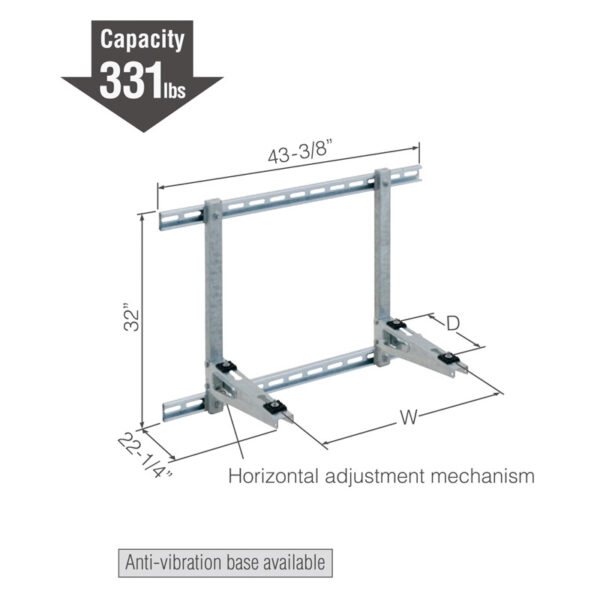

Anti-Vibration Base Available Capacity: 331 lbs.
| Use | Code No. | Item No. | A/C applicable Size | Min. lot |
|---|---|---|---|---|
| For Wall | C 25171 | PC-KJ60 | W: 15-3/4″ – 39-3/8″, D: 11-7/8″ – 17″ | 1 |
Q. What is the PC-KJ60 Wall Bracket used for?
A. The PC-KJ60 Wall Bracket is designed to securely mount air conditioning condenser units on exterior walls. This elevation helps protect the units from ground-level hazards such as debris, flooding, or pests, while also improving airflow around the condenser for optimal performance.
Q. What materials are used in the construction of the bracket?
A. The bracket is constructed from heavy-duty steel and features a hot-dip galvanized finish. This combination provides durability and resistance to corrosion, ensuring long-term outdoor use.
Q. What are the dimensions of the bracket?
A. Width (W)_Adjustable from 15-3/4″ to 39-3/8″
Depth (D)_Adjustable from 11-7/8″ to 17″
Q. Is the bracket compatible with all condenser units?
A. The adjustable width and depth make the bracket compatible with a wide range of condenser unit sizes. However, it’s essential to ensure that the unit’s weight does not exceed the bracket’s capacity.
Q. How many brackets are included per package?
A. Each package contains 1 unit of the PC-KJ60 Wall Bracket.
