PC-NJ30 Wall Bracket




PC-NJ30 Wall Bracket
The slab stand raises the condenser up above a flat surface.
The slab stand raises the condenser up above a flat surface.
Capacity: 440 lbs.
- Anti-slip rubber feet
- Galvanized or powder coat finish
- Height 11-7/8″
What is the PC-NJ63 Condenser Slab Stand used for?
The PC-NJ63 is a heavy-duty galvanized steel stand designed to elevate air conditioning condenser units off the ground. This elevation enhances airflow, prevents debris accumulation, and protects the unit from potential water damage.
What is the weight capacity of the PC-NJ63 stand?
The stand can support condenser units weighing up to 440 lbs, making it suitable for a wide range of residential and commercial HVAC applications.

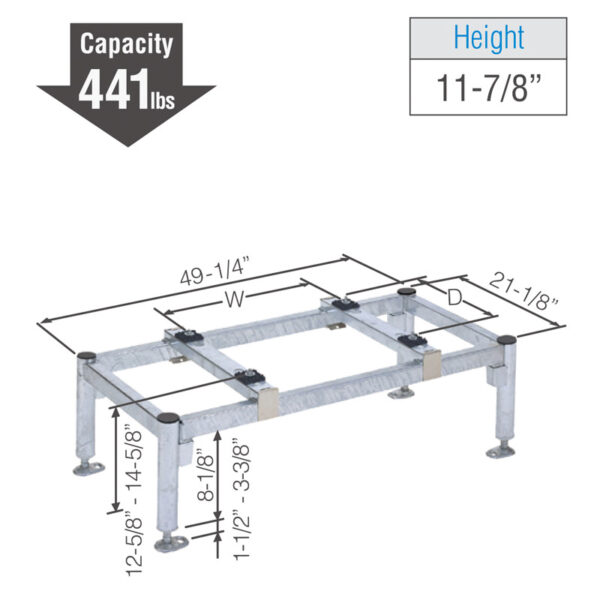

What are the dimensions of the PC-NJ63 stand?
Width (W)_Adjustable from 15-3/4″ to 39-7/8″
Depth (D)_Adjustable from 10-3/4″ to 17″
What materials and finishes are used in the PC-NJ63 stand?
The stand is constructed from galvanized steel, providing durability and resistance to corrosion. It is available with either a galvanized or powder-coated finish, offering additional protection against environmental elements.
Does the PC-NJ63 stand have anti-slip features?
Yes, the stand is equipped with anti-slip rubber feet on each leg. These feet provide additional stability and prevent the stand from shifting or sliding on smooth surfaces.
Where can I purchase the PC-NJ63 Condenser Slab Stand?
The PC-NJ63 is available for purchase through Inaba Denko America’s official website and authorized distributors. It is also available through RectorSeal under Part #87746
