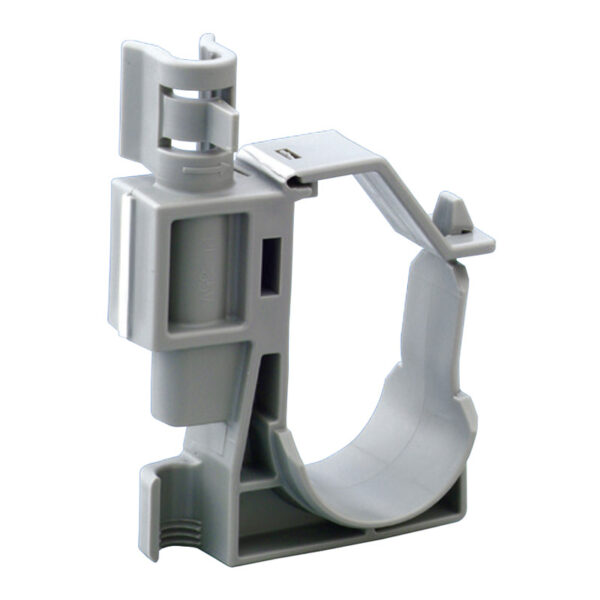

The PipeHook version of SuperLock offers quick, secure support for insulated pipes in HVAC systems. Featuring a one-touch clip for fast installation on 3/8″ threaded rods, it safely holds piping without compressing insulation, ensuring clean and efficient routing. Ideal for both new installs and retrofits.
PL Pipehook
PL Pipehook

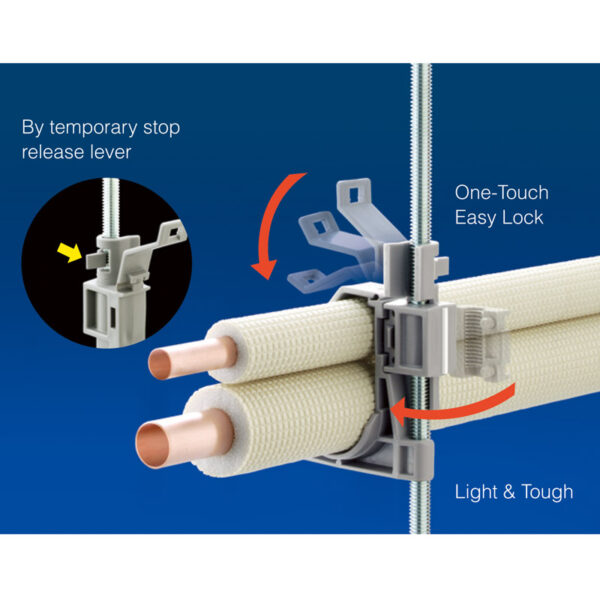

Quick-install pipe hook hanger support with one-touch clip. Secures insulated pipes without compression. Fits 3/8″ threaded rod for clean HVAC installations.
– Supports pipe by attaching onto 3/8″ threaded rod.

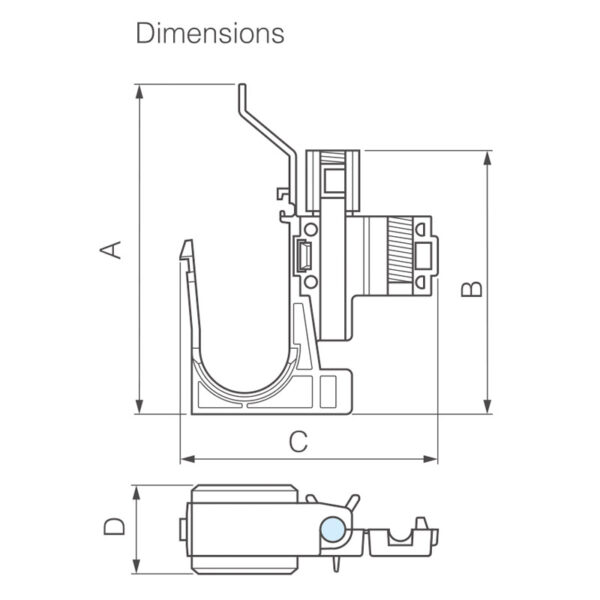

| Code No. | Item No. | Dimensions A | Dimensions B | Dimensions C | Dimensions D | Allowable static load | Temperature range | Material | Color | Pcs/Pkg |
|---|---|---|---|---|---|---|---|---|---|---|
| C 60180 | PL-24V | 4-5/8″ | 3-3/4″ | 4″ | 1-3/8′ | 74.5N(17lbs) | 32°F-140°F | PP | Gray | 100 |
| C 60190 | PL-35V | 5″ | 4″ | 4-1/8″ | 1-3/8″ | 74.5N(17lbs) | 32°F-140°F | PP | Gray |
Q. Can SuperLock be used to support anything other than refrigerant piping?
A. Yes, While SuperLock was designed for HVAC piping, its quality construction, durability and weight capacity make it perfect for many other products such as plumbing piping and electrical conduit.
Q. What is the allowable static load of the SRV?
A. The SRV supports an allowable static load of 44lbs (20kg)
Q. Is the SRV corrosion-resistant?
A. Yes, the body’s electro-galvanized Unichrome plating and stainless steel springs ensure high resistance to corrosion, making it suitable for long-term indoor or protected outdoor use.
