Secure and protect rooftop linesets with the Slimduct RD Lineset Support Strut—an efficient, cost-effective solution for organizing and stabilizing linesets inside commercial line set covers. Designed for VRV/VRF systems, this support strut holds multiple linesets in place, helping maintain a clean layout and preventing sagging or shifting. Easy to install and fully configurable to any orientation, it enhances both performance and appearance of exposed commercial HVAC installations.
SKU
RDK-300-ZA
Categories Commercial Cover, Commercial Metal, Lineset / Cover
Tags commercial lineset cover, lineset support strut, metal lineset cover
Brand: Slimduct RD
RDK Lineset Support Strut




SKU
RDK-300-ZA
Categories Commercial Cover, Commercial Metal, Lineset / Cover
Tags commercial lineset cover, lineset support strut, metal lineset cover
Brand: Slimduct RD
RDK Lineset Support Strut

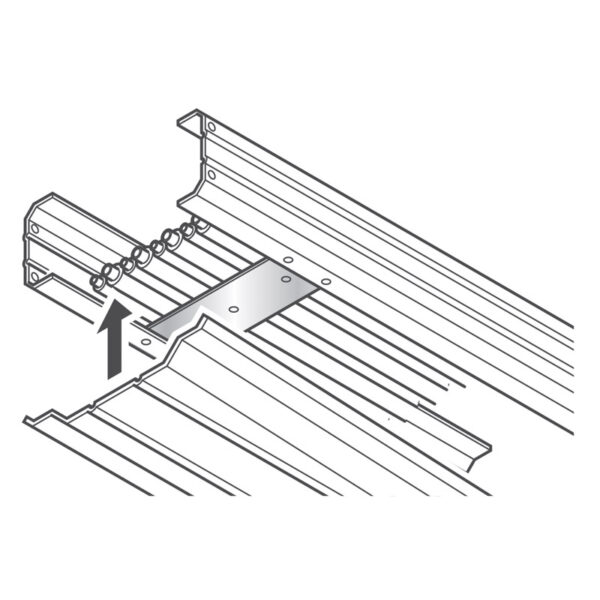

Supports and secures linesets inside Slimduct RD. Cost-effective solution for rooftop VRV/VRF layouts. Easy to install and adjustable to any angle.
Salt Resistant, Attractive, Easy to Assemble, Multiple Applications, Durable

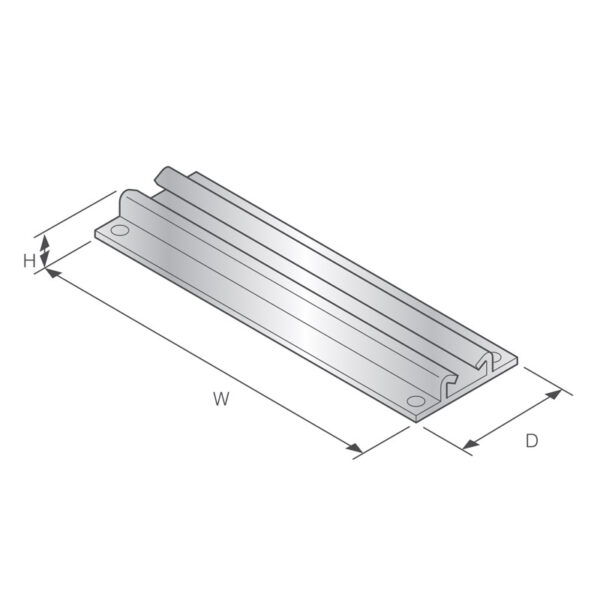

Code No. | Item No. | Compliant Duct Size | W | D | H | Pcs/Pkg |
---|---|---|---|---|---|---|
C 74865 | RDK-300-ZA | 300(H) | 10-1/2″ | 3-1/4″ | 5/8″ | 2 |
C 74885 | RDK-450-ZA | 450(H) | 16-1/2″ | 3-1/4″ | 5/8″ | 2 |
C 74845 | RDK-600-ZA | 600(H) | 22-3/8″ | 3-1/4″ | 5/8″ | 1 |
Q. Can this be used in soil affected by salinity?
A. SLIMDUCT RD has a corrosion resistant coating that may be used in many different environments. Please refer to the Instruction Manual for details.
Q. Can the standard type withstand a person’s weight? Can it act as a passage?
A . The standard type is not designed to be load-bearing. There is a walkway type designed to bear the weight of an average person. However, it is only meant to be used as a temporary path for maintenance purposes and not as a normal walkway.
Q.The surface is starting to rust. Is it not resistant to corrosion?
A . Marks and the surface of cuts may develop rust, but over time, the layers of zinc protective coating will conceal the rusty edges. Please refer to the Product Catalog or Instruction Manual for details.
Q.The surface is starting to rust. Is it not resistant to corrosion?
A . It is corrosion resistant but not corrosion proof. Scratched on the surface made during the installation a nd regular use may cause rust to appear prematurely. Additionally, over many years, the layers of zinc protective coating will degrade and rust may appear. Please refer to the Product Catalog or Instruction Manual for details.
Q. I want to switch from the standard type to the walkway type. Can I just change out the cover?
A . No. The supports will have to be upgraded to the heavier-duty types to support the additional weight.
Q.What kind of brackets should I use to mount it on the wall
A . Please use the S Type RZM Bracket and RZB Riser. When doing the RD-150 type installation, please use the 300 S Type or other brackets (such as RZW) used for mounting to the wall. Please do not use a bracket that is longer than the S type because it will lose its center balance on the wall and problems resulting from the installation may arise. Please use an S Type or some other bracket meant for the wall.
Q. Is it possible to buy just a reinforcement plate?
A . Yes. Please contact us or a nearest dealer.
Q. Is it possible to buy just a reinforcement plate?
A . Yes. Please contact Inaba Denko-America or your nearest dealer.
Q. Do I need a wall plate or wall sleeve?
A . Generally speaking, yes, it is necessary. A wall plate or wall sleeve is used to prevent and dispose of rainwater penetrating the building. You can do without a wall plate or wall sleeve by disposing of water in other ways such as creating a chamber box.
Q. If I install a standing Wall Sleeve or Wall Plate, will it completely stop the water?
A . If it is installed as written in the Instruction Manual, then normally the rainwater can be stopped from turning into standing water. However, there is no guarantee that the water can be stopped in cases of emergency. The wall plate has been subjected to the JIS C 0920, a standard for testing standing water, and have confirmed that there are no signs of water penetration when properly using the plate.
Q. If I install a standing Wall Sleeve or Wall Plate, will it completely stop the water?
A . If it is installed as per the Instruction Manual, the standing water can be prevented. However, there is no guarantee of that in all cases. The wall plate has been tested and confirmed that there were no signs of water penetration when installed properly.
Q. What should I know when cutting a straight line duct?
A . Please use a high-speed cutter (nippers, snips, cutting wheel, etc.). If it is larger than the 450 type, we recommend using a cutting wheel. To prevent the cut surface from corroding, make sure after using a file to deburr the cut edge, apply an anti-rust treatment (a Zn-Al type or zinc-rich paint).
