Slimduct RD Walkway Cover

Designed for VRF/VRV systems, the Slimduct RD Walkway Cover protects rooftop linesets while supporting foot traffic. The RDW line features an anti-slip surface for safe maintenance access. With a sleek finish and corrosion-resistant coating, it installs easily and replaces the need for custom ducting.

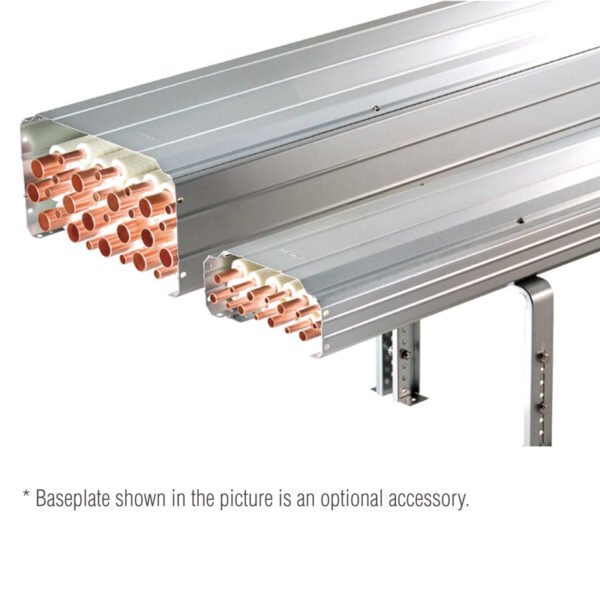

The Slimduct RD Walkway Cover is an exceptional choice for protecting and enclosing multiple linesets in VRF/VRV systems. Designed to withstand the demands of rooftop environments, this lineset cover keeps your lines secure and maintenance staff safe.

This SlimDuct RD lineset cover comes with a unique embossed anti-slip surface. Your personnel can walk on it without damaging the ducts, making it perfect for routine rooftop maintenance.

Not only does this HVAC lineset cover offer ease of installation and adaptability to any layout, but its sleek finish also boosts the overall curb appeal of your rooftop. With its advanced zinc-aluminum-magnesium coating, it provides unmatched corrosion resistance, too.

Request distributor quote

This SlimDuct RD lineset cover provides a blend of functional design and durable materials, making it the ideal solution for a variety of commercial roofing needs. Here are some of its top features:

Attractive Design

The Slimduct RD offers a sleek and professional look, perfect for VRF/VRV systems. It saves space compared to traditional racking systems and blends seamlessly with any building design.

Multiple Applications

This versatile HVAC lineset cover is easily customizable with various fittings like risers, vertical mounts, and under-slab installations. It can be installed in any orientation.

Easy to Assemble

Slimduct RD simplifies installation, requiring no special tools. The product includes all necessary screws, making the setup process quick and efficient.

Durability

Crafted from corrosion-resistant galvanized steel with a zinc, aluminum, and magnesium coating, it resists scratches, abrasion, and rust, even in harsh environments like coastal areas.

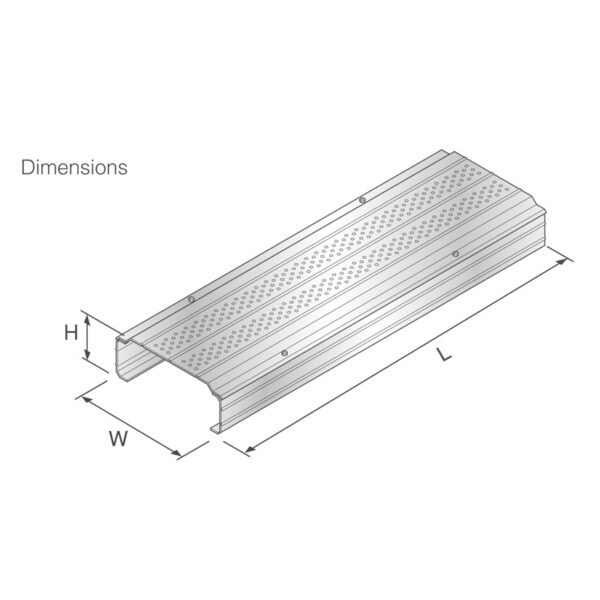

Code No.Item No.Length (L)Width (W)Height (H)Pcs/Pkg
C 88002RDW-300-D-ZA78-3/4″11-7/8″5-3/8″1
C 88092RDW-300-1-D-ZA39-3/8″11-7/8″5-3/8″1
C 88182RDW-300-5-D-ZA19-3/4″11-7/8″5-3/8″1
C 88272RDW-300-3-D-ZA11-7/8″11-7/8″5-3/8″1
C 88042RDW-300H-D-ZA78-3/4″11-7/8″10″1
C 88132RDW-300H-1-D-ZA39-3/8″11-7/8″10″1
C 88222RDW-300H-5-D-ZA19-3/4″11-7/8″10″1
C 88312RDW-300H-3-D_ZA11-7/8″11-7/8″10″1
C 88012RDW-450-D-ZA78-3/4″17-3/4″5-3/8″1
C 88102RDW-450-1-D-ZA39-3/8″17-3/4″5-3/8″1
C 88192RDW-450-5-D-ZA19-3/4″17-3/4″5-3/8″1
C 88282RDW-450-3-D-ZA11-7/8″17-3/4″5-3/8″1
C 88052RDW-450H-D-ZA78-3/4″17-3/4″10″1
C 88142RDW-450H-1-D-ZA39-3/8″17-3/4″10″1
C 88232RDW-450H-5-D-ZA19-3/4″17-3/4″10″1
C 88322RDW-450H-3-D-ZA11-7/8″17-3/4″10″1
C 88022RDW-600-D-ZA78-3/4″23-5/8″5-3/8″1
C 88112RDW-600-1-D-ZA39-3/8″23-5/8″5-3/8″1
C 88202RDW-600-5-D-ZA19-3/4″23-5/8″5-3/8″1
C 88292RDW-600-3-D-ZA11-7/8″23-5/8″5-3/8″1
C 88062RDW-600H-D_ZA78-3/4″23-5/8″10″1
C 88152RDW-600H-1-D-ZA39-3/8″23-5/8″10″1
C 88242RDW-600H-5-D-ZA19-3/4″23-5/8″10″1
C 88332RDW-600H-3-D-ZA11-7/8″23-5/8″10″1
C 88032RDW-900-D-ZA78-3/4″35-1/2″5-3/8″1
C 88122RDW-900-1-D-ZA39-3/8″35-1/2″5-3/8″1
C 88212RDW-900-5-D-ZA19-3/4″35-1/2″5-3/8″1
C 88302RDW-900-3-D-ZA11-7/8″35-1/2″5-3/8″1
C 88072RDW-900H-D-ZA78-3/4″35-1/2″10″1
C 88162RDW-900H-1-D-ZA39-3/8″35-1/2″10″1
C 88252RDW-900H-5-D-ZA19-3/4′35-1/2″10″1
C 88342RDW-900H-3-D-ZA11-7/8″35-1/2″10″1
Material: Highly corrosion-resistant hot-dip galvanized steel shet has a coating layer of zinc, 6% aluminum and 3% magnesium.



Slimduct RD BrochureSpecs and Installation ManualRD Installation PortfoilioSlimduct RD Product PresentationRD Westerville, OH Case StudyRD Raritan School Case StudyRD Allentown, PA Case StudyRD Quincy Jr./High School Case StudyRD Nyack, NY Case Study

FAQs about Slimduct RD Walkway Cover

Q. Can this be used in soil affected by salinity?
A. Yes, the SlimDuct RD lineset cover is suitable for environments with salinity. See the Instruction Manual for specific details.

Q. Can the standard type withstand a person’s weight? Can it act as a passage?
A. The standard type is not load-bearing. For a walkway option, consider the walkway type designed to support an average person for temporary use.

Q. The surface is starting to rust. Is it not resistant to corrosion?
A. While this HVAC lineset cover is corrosion-resistant, it’s not corrosion-proof. Surface scratches and long-term exposure may lead to rust. Refer to the product catalog for more details.

Q. Can I switch from the standard type to the walkway type?
A. No, the supports must be upgraded to a heavier-duty type to accommodate the additional weight of the walkway cover.

Q. What kind of brackets should I use to mount it on the wall?
A. Use the S Type RZM Bracket and RZB Riser. For RD-150 installations, opt for the 300 S Type or other suitable wall-mount brackets.

Q. Is it possible to buy just a reinforcement plate?
A. Yes, you can purchase a reinforcement plate by contacting Inaba Denko America or your nearest dealer.

Q. Do I need a wall plate or a wall sleeve?
A wall plate or sleeve is generally necessary to prevent water penetration. Alternatively, you can use other methods, like a chamber box.

Q. Will a wall sleeve or wall plate stop water completely?
A. When installed according to the manual, it effectively prevents water penetration, though no solution can guarantee 100% protection.

Q. Can I use a free joint in place of a fixed joint?
A. If level with the ground, a free joint can be used, though it’s not recommended for long-term use due to strength concerns.

Q. What should I know when cutting a straight-line duct?
A. Use a high-speed cutter, such as nippers or a cutting wheel, for cuts. Also, apply anti-rust treatment after deburring to prevent corrosion.

Why Choose Inaba Denko

Inaba Denko America specializes in providing high-quality products that combine innovation with durability. Whether it’s a SlimDuct RD lineset cover or any other product, you always get a high-quality product.

Superior Materials

We use premium materials to make sure our products stand the test of time, even in the most demanding conditions.

Expert Craftsmanship

Each Inaba Denko product is meticulously designed and manufactured for optimal performance and ease of use.

Japanese Engineering

We offer a variety of products made using Japanese engineering to meet your specific HVAC project needs.

Reliable Customer Support

Our team is always ready to help you with any queries or customer support required throughout your HVAC project.

Best Used For

SlimDuct RD lineset cover is ideally suited for commercial rooftop applications where protecting and enclosing linesets is essential. Its corrosion-resistant properties and versatile fittings make it perfect for both new builds and retrofits. Whether you’re managing HVAC systems or other mechanical equipment, it offers lasting protection and functionality for all rooftop line set needs.

With its compact design and excellent protection, Slimduct RD is an invaluable addition to any commercial project. It ensures your HVAC systems are secure and accessible for maintenance while enhancing the overall appearance of your rooftop setup.

Order Your SlimDuct RD Lineset Cover Now

At Inaba Denko America, we are here to help you find the right solution for your project. Talk to an expert today to learn how Slimduct RD can enhance your rooftop systems.

Talk to An Expert
