RSB Wall Sleeve

The Slimduct RSB Wall Sleeve pairs with the RWP Wall Flange to seal wall penetrations and protect commercial linesets. Its corrosion-resistant coating ensures long-lasting durability and a clean, professional finish.

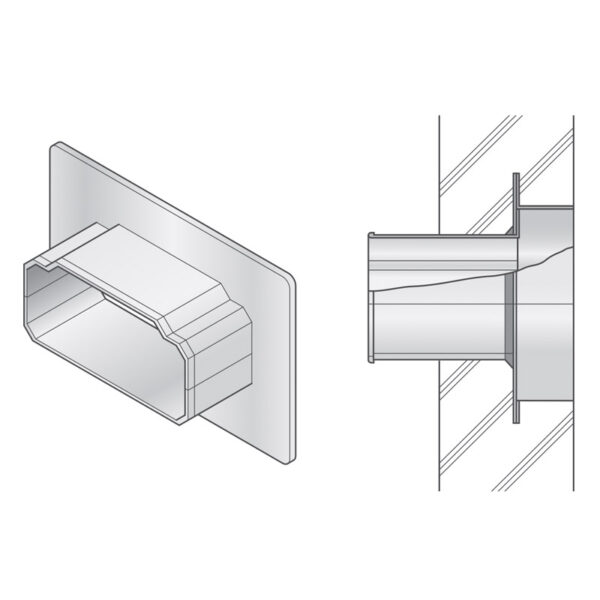

The Slimduct RSB HVAC Wall Sleeve is designed to pair with the RWP Wall Flange, creating a sealed wall penetration for RD lineset installations. It allows commercial VRF/VRV linesets to pass through walls while protecting the structure and maintaining system integrity.

As part of the Slimduct RD system, it contributes to a clean, professional finish in exposed applications. This line set wall sleeve has an advanced zinc-aluminum-magnesium coating that resists corrosion and scratches, lasts long-term, and offers a polished appearance in harsh outdoor environments.

Request distributor quote

Attractive

This line set wall sleeve encloses the multiple lines used by variable refrigerant flow/volume (VRF/VRV) multi-split systems. Requiring less space than traditional racking or jacketing systems, its compact design delivers a clean, professional, and finished look to any rooftop project.

Multiple Applications

A wide array of fittings, including risers, vertical mountings, and under-slab mountings, is readily available to easily customize while on the job site, during the installation process. This HVAC wall sleeve can also be installed in any orientation.

Easy to Assemble

This line set wall sleeve is engineered to make installation a time-saving process. No special tools are required to assemble and connect the interlocking covers. The screws needed are included with the product.

Durability

Fabricated from sheets of high-grade, corrosion-resistant, and hot-dipped galvanized steel, Slimduct RD is coated with zinc, aluminum, and magnesium. This scratch, abrasion, and corrosion-resistant coating offers better protection than stainless steel, even in highly corrosive environments such as coastal areas.

Note: Always use this lineset wall sleeve in combination with RWP.

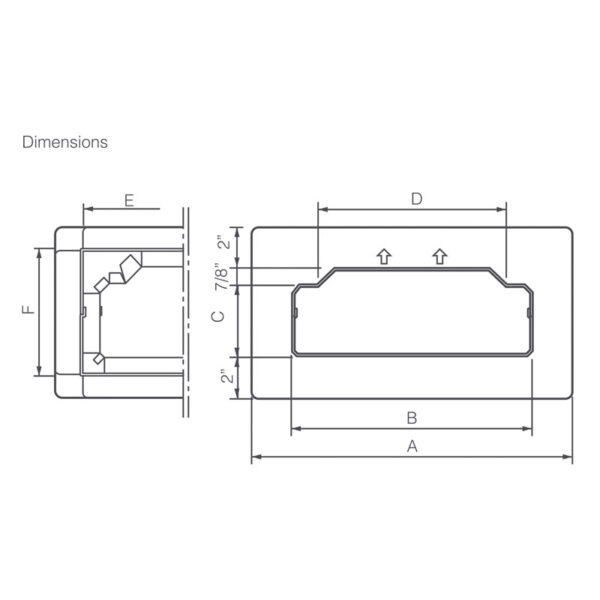

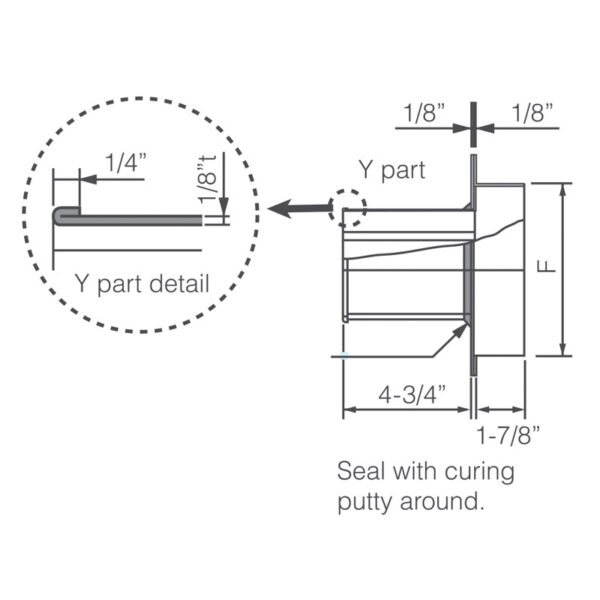

Code No.Item No.ABCDEFPcs/Pkg
C 85835 RSB-300-ZA 15-1/2″ 11-1/2″ 3-1/2″ 9″ 13-1/8″ 5-7/8″ 1
C 85845 RSB-450-ZA 21-3/8″ 17-3/8″ 3-1/2″ 15″ 19″ 5-7/8″ 1
C 85855 RSB-600-ZA 27-1/4″ 23-3/8″ 3-1/2″ 20-7/8″ 24-7/8″ 5-7/8″ 1
C 84635 RSB-300H-ZA 15-1/2″ 11-1/2″ 8-1/4′ 9″ 13-1/8″ 10-5/8″ 1
C 85865 RSB-450H-ZA 21-3/8″ 17-3/8″ 8-1/4″ 15″ 19″ 10-5/8″ 1
C 85875 RSB-600H-ZA 27-1/4″ 23-3/8″ 8-1/4″ 20-7/8″ 24-7/8″ 10-5/8″ 1
Material: Highly corrosion-resistant hot-dip galvanized steel shet has a coating layer of zinc, 6% aluminum and 3% magnesium.
Slimduct RD BrochureSpecs and Installation ManualRD Installation PortfoilioSlimduct RD Product PresentationRD Westerville, OH Case StudyRD Raritan School Case StudyRD Allentown, PA Case StudyRD Quincy Jr./High School Case StudyRD Nyack, NY Case Study

Q. Can this be used in soil affected by salinity?
A. Yes, please see the Instruction Manual for details.

Q. Can the standard type withstand a person’s weight? Can it be used as a passage?
A. No, the standard lineset wall sleeve is not load-bearing. A walkway type is available and is designed to support the weight of an average person for temporary maintenance access only. It is not intended for regular walkway use.

Q. The surface is rusty. Is it not resistant to corrosion?
A. It is corrosion-resistant, but it is not corrosion-proof. Surface scratches from installation or regular use may cause rust to appear earlier. Over time, the protective zinc layers can also wear down. Please refer to the Product Catalog or Instruction Manual for details.

Q. I want to switch from the standard type to the walkway. Can I just change the cover?
A. No, the supports also need to be upgraded to heavier-duty types to handle the added load.

Q. What brackets should I use to mount it on the wall?
A. Use the S Type RZM Bracket and RZB Riser. For RD-150 type installations, use the 300 S Type or another wall-mount bracket such as RZW. Do not use a bracket longer than the S Type, as it can affect wall balance and lead to installation problems.

Q. Is it possible to buy only a reinforcement plate?
A. Yes, please Contact Inaba Denko America or your nearest dealer.

Q. Do I need a wall plate or a wall sleeve?
A. In most cases, yes. A wall plate or wall sleeve helps prevent rainwater from entering the building and supports water drainage. Other water management methods, such as creating a chamber box, may also be used.

Q. If I install a standing Wall Sleeve or Wall Plate, will it completely stop water?
A. When installed according to the Instruction Manual, it can help prevent standing water from entering. However, this cannot be guaranteed in every condition. Testing has confirmed that the wall plate showed no signs of water penetration when installed correctly.

Q. Can I use a free joint in place of a fixed joint?
A. Yes, if it sits level to the ground. However, it is not recommended because the strength after installation can decrease over time. For a better fit, avoid continuous use of free joints and corner connections.

Q. What should I know when cutting a straight-line duct?
A. Use a high-speed cutter like nippers, snips or a cutting wheel. For sizes larger than 450 type, a cutting wheel is recommended. After cutting, deburr the edge with a file and apply anti-rust treatment such as Zn-Al type or zinc-rich paint to help protect the cut surface.

Why Choose Inaba Denko

Inaba Denko builds HVAC accessories for clean installations, long service life, and job site efficiency. The RSB line set wall sleeve reflects that focus with reliable performance and a professional finish.

Japanese Engineering

Inaba Denko America products are backed by Japanese engineering known for precision, consistency, and product quality. This gives contractors and distributors a line set wall sleeve they can trust across demanding commercial applications.

Built for Harsh Conditions

The zinc-aluminum-magnesium coating helps this HVAC wall sleeve resist corrosion, scratches, and wear. It performs well in exposed environments, including coastal and high-moisture areas.

Clean, Professional Finish

The Slimduct RSB Wall Sleeve supports a neat wall penetration and a polished finished look. It helps organize exposed linesets while improving the appearance of VRF and VRV installations.

Faster Installation

This line set wall sleeve is designed for straightforward assembly with interlocking parts and included screws. It helps crews move faster on site without needing special tools.

System Compatibility

The RSB HVAC wall sleeve is made to pair with the RWP Wall Flange as part of the Slimduct RD system. This compatibility supports a safer fit and consistent installation result.

Best Used For

The RSB lineset wall sleeve is ideal for commercial VRF and VRV installations where multiple linesets need to pass through walls cleanly. Its compact design reduces clutter while providing a polished, professional appearance.

It is also suited for outdoor and coastal environments thanks to its corrosion-resistant zinc-aluminum-magnesium coating. This HVAC wall sleeve works well in rooftop, vertical, and under-slab applications, supporting versatile installation needs.

Get Your HVAC Wall Sleeve Today

Upgrade your VRF or VRV installation with the RSB line set wall sleeve for a clean, durable, and professional solution. Contact Inaba Denko America or your nearest distributor to request a quote and secure your supply.

Talk to An Expert
