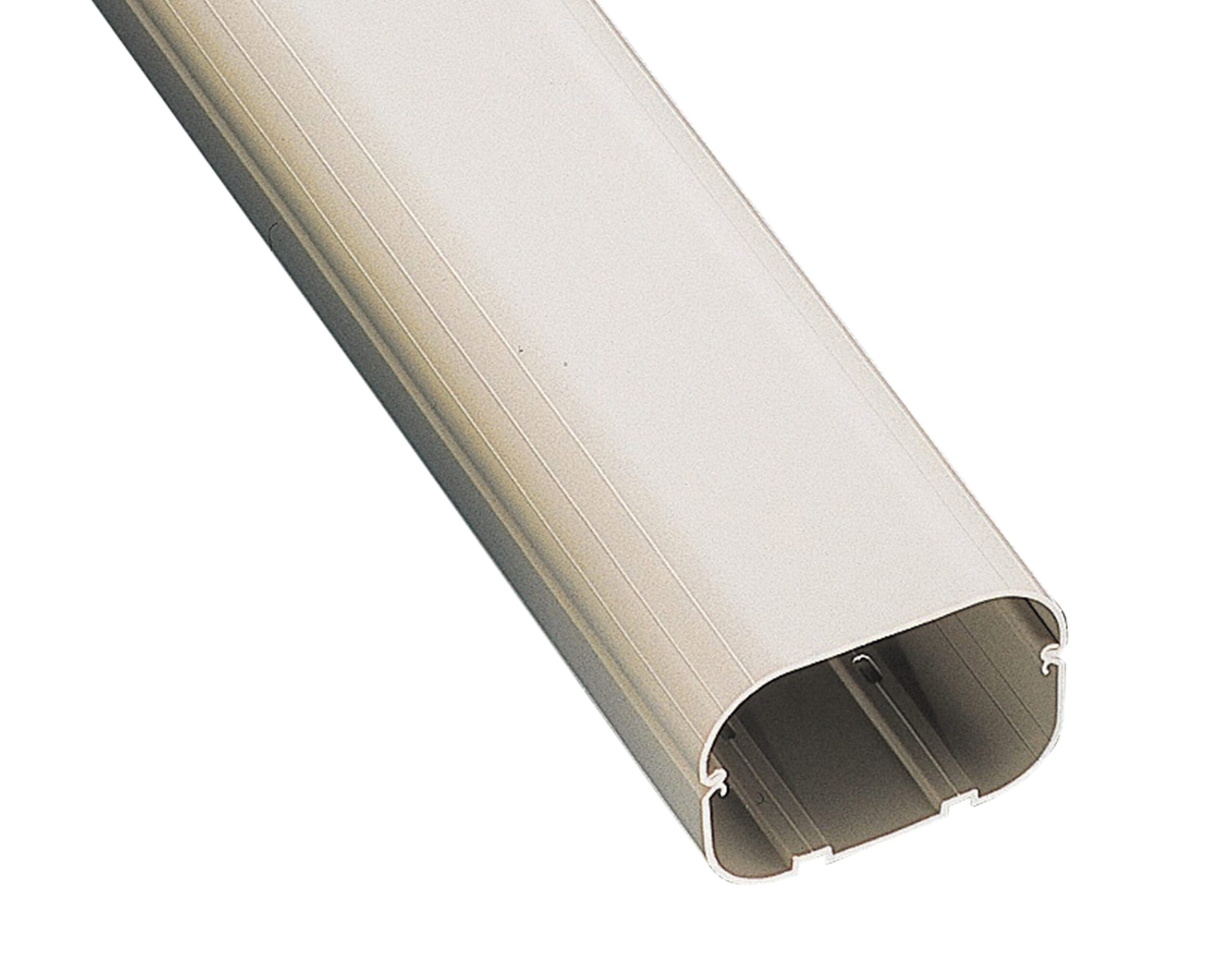

The Slimduct SD Straight Duct is designed to conceal and protect linesets installed along the exterior sidewall of a property. Made from high-grade, weather-resistant PVC, it offers long-term durability while shielding linesets from environmental exposure, vandalism, and pest damage. Its sleek design delivers a clean, professional finish to both residential and commercial installations, helping to maintain system performance and aesthetics. Ideal for new construction and retrofit projects alike.
SD Straight Duct
SD Straight Duct

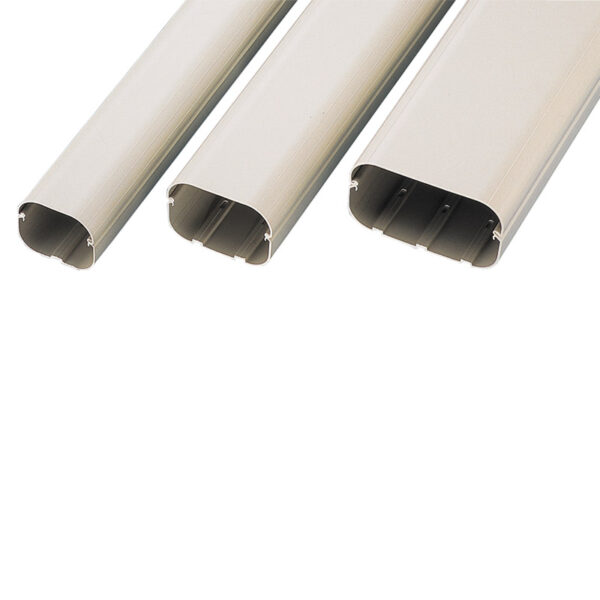

The Slimduct SD Straight Duct neatly covers exposed linesets mounted on walls, providing a clean, professional appearance. Ideal for protecting and organizing piping in residential applications.
- Premium Protection: Constructed from high-grade UV-resistant and flame-retardant PVC, it provides line set protection from damage caused by weather, physical contact, and pests.
- Aesthetic Mini Split Line Set Cover: The gloss finish comes in four colors: white, ivory, brown, and black to complement the aesthetics of any residential or commercial building.
- Easy Assembly: The straight duct cover clips to the top of the base tightly. The additional fitting tops are secured with stainless steel screws, allowing for a quick, easy and secure assembly.
- Temperature Range: – 4°F to 140°F
- Length: 78-3/4″

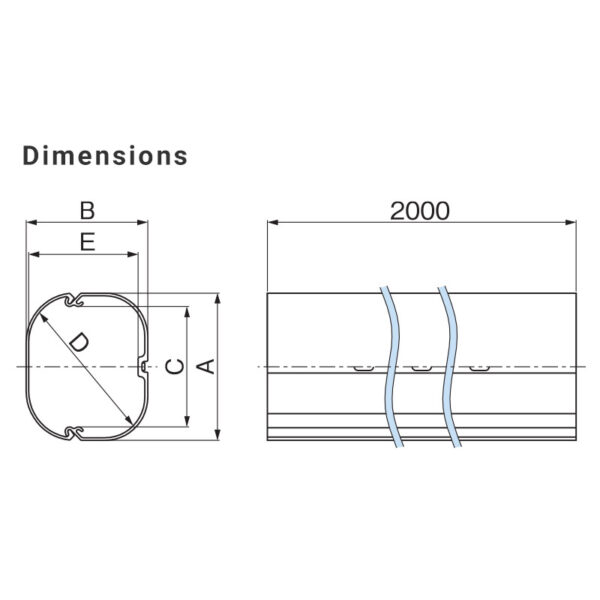

| Code No. | Item No. | A | B | C | D | E | Pcs/Bundle |
|---|---|---|---|---|---|---|---|
| C 0402 | SD-77 | 3″ | 2-1/2″ | 2-3/8″ | 2-3/8″ | 3″ | 15 |
| C 0403 | SD-100 | 4″ | 2-7/8″ | 3-1/2″ | 3-1/2″ | 4″ | 10 |
| C 0404 | SD-140 | 5-1/2″ | 3-1/4″ | 4-7/8″ | 4-7/8″ | 5-3/8″ | 5 |
Q.What kind of caulking agent should I use?
A. Please use a silicone caulking with a strong UV resistance.
Q. To use as a reference when cutting the straight duct, what are the measurements of the product?
A. The center of the straight duct hole for the screw fitting (half open hole) is 100mm or approximately 4″ pitch (both ends are about 55mm or approximately 2″).
Q. What are the measurements of the product?
A. SLIMDUCT SD is available in three size, 3″, 4″. 5-1/2″
Q. Can SLIMDUCT SD also be used indoors?
A. Yes. It will not negatively affect the aesthetic of the room when used indoors.
Q. What can I do to mount it on the wall?
A. Use the appropriate hardware based on the substrate to which it will be mounted.
Q. Can SLIMDUCT SD be used with the SLIMDUCT PD (separate series)?
A. Yes, it can. Please use the PD-SD Coupler (PSDR) from the SLIMDUCT PD series.
Q. Can I use SLIMDUCT SD for protecting things other than air conditioning pipes?
A. Yes, it may be used for other kinds of pipes as long as the product is being used as directed by the Instruction Manual.
Q. Can I use SLIMDUCT SD for other things besides a lineset?
A. Yes, it may be used for other kinds of items as long as the product is being installed as per the installation manual.
Q. Do I need any specific tools to install the product?
A. No, specialized tools are not necessary.
Q. What is the best way to make a straight cut?
A. While many tools are available to use, we recommend the Slimduct Cutter (VD-2100) available, which is specially designed to cut Slimduct SD.
Q. Can I install the product in combination with another company’s lineset cover?
A. Please use only other Inaba Denko products for installation. Our warranty does not cover outside products.
Q. I installed the lineset cover outside and it deformed. What should I do?
A. If the product sustains excessive heat reflection, etc., there is a possibility it will deform. Also, when installed horizontally, if the inner piping of the product is not properly supported, it could deform from the weight of the piping. Please refer to the Instruction Manual for details.
Q. What are the protrusions inside the SW and the SK?
A. The protrusions (pins) are meant to be inserted into a hole in the duct covers to prevent the duct cover from slipping downward in a vertical application. If those protrusions are not needed, they may be removed.
Caution:
- Slimduct SD is not waterproof. To waterproof, seal all longitudinal and lateral seams, screw heads and wall penetration with weatherproof sealant or putty.
- Slimduct SD duct and fittings are suitable for use and storange within a temperature range of -4F to 140F. Deformation may occur at temperatures exceeding 140F. Protect Slimduct installation from direct and radiant heat.
- Use of impact screwdrivers to attach Slimduct to wall and to tighten fittings is tightly discouraged as they can easily over-tighten the screws and crack the PVC material. Use hand screwdrivers for precise torque control.
- Use SL-300 Strap Kit to retain lineset inside duct.
