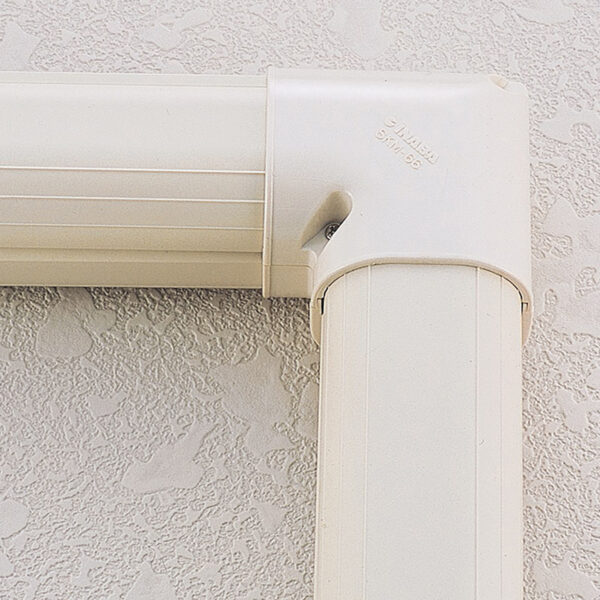

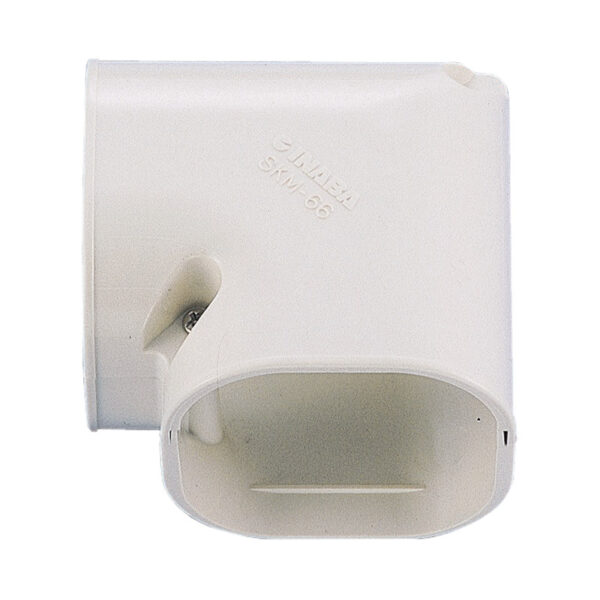

The Slimduct SKM Mini Flat Ell guides linesets around 90° turns on exterior sidewalls in compact installations. Made from high-grade PVC, it offers durable protection against weather, vandalism, and pest damage while maintaining a clean, professional appearance for small-scale HVAC applications.
SKM Mini Flat Ell
SKM Mini Flat Ell
Guides linesets around 90° turns in compact spaces. Made of high-grade PVC for durable, weather-resistant protection.
- Long-lasting Protection: Slimduct SD is constructed from a special high-grade PVC for superior UV and weather resistance, with a temperature range of -4°F to 140°F
- Architectural Linesets Cover: Slimduct conceals and protects exposed linesets and is suitable for any ductless and unitary HVAC systems.
- Flame Retardant: Slimduct is made from flame retardant materials.
- Slip Prevention: The wall inlet cover includes a pin to prevent the duct cover from slipping or sliding down.

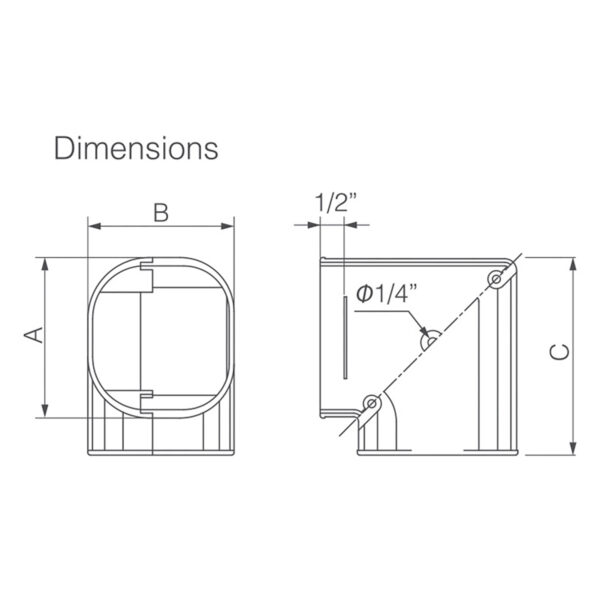

| Code No. | Item No. | A | B | C | Pcs/Pkg |
|---|---|---|---|---|---|
| C 7302 | SKM-77 | 3-1/4″ | 2-3/4″ | 3-7/8″ | 20 |
Q. If sealing around joints is required; what kind of sealant should I use?
A. A UV resistant silicone is recommended .
Q. To use as a reference when cutting the straight duct, what are the measurements of the product?
A. The center of the straight duct hole for the screw fitting (half open hole) is 100mm or approximately 4″ pitch (both ends are about 55mm or approximately 2″).
Q. What are the measurements of the product?
A. SLIMDUCT SD is available in three size, 3″, 4″. 5-1/2″
Q. Can SLIMDUCT SD also be used indoors?
A. Yes. It will not negatively affect the aesthetic of the room when used indoors.
Q. What can I do to mount it on the wall?
A. Please use the specified option parts from the Residential Elevating System.
Q. Can SLIMDUCT SD be used with the SLIMDUCT PD (separate series)?
A. Yes, use the PD-SD Coupler (PSDR) from the SLIMDUCT PD series.
Q. Can I use SLIMDUCT SD for other things besides a lineset?
A. Yes, it may be used for other kinds of items as long as the product is being installed as per the installation manual.
Q. Do I need any specific tools to install the product?
A. No, specialized tools are not necessary.
Q. What is the best way to make a straight cut?
A. While many tools are available to use, we recommend the Slimduct cutter (VD-2100) available, which is specially designed to cut SLIMDUCT SD.
Q. Can I install the product in combination with another company’s lineset cover?
A. Please use only other Inaba Denko products for installation. Our warranty does not cover outside products.
Q. I installed the lineset cover outside and it deformed. What should I do?
A. If the product sustains excessive heat reflection, etc., there is a possibility it will deform. Also, when installed horizontally, if the inner piping of the product is not properly supported, it could deform from the weight of the piping. Please refer to the Instruction Manual for details.
Q. What are the protrusions inside the SW and the SK?
A. The protrusions (pins) are meant to be inserted into a hole in the duct covers to prevent the duct cover from slipping downward in a vertical application. If those protrusions are not needed, they may be removed.
