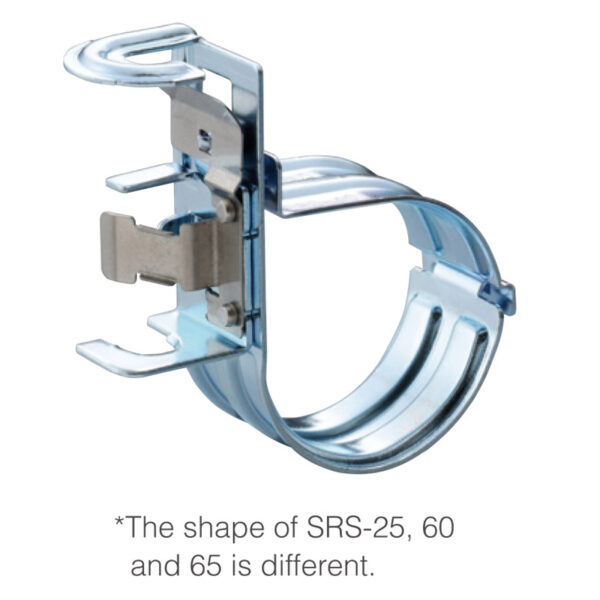

The S-Type Superlock offers quick and easy support for horizontal linesets in HVAC systems. Designed with a one-touch clip, it snaps securely onto 3/8″ threaded rod pipe hangers—no tools needed. Ideal for clean, efficient installations, it keeps linesets stable and properly aligned.
SKU
SRS-25
Categories Horizontal, Pipe Support
Tags Horizontal Pipe Support, pipe hanger, pipe hanger bracket
Brand: SuperLock
SRS SuperLock S Type




SKU
SRS-25
Categories Horizontal, Pipe Support
Tags Horizontal Pipe Support, pipe hanger, pipe hanger bracket
Brand: SuperLock
SRS SuperLock S Type
Quick-mount lineset support for HVAC systems. Snaps onto 3/8″ threaded rod for fast, tool-free installation and secure horizontal alignment.
– SuperLock clamp quickly snaps onto threaded rod. – Hinge mechanism permits temporary fixing. – Easy level adjustment by rotating clamp on threaded rod. Caution: – For indoor use only. – Use only with 3/8″ threaded rod.

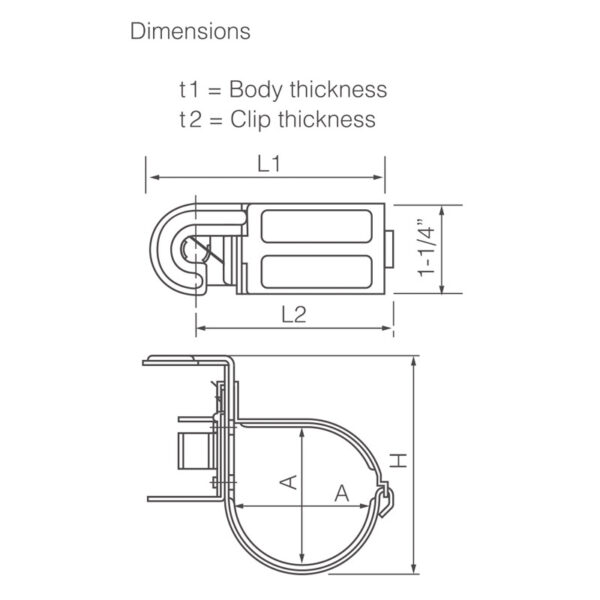

Code No. | Item No. | Allowable static load | Dimensions / L1 | Dimensions / L2 | Dimensions / H | Dimensions / A | Dimensions / Body thickness (t1) | Dimensions / Body thickness (t2) | Pcs/Pkg |
---|---|---|---|---|---|---|---|---|---|
C 55890 | SRS-25 | 196N (44lbs) | 3″ | 2-3/8″ | 3-1/4″ | 1-3/8″ | 0.05″ | 0.04″ | 100 |
C 55930 | SRS-30 | 196N (44lbs) | 3″ | 2-1/2″ | 3-1/4″ | 1-1/2″ | 0.05″ | 0.04″ | 50 |
C 55900 | SRS-35 | 196N (44lbs) | 3-1/4″ | 2-3/4″ | 3-3/8″ | 1-3/4″ | 0.05″ | 0.04″ | 50 |
C 55910 | SRS-40 | 196N (44lbs) | 3-3/8″ | 2-7/8″ | 3-3/8″ | 2″ | 0.05″ | 0.04″ | 50 |
C 55940 | SRS-45 | 196N (44lbs) | 3-5/8″ | 3-1/8″ | 3-1/2″ | 2-1/8″ | 0.05″ | 0.04″ | 50 |
C 55920 | SRS-50 | 196N (44lbs) | 3-9/8″ | 3-3/8″ | 3-5/8″ | 2-3/8″ | 0.06″ | 0.04″ | 50 |
C 55960 | SRS-60 | 196N (44lbs) | 4-1/4″ | 3-3/4″ | 3-7/8″ | 2-3/4″ | 0.06″ | 0.04″ | 50 |
C 55950 | SRS-65 | 196N (44lbs) | 4-3/4″ | 4-1/4″ | 5″ | 3-1/4″ | 0.06″ | 0.04″ | 50 |
Q. Can SuperLock be used to support anything other than refrigerant piping?
A. Yes, While SuperLock was designed for HVAC piping, its quality construction, durability and weight capacity make it perfect for many other products such as plumbing piping and electrical conduit.
Q. What is the allowable static load of the SRV?
A. The SRV supports an allowable static load of 44lbs (20kg)
Q. Is the SRV corrosion-resistant?
A. Yes, the body’s electro-galvanized Unichrome plating and stainless steel springs ensure high resistance to corrosion, making it suitable for long-term indoor or protected outdoor use.
