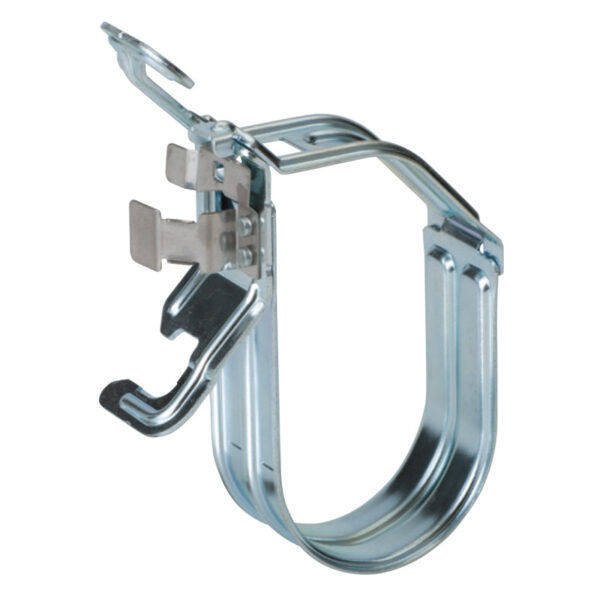

SuperLock makes horizontal lineset installation fast and easy with a one-touch clip that snaps onto any standard 3/8″ threaded rod. It provides secure, stable support for pipes without the need for tools, helping ensure clean and reliable HVAC installations.
SRV SuperLock V Type
SRV SuperLock V Type
SuperLock provides award-winning pipe hanger support for horizontal indoor residential and commercial applications.

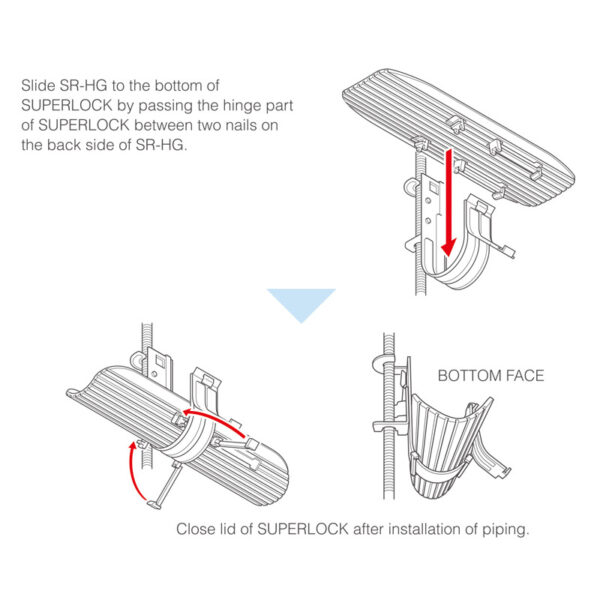

– Quick: Adjustable height, attaches to 3/8″ threaded rod without requiring any tools. – Easy: Adjustable height, a secure fit with a lever for easy height adjustment. May be used in both horizontal or sloped installations. – Practical: Temporary placement of piping, Hinge mechanism allows for piping modifications during installation. Space-saving: Back to back installation, enables space-saving installations

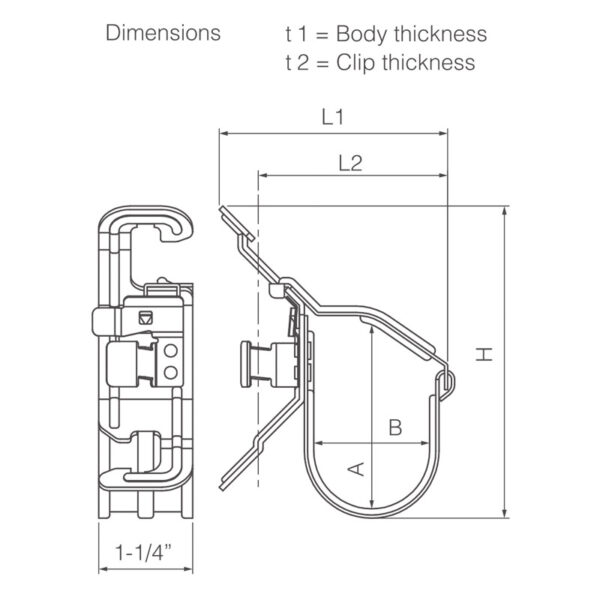

| Code No. | Item No. | Allowable static load | Dimensions / L1 | Dimensions / L2 | Dimensions / H | Dimensions / A | Dimensions / B | Dimensions / Body thickness (t1) | Dimensions / Body thickness (t2) | Pcs/Pkg |
|---|---|---|---|---|---|---|---|---|---|---|
| C 56220 | SRV-24B | 196N (44lbs) | 2-7/8″ | 2-3/8″ | 3-3/4″ | 2-3/8″ | 1-1/2″ | 0.04″ | 0.04″ | 100 |
| C 56230 | SRV-35B | 196N (44lbs) | 2-7/8″ | 2-3/8″ | 4″ | 2-3/4″ | 1-1/2″ | 0.04″ | 0.04″ | 100 |
| C 56240 | SRV-46B | 196N (44lbs) | 3″ | 2-1/2″ | 4-1/2″ | 3″ | 1-5/8″ | 0.04″ | 0.04″ | 100 |
| C 56250 | SRV-58B | 196N (44lbs) | 3-3/8″ | 2-7/8″ | 4-7/8″ | 3-3/8″ | 2-1/8″ | 0.04″ | 0.04″ | 100 |
| C 56260 | SRV-69B | 196N (44lbs) | 3-3/8″ | 2-7/8″ | 5-1/8″ | 3-5/8″ | 2-1/8″ | 0.04″ | 0.04″ | 100 |
| C 56260 | SRV-710B | 196N (44lbs) | 3-3/4″ | 3-1/4″ | 5-1/8″ | 3-3/4″ | 2-1/2″ | 0.04″ | 0.04″ | 50 |
| C 56280 | SRV-811B | 196N (44lbs) | 3-3/4″ | 3-1/4″ | 5-1/2″ | 4-1/8″ | 2-1/2″ | 0.04″ | 0.04″ | 50 |
| C 56290 | SRV-912B | 196N (44lbs) | 3-3/4″ | 3-1/4″ | 5-3/4″ | 4-3/8″ | 2-1/2″ | 0.04″ | 0.04″ | 50 |
| C 56295 | SRV-1012B | 196N (44lbs) | 4-1/8″ | 3-5/8″ | 6-1/8″ | 4-3/4″ | 2-7/8″ | 0.04″ | 0.04″ | 50 |
| C 56300 | SRV-1114B | 196N (44lbs) | 4-1/2″ | 4″ | 6-3/8″ | 4-7/8″ | 3-1/4″ | 0.04″ | 0.04″ | 50 |
Q. Can SuperLock be used to support anything other than refrigerant piping?
A. Yes.
While SuperLock was designed for HVAC piping, its quality construction, durability and weight capacity make it perfect for many other products such as plumbing piping and electrical conduit.
Q. What is the allowable static load of the SRV?
A. The SRV supports an allowable static load of 44lbs (20kg)
Q. Is the SRV corrosion-resistant?
A. Yes, the body’s electro-galvanized Unichrome plating and stainless steel springs ensure high resistance to corrosion, making it suitable for long-term indoor or protected outdoor use.
