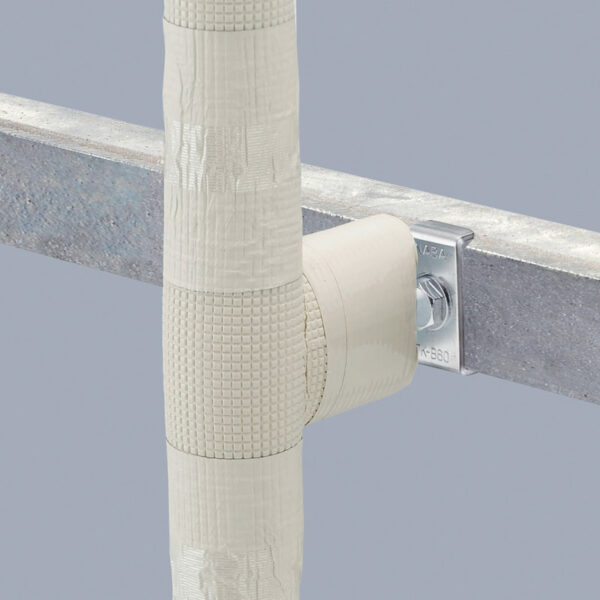

Vertical lineset runs are prone to stress caused by thermal expansion and gravity, often leading to insulation damage, buckling, and deformation at the lower ends of the piping system. LineBrace Insulation is specially designed to work with the LineBrace support system, providing durable, compression-resistant protection that maintains the integrity of the insulation and overall system performance. With a central fixed point that supports the lineset and manages thermal movement, this insulation ensures long-lasting performance and a cleaner, more professional finish.
SKU
TKL-3SH
Categories Pipe Support, Vertical
Tags Commercial Pipe Support Insulation, Pipe Support Insulation, Vertical Pipe Support Insulation
Brand: LineBrace
TKL-H Insulation




SKU
TKL-3SH
Categories Pipe Support, Vertical
Tags Commercial Pipe Support Insulation, Pipe Support Insulation, Vertical Pipe Support Insulation
Brand: LineBrace
TKL-H Insulation
Protective insulation for vertical linesets. Resists compression and works with LineBrace to prevent damage from thermal stress..
Reduced weight, reduced thermal expansion, easy to install pipe support, compatible with most pipes,

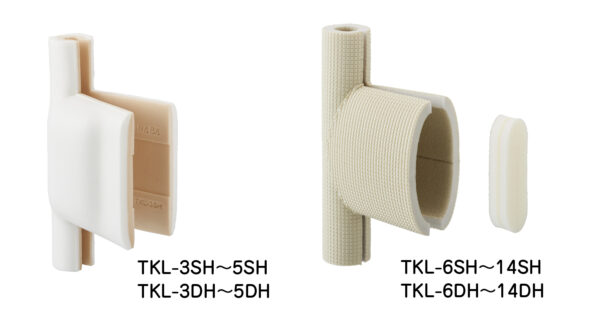

Code No. | Item No. | Compliant with TKL | Insulation Thickness (t) |
---|---|---|---|
C 51783 | TKL-3SH | TK-3K | 3/8″ |
C 51784 | TKL-4SH | TK-4K | 3/8″ |
C 51785 | TKL-5SH | TK-5K | 3/8″ |
C 51786 | TKL-6SH | TK-6K | 3/8″ |
C 51787 | TKL-7SH | TK-7K | 3/8″ |
C 51788 | TKL-8SH | TK-8K | 3/8″ |
C 51789 | TKL-9SH | TK-9K | 3/8″ |
C 51790 | TKL-10SH | TK-10K | 3/8″ |
C 51791 | TKL-11SH | TK-11K | 3/8″ |
C 51792 | TKL-12SH | TK-12K | 3/8″ |
C 51793 | TKL-13SH | TK-13K | 3/8″ |
C 51794 | TKL-14SH | TK-14K | 3/8″ |
C 51803 | TKL-3DH | TK-3K | 7/8″ |
C 51804 | TKL-4DH | TK-4K | 7/8″ |
C 51805 | TKL-5DH | TK-5K | 7/8″ |
C 51806 | TKL-6DH | TK-6K | 7/8″ |
C 51807 | TKL-7DH | TK-7K | 7/8″ |
C 51808 | TKL-8DH | TK-8K | 7/8″ |
C 51809 | TKL-9DH | TK-9K | 7/8″ |
C 51810 | TKL-10DH | TK-10K | 7/8″ |
C 51811 | TKL-11DH | TK-11K | 7/8″ |
C 51812 | TKL-12DH | TK-12K | 7/8″ |
C 51813 | TKL-13DH | TK-13K | 7/8″ |
C 51814 | TKL-14DH | TK-14K | 7/8″ |
Q. What benefit does LineBrace have over other traditional cushion-type clamping methods?
A. LineBrace was designed to carry the weight of a copper lineset riser and is to be used in conjunction with cushion-type clamps and not as a replacement. The LineBrace is meant to be installed in the center of the riser with cushion-type clamps being used above and below. This application also splits the thermal expansion 50% above and below the LineBrace.
While cushion-type clamps hold the piping in place, they are not designed to carry the weight. The synthetic bushing eventually degrades and the lineset drops, causing kinks or other piping damage that can limit a system’s capacity or cause catastrophic compressor failure.
There is no other product on the market like it today.
Q. With metal-on-metal clamping; does the LineBrace have dissimilar metals corrosion issues?
A. Not at all. The LINEBRACE assembly consists of a type 304 Stainless steel clamp, which is attached directly onto the copper piping of an air conditioning lineset riser. Both Stainless steel and copper compatibilities may be found in a noble metals chart. The level of nobility between copper and stainless steel is small therefore electrolytic corrosion is not considered an issue when using LINEBRACE.
Additionally, the Base Brackets are made of hot dipped galvanized and powder coated steel to protect against corrosion. The Temporary Clamping Plate included in the assembly, also serves as dielectric protection between the stainless-steel clamp and the base bracket.
