TKL-K Base Bracket (Wall Mounting)

TKL-K Base Bracket (Wall Mounting)

Enables secure wall mounting of the LineBrace Clamp for vertical lineset support. Provides stable anchoring to reduce stress and maintain proper alignment in VRF/VRV systems.

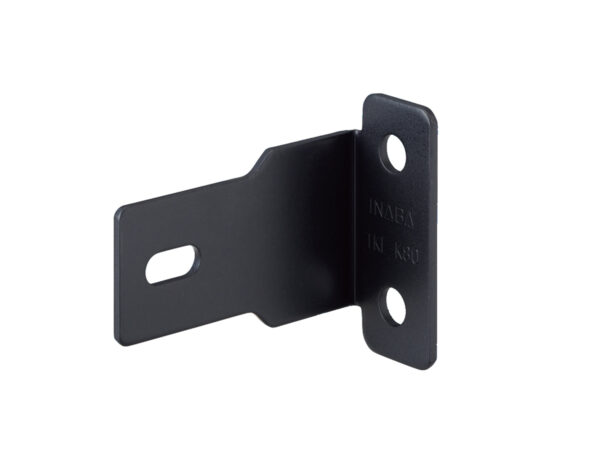

This wall-mounted base bracket is engineered to securely support the LineBrace Clamp in vertical lineset installations for VRF/VRV systems. Designed for structural integrity and precise alignment, it anchors the LineBrace directly to building walls, providing stable support to manage the combined forces of gravity and thermal expansion. Ideal for scenarios where floor or ceiling mounting is not feasible, this bracket ensures optimal load transfer, reduces stress on pipe fittings, and helps maintain system reliability and performance over time.

  • Hot dipped galvanized powder coated steel

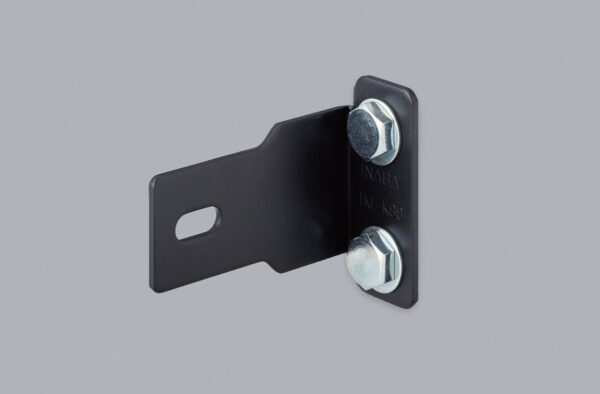

  • Direct mount horizontal wall bracket for the TKL
  • Strong support with ease of installation.
UseCode No.Item No.ABPcs/Pkg
IndoorC 51840TKL-K602-5/8″1/8″100
IndoorC 51841TKL-K703″1/8″100
IndoorC 51842TKL-K803-1/2″1/8″100
IndoorC 51843TKL-K903-7/8″1/8″100
IndoorC 51844TKL-K1004-1/4″1/8″100

Q. What benefit does LineBrace have over other traditional cushion-type clamping methods?

A. LineBrace was designed to carry the weight of a copper lineset riser and is to be used in conjunction with cushion-type clamps and not as a replacement. The LineBrace is meant to be installed in the center of the riser with cushion-type clamps being used above and below. This application also splits the thermal expansion 50% above and below the LineBrace.
While cushion-type clamps hold the piping in place, they are not designed to carry the weight. The synthetic bushing eventually degrades and the lineset drops, causing kinks or other piping damage that can limit a system’s capacity or cause catastrophic compressor failure.
There is no other product on the market like it today.

Q. With metal-on-metal clamping; does the LineBrace have dissimilar metals corrosion issues?

A. Not at all. The LINEBRACE assembly consists of a type 304 Stainless steel clamp, which is attached directly onto the copper piping of an air conditioning lineset riser. Both Stainless steel and copper compatibilities may be found in a noble metals chart. The level of nobility between copper and stainless steel is small therefore electrolytic corrosion is not considered an issue when using LINEBRACE.
Additionally, the Base Brackets are made of hot dipped galvanized and powder coated steel to protect against corrosion. The Temporary Clamping Plate included in the assembly, also serves as dielectric protection between the stainless-steel clamp and the base bracket.”
