The LineBrace Clamp is engineered to support the weight of vertical lineset risers in VRF/VRV air conditioning systems. It effectively reduces thermal expansion stress on the lowest elbow by up to 50%, preventing pipe buckling and deformation. Vertical linesets are highly prone to combined stress from gravity and thermal expansion—LineBrace provides a secure, load-bearing solution that protects system integrity and ensures long-term performance.
TKL LineBrace Vertical Lineset Support
TKL LineBrace Vertical Lineset Support
LineBrace supports vertical lineset risers in VRF/VRV systems and reduces thermal expansion stress on the lowest elbow by 50%. Prevents buckling and deformation caused by gravity and heat-induced pipe movement.

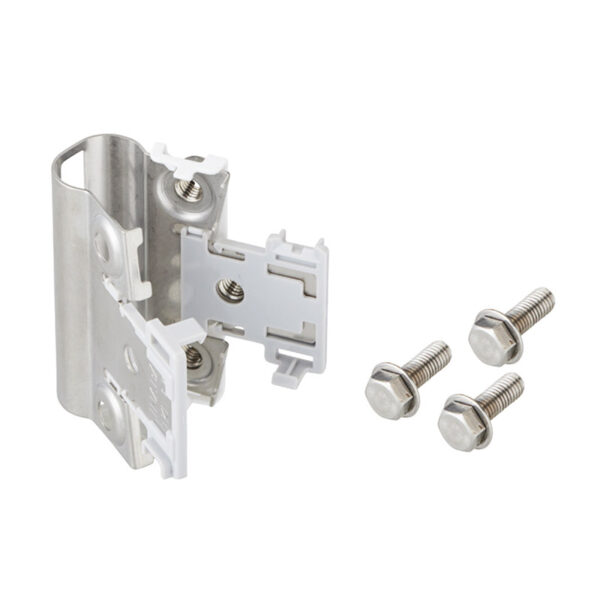

– No “hot work” (brazing) required. – Reduces weight load on vertical riser. – Reduces thermal expansion by 50%. – Easy to retrofit onto existing linesets. – Molded insulation sleeve preserves thermal integrity. – Available from 3/8″ to 1-3/4″ in 1/8″ increments. – Holds 279-652 lbs.
Q. What benefit does LineBrace have over other traditional cushion-type clamping methods?

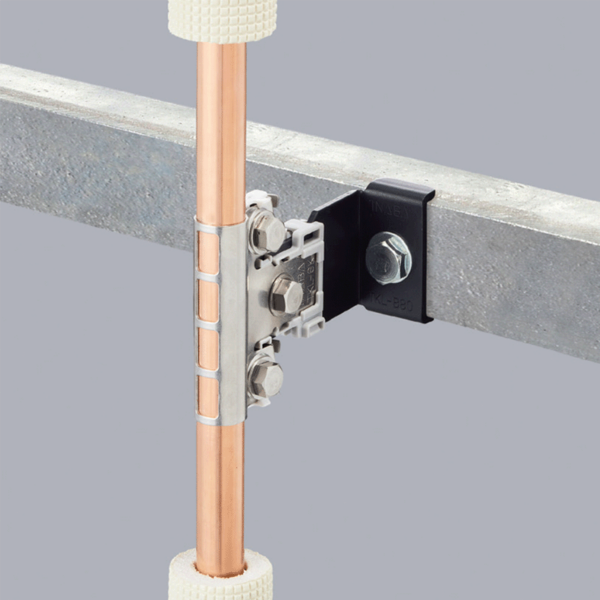

LineBrace was designed to carry the weight of a copper lineset riser and is to be used in conjunction with cushion-type clamps and not as a replacement. The LineBrace is meant to be installed in the center of the riser with cushion-type clamps being used above and below. This application also splits the thermal expansion 50% above and below the LineBrace.
While cushion-type clamps hold the piping in place, they are not designed to carry the weight. The synthetic bushing eventually degrades and the lineset drops, causing kinks or other piping damage that can limit a system’s capacity or cause catastrophic compressor failure.
There is no other product on the market like it today.
Q. With metal-on-metal clamping; does the LineBrace have dissimilar metals corrosion issues?
A. Not at all. The LINEBRACE assembly consists of a type 304 Stainless steel clamp, which is attached directly onto the copper piping of an air conditioning lineset riser. Both Stainless steel and copper compatibilities may be found in a noble metals chart. The level of nobility between copper and stainless steel is small therefore electrolytic corrosion is not considered an issue when using LINEBRACE.
Additionally, the Base Brackets are made of hot dipped galvanized and powder coated steel to protect against corrosion. The Temporary Clamping Plate included in the assembly, also serves as dielectric protection between the stainless-steel clamp and the base bracket.
You May Also Be Interested In
-
FL-B Crosslock B – Bolt Type
Durable bolt for securing AC units in seismic restraint systems. Provides strong, vibration-resistant fastening.
-
FL-A Crosslock A – Bolt Type
Durable bolt for securing AC units in seismic restraint systems. Provides strong, vibration-resistant fastening.
-
FL-X Crosslock X – One Touch Type
Spring-loaded, one-touch clip for AC units. Fits 3/8″ & 1/2″ threaded rods. Provides quick, secure seismic restraint.
-
BT BigTie

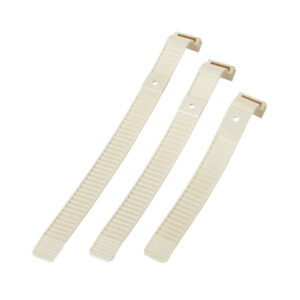

Bigtie straps together lineset inside commercial or residential lineset cover of all sizes.
