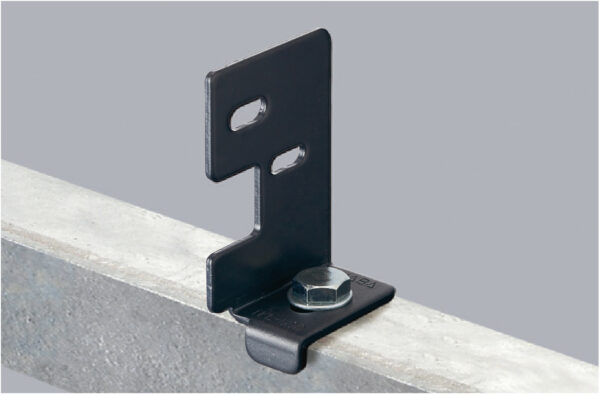

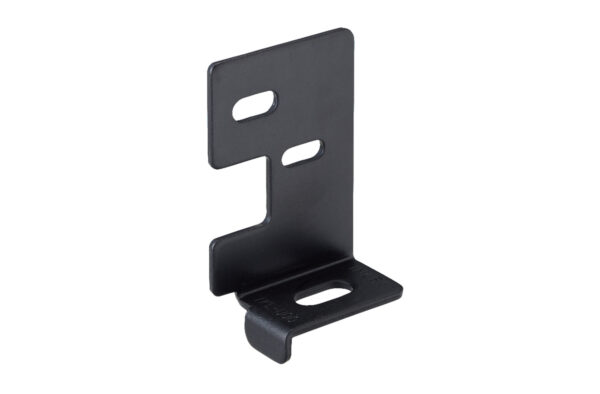

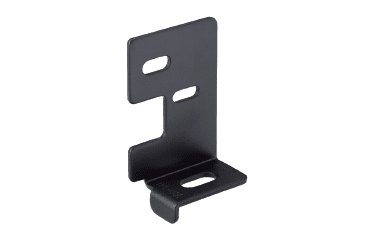

Designed specifically for use with the LineBrace Clamp, this top mounting base bracket provides a stable and secure anchor point at the upper end of vertical lineset risers in VRF/VRV systems. Engineered for durability and structural integrity, it ensures proper alignment of the LineBrace, allowing for effective weight distribution and minimizing stress on the piping system. Ideal for installations where precise load management and long-term reliability are critical, the bracket simplifies mounting while enhancing system performance and longevity.
SKU
TKL-U00
Categories Pipe Support, Vertical
Tags vertical lineset support base bracket, vertical pipe support base bracket
Brand: LineBrace
TKL-U Base Bracket




SKU
TKL-U00
Categories Pipe Support, Vertical
Tags vertical lineset support base bracket, vertical pipe support base bracket
Brand: LineBrace
TKL-U Base Bracket
Securely anchors the LineBrace Clamp at the top of vertical lineset runs. Provides stable, load-bearing support for proper alignment and stress reduction in VRF/VRV systems.
Code No | Item No | Pcs/Pkg |
---|---|---|
C 51860 | TKL-U00 | 100 |
C 51861 | TKL-U00Z | 100 |
Q. What benefit does LineBrace have over other traditional cushion-type clamping methods?
A. LineBrace was designed to carry the weight of a copper lineset riser and is to be used in conjunction with cushion-type clamps and not as a replacement. The LineBrace is meant to be installed in the center of the riser with cushion-type clamps being used above and below. This application also splits the thermal expansion 50% above and below the LineBrace.
While cushion-type clamps hold the piping in place, they are not designed to carry the weight. The synthetic bushing eventually degrades and the lineset drops, causing kinks or other piping damage that can limit a system’s capacity or cause catastrophic compressor failure.
There is no other product on the market like it today.
Q. With metal-on-metal clamping; does the LineBrace have dissimilar metals corrosion issues?
A. Not at all. The LINEBRACE assembly consists of a type 304 Stainless steel clamp, which is attached directly onto the copper piping of an air conditioning lineset riser. Both Stainless steel and copper compatibilities may be found in a noble metals chart. The level of nobility between copper and stainless steel is small therefore electrolytic corrosion is not considered an issue when using LINEBRACE.
Additionally, the Base Brackets are made of hot dipped galvanized and powder coated steel to protect against corrosion. The Temporary Clamping Plate included in the assembly, also serves as dielectric protection between the stainless-steel clamp and the base bracket.”
