Designed for parallel pipe runs, the Double Saddle Support securely holds two insulated linesets in HVAC installations. Provides stable, organized support while maintaining proper spacing and preventing insulation damage. Ideal for use with threaded rod or mounting brackets.

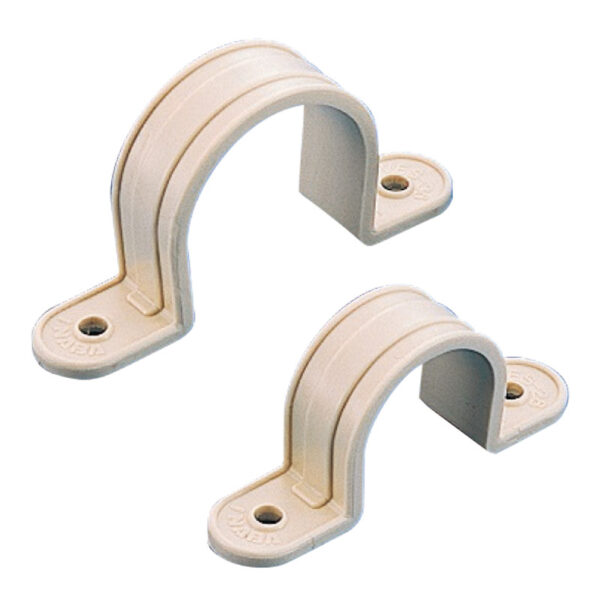

VES Double Saddle
VES Double Saddle
Securely holds two parallel linesets for clean, organized HVAC installations. Prevents insulation damage and maintains proper spacing.

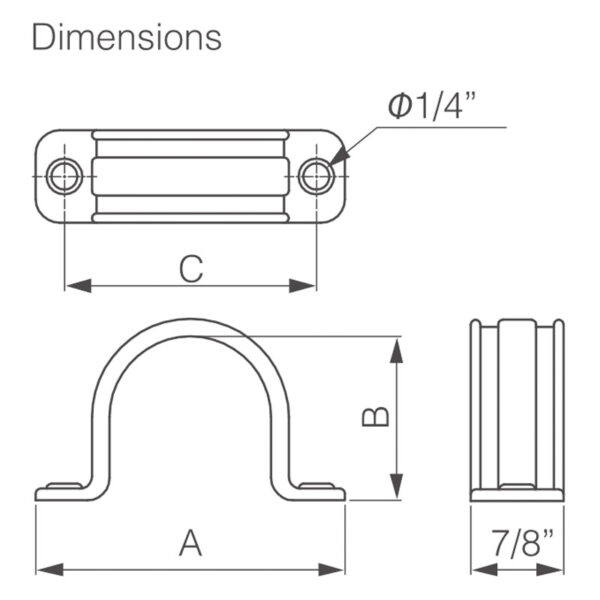

| Code No. | Item No. | A | B | C | Pcs/Pkg |
|---|---|---|---|---|---|
| C 06572 | VES-28N-I | 2-5/8″ | 1-3/8″ | 2-1/8″ | 200 |
| C 05030 | VES-36-I | 3-7/8″ | 1-3/4″ | 3″ | 200 |
| C 05040 | VES-42-I | 4-1/4″ | 2″ | 3-3/8″ | 200 |
Q. What is the VES Double Saddle used for?
A. The VES Double Saddle is designed to securely support and organize two refrigerant lines in HVAC systems. It helps maintain proper spacing and alignment, ensuring efficient operation and a tidy installation.
Q. What material is the VES Double Saddle made from?
A. The saddle is constructed from polypropylene (PP), making it suitable for indoor use.
Q. What are the available sizes and specifications for the VES Double Saddle?
A. The VES Double Saddle comes in three sizes_
VES-28N-I
A_2-5/8″
B_1-3/8″
C_2-1/8″
200 pieces per package
VES-36-I
A_3-7/8″
B_1-3/4″
C_3″
200 pieces per package
VES-42-I
A_4-1/4″
B_2″
C_3-3/8″
200 pieces per package
These dimensions accommodate various pipe sizes and installation requirements.
Q. Is the VES Double Saddle suitable for outdoor use?
A. No, the VES Double Saddle is intended for indoor use only. For outdoor applications, consider using products specifically designed for exterior environments.
Q. What color is the VES Double Saddle?
A. The saddle is ivory in color, which blends well with most indoor settings.
