Designed for parallel pipe runs, the Double Saddle Support securely holds two insulated linesets in HVAC installations. Provides stable, organized support while maintaining proper spacing and preventing insulation damage. Ideal for use with threaded rod or mounting brackets.

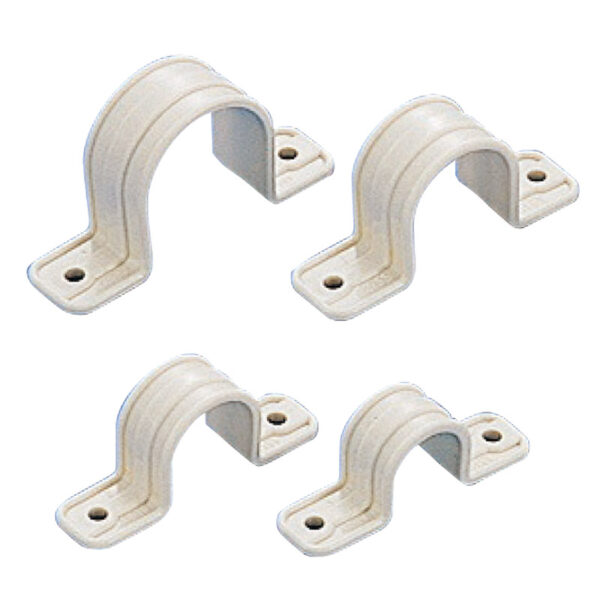

VS Double Saddle
VS Double Saddle
Securely holds two parallel linesets for clean, organized HVAC installations. Prevents insulation damage and maintains proper spacing.

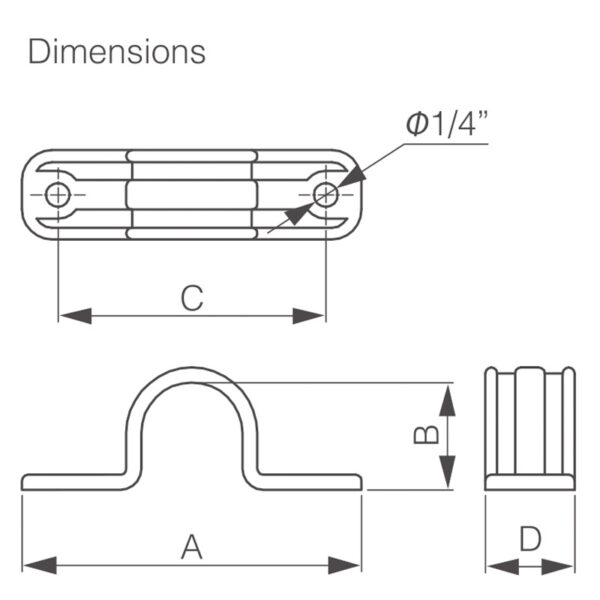

| Code No. | Item No. | A | B | C | D | Pcs/Pkg |
|---|---|---|---|---|---|---|
| C 06532 | VS-14 | 2-1/4″ | 3/4″ | 1-7/8″ | 5/8″ | 500 |
| C 06542 | VS-16 | 2-1/2″ | 7/8″ | 1-7/8″ | 5/8″ | 500 |
| C 06552 | VS-22 | 2-5/8″ | 1-1/8″ | 2-1/8″ | 3/4″ | 300 |
| C 06562 | VS-25 | 2-7/8″ | 1-3/8″ | 2-1/4″ | 3/4″ | 300 |
What is the VS Double Saddle used for?

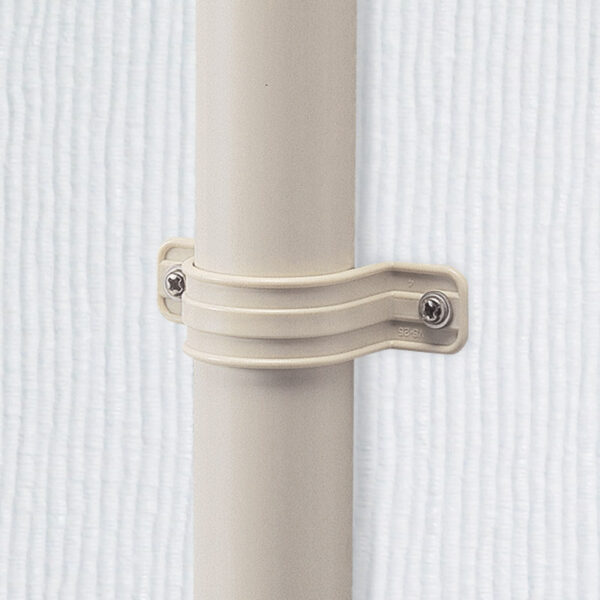

The VS Double Saddle is designed to securely support and organize two refrigerant lines in HVAC systems. It helps maintain proper spacing and alignment, ensuring efficient operation and a tidy installation.
What material is the VS Double Saddle made from?
The saddle is constructed from polypropylene (PP), making it suitable for indoor use.
What are the available sizes and specifications for the VS Double Saddle?
The VS Double Saddle comes in four sizes_
VS-14
A_2-1/4″
B_3/4″
C_1-7/8″
D_5/8″
500 pieces per package
VS-16
A_2-1/2″
B_7/8″
C_1-7/8″
D_5/8″
500 pieces per package
VS-22
A_2-5/8″
B_1-1/8″
C_2-1/8″
D_3/4″
300 pieces per package
VS-25
A_2-7/8″
B_1-3/8″
C_2-1/4″
D_3/4″
300 pieces per package
These dimensions accommodate various pipe sizes and installation requirements.
Is the VS Double Saddle suitable for outdoor use?
No, the VS Double Saddle is intended for indoor use only. For outdoor applications, consider using products specifically designed for exterior environments.
What color is the VS Double Saddle?
The saddle is ivory in color, which blends well with most indoor settings.
