SuperLock SRV Pipe Hanger for HVAC system

SuperLock

SuperLock is a fast-set solution for installing ceiling-supported pipe hangers. It attaches to a 3/8″ threaded rod without tools and provides height adjustment with a lever. The design reduces installation time while supporting horizontal or sloped pipe layouts.

The system includes accessories such as insulation protection plates and back-to-back installation options. SuperLock supports HVAC and piping projects that require spacing flexibility, vibration control, and secure pipe support on a single threaded rod.

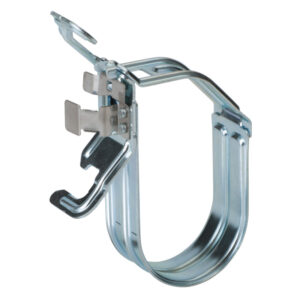

SuperLock SRV pipe hanger is the fastest solution available for jobs requiring ceiling supported pipes or linesets. The one-touch design allows for easy installation with just a twist. Two hooks fit securely on the all thread rod, while still allowing the height to be adjusted with a lever. Available in different sizes for better use of space and resources. The optional protection plate, SR-HGZ is available to prevent insulation wear and tear caused by movement and vibration.

Easy to use

Attaches to 3/8″ threaded rod without requiring any tools.

Adjustable height

A secure fit with a lever for easy height adjustment. May be used in both horizontal or sloped installations.

Practical

The hinge mechanism allows for piping modifications during installation.

Space Saving

Back to back installation allows for 2 pipes to be installed on the same threaded rod.

SuperLock Brochure Specs Superlock SVR Case Study - Gas Company

Q: Can SuperLock be used to support anything other than refrigerant piping?

A: Yes. While SuperLock was designed for HVAC piping, its quality construction, durability and weight capacity make it perfect for many other products such as plumbing piping and electrical conduit.

Q: What is the allowable static load of the SRV?

A: The SRV supports an allowable static load of 44lbs (20kg)

Q: Is the SRV corrosion-resistant?

A: Yes, the body’s electro-galvanized Unichrome plating and stainless steel springs ensure high resistance to corrosion, making it suitable for long-term indoor or protected outdoor use.
