SKU DSH-UP20E20R-07 Categories , Tag Brand:

DSH-Up ER Elbow Type

SKU DSH-UP20E20R-07 Categories , Tag Brand:

DSH-Up ER Elbow Type

The Drain Hose Kit (Elbow Type) ensures smooth, kink-free drainage in tight or angled spaces. Ideal for HVAC, plumbing, and refrigeration systems, it offers a compact, space-saving solution for efficient condensate management.

Drain Hose Kit (Elbow Type) – Optimized Drainage for Tight Spaces

The Drain Hose Kit (Elbow Type) is engineered for efficient drainage in HVAC, refrigeration, and plumbing systems, particularly where space is limited. Its compact elbow-shaped design ensures smooth water flow while preventing kinks, bends, and blockages. Ideal for tight or angled installations, it provides a reliable, space-saving solution for managing condensate.

– **Elbow Design** – Prevents kinks and ensures optimal drainage in confined spaces.
– **Space-Saving** – Perfect for angled or restricted installation areas.
– **Versatile Use** – Compatible with HVAC, plumbing, and refrigeration systems.

Code No.Item No.APcs/Pkg
C 08367DSH-UP20E20R-07700mm (27-5/8″)10
C 08377DSH-UP20E20R-101,000mm (39-3/8″)10

Q. Are there any proven cases of installation?

A . With sales in Japan and the world, we have about 600,000 units of actual installation.

Q. Are there any proven cases of installation?

A . There are approximately 600,000 installations globally with a small number in North America and growing.

Q. Can I use DSH-UP for equipment besides air-conditioning units?

A . DSH-UP was developed to be used for drain-up piping on indoor air-conditioning units. It is not suitable to be used for other purposes.

Q. Can I use DSH-UP for equipment besides air-conditioning units?

A . DSH-UP is designed to work as an air conditioning condensate drain hose only and should not be used outside of its intended purpose.

Q. Can DSH-UP be used outdoors?

A . It is specialized for indoor use. Please do not use it outside.

Q. Can DSH-UP be used outdoors?

A . No, it does not contain any UV protection and should not be used outdoors.

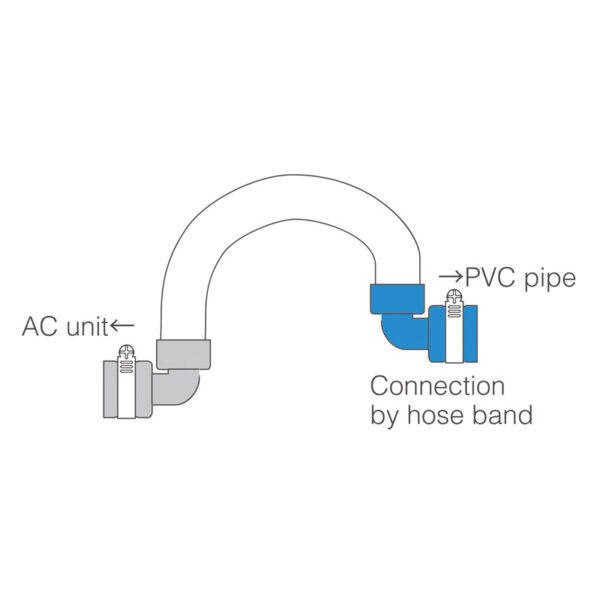

Q. When connecting the DSH-UP coupler to a PVC pipe, is it okay to use an adhesive instead of a metal band to make the connection?

A . Please do not use adhesive. Only use the metal hose band for connections.

Q. When connecting the DSH-UP coupler to a PVC pipe, is it okay to use an adhesive instead of the hose clamp to make the connection?

A . The connections are flexible and not compatible with any type of glue or adhesive. Use the stainless steel hose clamps provided with the product.

Q. Are the DSH-UP couplers and other parts included in the kit also sold separately?

A . No, the parts must be purchased as part of the kit.

Q. Are the DSH-UP couplers and other parts included in the kit also sold separately?

A . No, the parts needed are included in the kit. If additional parts are needed, another kit would need to be purchased.

Q. What should I do about condensation around the product?

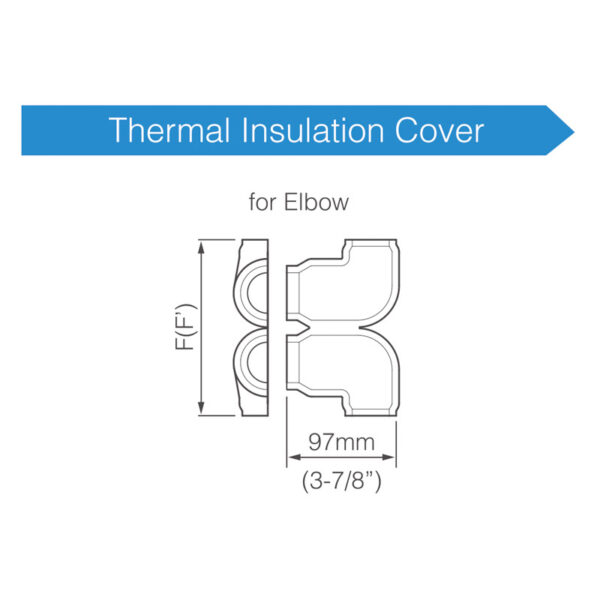

A . Depending on the surroundings, insulation can be wrapped around the hose and coupler as a countermeasure to condensation.

Q. What should I do about condensation around the product?

A . While rare, if external condensation is an issue, additional field-supplied insulation may be applied around all surfaces and fittings.
