The anti-vibration pad is a durable device designed to absorb and isolate vibrations, minimizing noise, shock, and potential damage to equipment and surrounding structures. Made from high-performance materials such as rubber or neoprene, it provides a stable, cushioned base ideal for HVAC units, compressors, pumps, and other machinery in residential, commercial, or industrial settings.

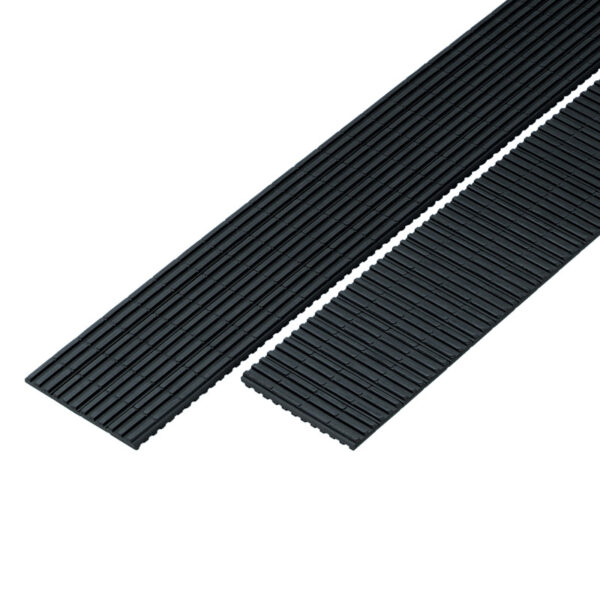

GPC Anti-Vibration Pad
GPC Anti-Vibration Pad
Reduces noise, shock, and vibration. Made from durable rubber or neoprene for long-lasting equipment protection.
Absorbs vibration and acts as a buffer to reduce noise transmission. Surface embossed cut lines at 2″ intervals facilitate cutting to size. Interval between each projection is enough and ensures that vibration absorption is not compromised even under heavy loads (projections are designed not to touch each other). Be stacked in layers easily (with the same no. item only).
| Code No. | Item No. | Width (W) | Length (L) | Thickness (t) | Pcs/Pkg |
|---|---|---|---|---|---|
| C 06880 | GPC-100-10 | 4″ | 39-3/8″ | 1/2″ | 20 |
| C 06250 | GPC-100-12 | 4″ | 47-1/4″ | 1/2″ | 20 |
| C 06220 | GPC-150-10 | 6″ | 39-3/8″ | 1/2″ | 10 |
| C 06230 | GPC-300-03 | 11-7/8″ | 11-7/8″ | 1/2″ | 20 |
| C 06240 | GPC-100T15-10 | 4″ | 39-3/8″ | 1/2″ | 10 |
Q. When does the Anti-Vibration Pad need to be replaced?
A . We typically recommend that the pad be replaced when the outdoor unit is exchanged. However, since the AntiVibration Pad is a consumable good, the time to change the pad differs depending on the environment. Please check for cracks or fissures at least once a year.
Q. When do the Anti-Vibration Pads need replacing?
A . We typically recommend that the pads be replaced when the outdoor unit is changed. Replace a needed during your annual maintenance program.
