The GPS Anti-Vibration Pad is designed to absorb vibration and act as a buffer between HVAC equipment and mounting surfaces, significantly reducing noise transmission. Ideal for use with outdoor condensers, heat pumps, and other machinery, this pad enhances system performance while minimizing disruptive vibrations and sound.

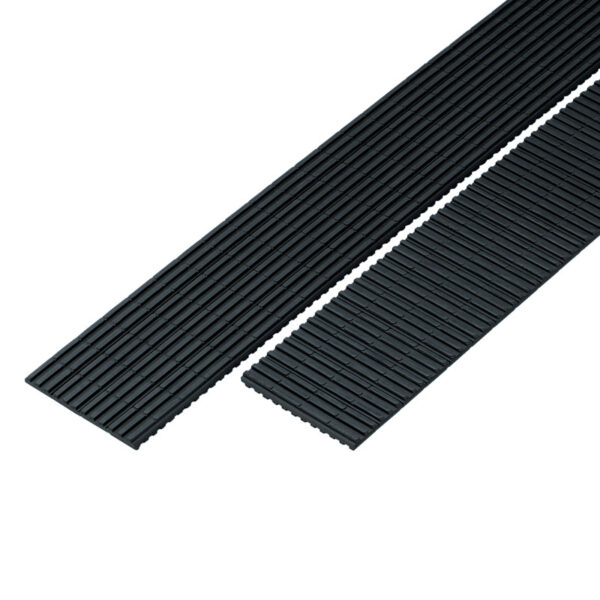

GPC Anti-Vibration Pad
GPC Anti-Vibration Pad
GPS anti-vibration pad absorbs vibration and acts as a buffer to reduce noise transmission.
Chloroprene rubber is used as material which offers superior weather and thermal resistance.

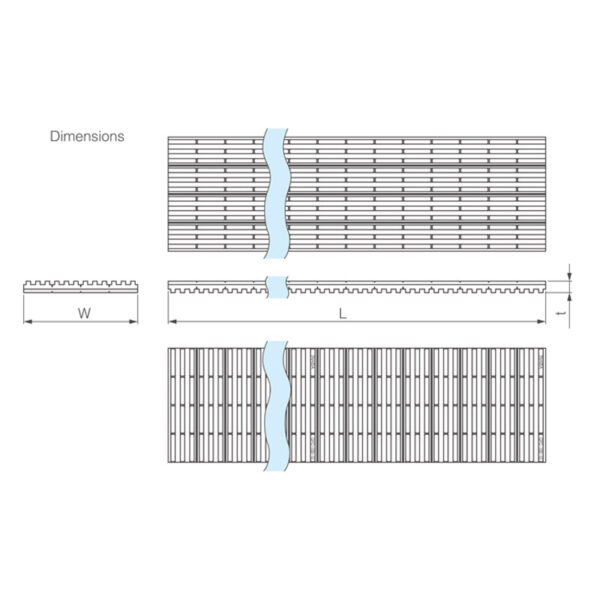

| Code No. | Item No. | Width (W) | Length (L) | Thickness (t) | Pcs/Pkg |
|---|---|---|---|---|---|
| C 06880 | GPC-100-10 | 4″ | 39-3/8″ | 1/2″ | 20 |
| C 06250 | GPC-100-12 | 4″ | 47-1/4″ | 1/2″ | 20 |
| C 06220 | GPC-150-10 | 6″ | 39-3/8″ | 1/2″ | 10 |
| C 06230 | GPC-300-03 | 11-7/8″ | 11-7/8″ | 1/2″ | 20 |
| C 06240 | GPC-100T15-10 | 4″ | 39-3/8″ | 1/2″ | 10 |
Q. What is the Anti-Vibration Pad GPC used for?
A. The GPC series is designed to reduce vibration and absorb shock in HVAC and mechanical system installations, helping to minimize noise and structural stress.
Q. What materials are used in the GPC pad?
A. The pad is made from a blend of natural rubber (NR) and styrene-butadiene rubber (SBR), providing durability and vibration damping.
Q. What are the available sizes for the GPC pad?
A. GPC-100-10_100 × 1000 × 10 mm
GPC-100-12_100 × 1200 × 10 mm
GPC-150-10_150 × 1000 × 10 mm
GPC-300-03_300 × 300 × 10 mm
GPC-100T15-10_100 × 1000 × 15 mm
Q. What is the allowable surface load for the GPC pads?
A. 10 mm thick pads_Allowable load is 0.6 N/mm²
15 mm thick pad (GPC-100T15-10)_Allowable load is 0.9 N/mm²
Q. How do the pads perform under load?
A. The GPC pads are designed to compress slightly under load, absorbing vibration. Graph-1 in the document illustrates the relationship between surface pressure (N/mm²) and deflection (mm) for both 10 mm and 15 mm thick pads.
Q. What is the benefit of using a thicker pad like GPC-100T15-10?
A. Thicker pads (15 mm) offer greater deflection under pressure and support higher surface loads, making them suitable for heavier equipment or higher vibration applications.
