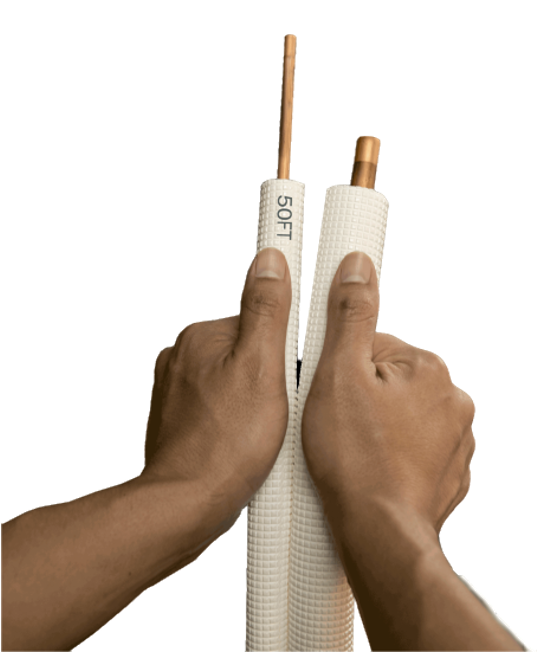

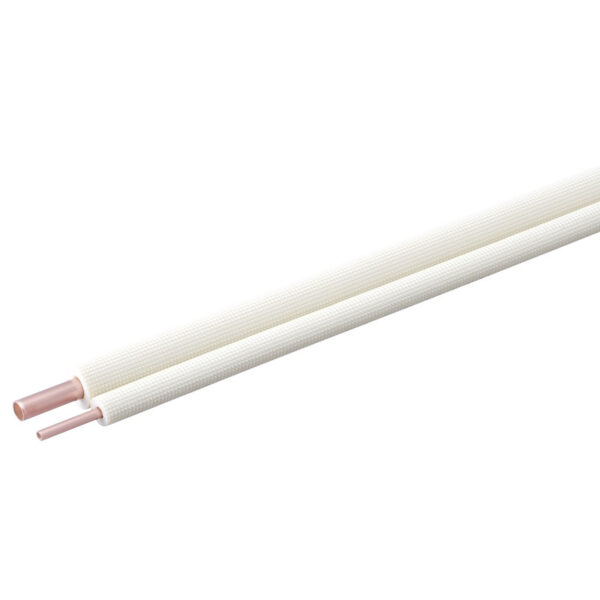

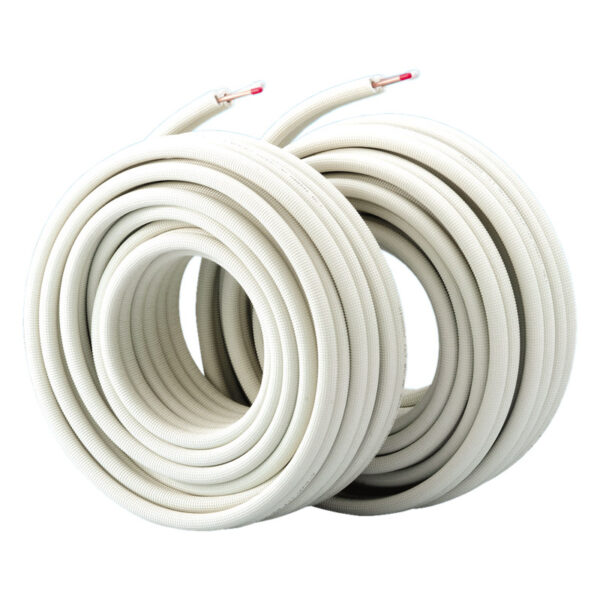

Paircoil Lineset

Pre-paired and pre-insulated copper linesets for fast, efficient installs. Flexible annealed copper with durable insulation. A2L compatible and ASTM E84 (25/50) compliant.

The Paircoil lineset is a high-performance, pre-paired copper tube solution engineered to make HVAC installations faster, cleaner, and more efficient. Designed for professional installers, Paircoil integrates annealed copper tubing with pre-installed, durable insulation, removing the need to manually pair and wrap linesets on site.

Each Paircoil lineset uses high-quality, flexible copper that bends and flares easily, cutting labor time and reducing the risk of kinks or damage during installation. This flexibility is valuable in tight spaces or complex routing paths, helping you finish installations efficiently without losing precision.

The insulation on every Paircoil lineset is durable yet pliable. It protects against condensation, wear, and environmental exposure while maintaining long-term performance. The insulation meets nine ASTM standards, including ASTM E84 (25/50) for flame and smoke compliance, supporting strict building codes and safety requirements.

The Paircoil lineset is also compatible with A2L refrigerants, making it a reliable choice for modern HVAC systems that use low-GWP refrigerants.

Request distributor quote

Labor-Saving Single-Run Installation:
The Paircoil lineset allows you to run both lines at once, reducing installation steps and saving valuable labor time. This design simplifies setup and improves efficiency on every HVAC project.

Embossed Film Coating for Easier Installation:
An embossed film coating reduces friction, helping the Paircoil lineset slide smoothly through walls and conduits. This feature minimizes snags and makes handling cleaner and faster.

Fire-Retardant Cross-Linked Polyethylene Insulation:
Each Paircoil lineset uses fire-retardant, cross-linked polyethylene insulation that resists heat and wear. It offers reliable protection, supporting compliance with safety and flame standards.

Flexible Design for Any Application:
The Paircoil lineset bends easily without damage, fitting tight spaces or complex layouts. This flexibility improves accuracy and reduces the risk of kinks or performance loss.

Length Markers for Precise Measuring:
Length markers printed at every foot allow quick, exact measuring and cutting. This feature helps installers reduce waste and maintain consistent accuracy across multiple jobs.

Compatible with A2L and R-410A Refrigerants:
The Paircoil lineset supports A2L and R-410A refrigerants, making it suitable for current and future HVAC systems. It offers long-term reliability for modern, low-GWP applications.

Copper Tube
ASTM B280 C12200 DHPPhosphorus Deoxidized Copper Seamless Tube
ASTM B1003
Pressure
Insulation
ASTM E84 (25/50)Surface Burning Characteristics
ASTM C1763
Water Absorption
ASTM E96Water Vapor Permeability
ASTM C411 & C447Maximum Use Temperature
ASTM C1427Linear Shrinkage
ASTM G154UV Exposure
ASTM C518Thermal Conductivity
Item No.LL x SLInsulationLengthPcs/Pkg
PC-2325-NA1/4″ x 3/8″1/2″25′1
PC-2335-NA1/4″ x 3/8″1/2″35′1
PC-2350-NA1/4″ x 3/8″1/2″50′1
PC-2382-NA1/4″ x 3/8″1/2″82′1
PC-2425-NA1/4″ x 1/2″1/2″25′1
PC-2435-NA1/4″ x 1/2″1/2″35′1
PC-2450-NA1/4″ x 1/2″1/2″50′1
PC-2482-NA1/4″ x 1/2″1/2″82′1
PC-2525-NA1/4″ x 5/8″1/2″25′1
PC-2535-NA1/4″ x 5/8″1/2″35′1
PC-2550-NA1/4″ x 5/8″1/2″50′1
PC-2582-NA1/4″ x 5/8″1/2″82′1
PC-3525-NA3/8″ x 5/8″1/2″25′1
PC-3535-NA3/8″ x 5/8″1/2″35′1
PC-3550-NA3/8″ x 5/8″1/2″50′1
PC-3582-NA3/8″ x 5/8″1/2″82′1
PC-3625-NA3/8″ x 3/4″1/2″25′1
PC-3635-NA3/8″ x 3/4″1/2″35′1
PC-3650-NA3/8″ x 3/4″1/2″50′1
PC-3682-NA3/8″ x 3/4″1/2″82′1
Paircoil BrochurePaircoil Product PresentationProduct Catalog

Q. Is the insulation for the PAIRCOIL products UV-resistant?
A. The Paircoil lineset undergoes the SWOM test to meet ASTM G151 and G152 standards for UV resistance. However, to maintain performance and protect it from weather, pollution, or accidental damage, we recommend using SLIMDUCT and UV Resistant Adhesive Tape for added protection.

Q. Are cable ties included in the PAIRCOIL packaging?
A. No, cable ties are not included with Paircoil and should be purchased separately.

Q. Are both ends of PAIRCOIL flared?
A. The Paircoil lineset is not flared, and flare nuts are not included. Installers should flare the ends as required for each application using the flare nuts provided by the equipment manufacturer.

Q. Is PAIRCOIL compatible with R32 refrigerant?
A. Yes, Paircoil has been pressure tested to 700 psi, which makes it suitable for HVAC systems using R32 and other current refrigerants.

Q. Can these products be used for applications outside of heating and air conditioning?
A. The Paircoil lineset is specifically engineered for air conditioning and heat pump systems. The warranty does not cover other applications.

Q. How are the products packaged?
A. Paircoil products come in individually wrapped cardboard boxes that protect them from damage during shipping and handling.

Q. I want to hide the pipes on my mini-split AC. Are there any precautions I should know about?
A. Hiding Paircoil linesets behind walls or in attics can improve aesthetics and offer more installation flexibility. However, there are some considerations:

Advantages:

  • Cleaner appearance with concealed piping.
  • More locations available for installation.

Disadvantages:

  • Higher installation and replacement costs.
  • Difficult access for maintenance increases the chance of unnoticed leaks or damage.
  • Possible compatibility issues with future HVAC units due to varying pipe sizes and requirements.

Concealed piping experiences harsher temperature and moisture conditions. Always rely on an experienced contractor for hidden installations to reduce condensation risks and damage.

Q. I want to hide the lineset. Are there any precautions I should know about?
A. Hiding the Paircoil lineset within walls, attics, or underground spaces may be subject to fire and safety codes. Consult your local code authority before proceeding. The preferred method is installing the lineset along an exterior wall and covering it with SLIMDUCT. This provides superior protection from UV rays, pests, and environmental wear while maintaining clean aesthetics. SLIMDUCT offers a range of fittings and colors to match most building designs.

Q. When installing the unit and the pipes are exposed, what can I do to protect the insulation?
A. Use UV-Resistant Tape (UVT) for exposed Paircoil linesets. This tape has proven durability under UV exposure and helps extend the life of the insulation.

Q. How can I protect the insulation if the lineset is exposed?
A. The Paircoil lineset features UV-rated insulation that performs well outdoors for years. For additional longevity and protection, we recommend applying UV-resistant tape (UVT) to shield it from strong sunlight and environmental factors.

Why Choose Inaba Denko America

Inaba Denko America provides reliable HVAC accessories engineered for performance, safety, and efficiency. Our products, including the Paircoil lineset, are praised by professionals and amateurs alike.

Unparalleled Japanese Engineering

Each product is developed by Inaba Denko of Japan, combining advanced engineering and strict quality control. This results in consistent reliability trusted across HVAC installations worldwide.

Built for North American Standards

Inaba Denko America supplies products designed to meet or exceed North American codes and performance requirements, making them a dependable choice for contractors and distributors.

Focused on Installer Efficiency

Products like the Paircoil lineset simplify installation with intelligent design details that save time, reduce labor costs, and minimize on-site complications.

Comprehensive Support Network

You get direct access to responsive technical and logistical support. Inaba Denko America makes sure every partner receives the resources needed for successful installation.

Best Used For

You can use the Paircoil lineset for mini split, VRF, and unitary heat pump systems. Its flexible design and pre-insulated copper tubing make it perfect for residential, commercial, and light industrial HVAC installations.

Many people use the Paircoil lineset for fast, clean, and reliable refrigerant connections. It performs exceptionally in both new construction and retrofit projects where precision, efficiency, and durability are a must.

Request a Distributor Quote Today

Get the Paircoil lineset that helps you install HVAC systems faster and with greater accuracy. Contact Inaba Denko America to request a distributor quote and get premium HVAC accessories built for long-lasting performance.
