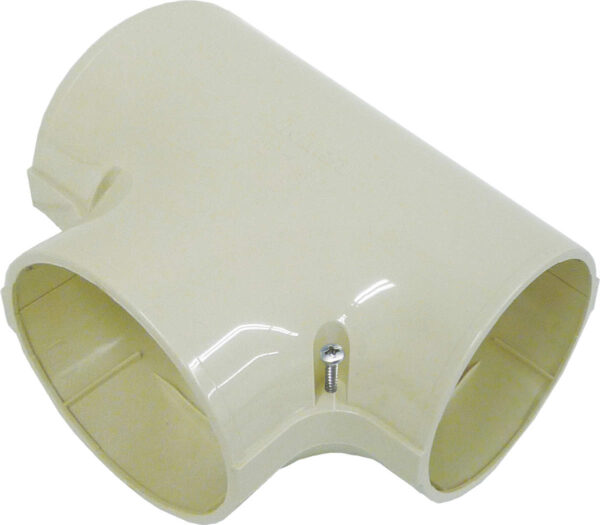

PDT Tee

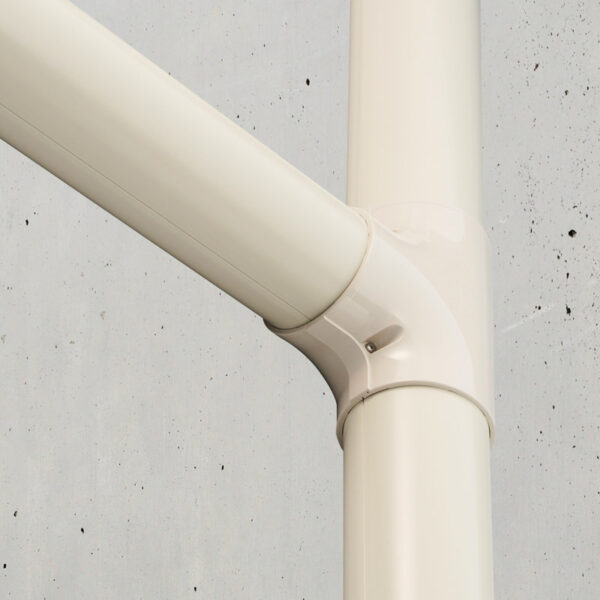

Transitions linesets in two directions while allowing size changes over exterior walls. Durable, clean finish for commercial rooftop HVAC installations.

Transitions linesets in two directions while allowing size changes over exterior walls. Durable, clean finish for commercial rooftop HVAC installations.

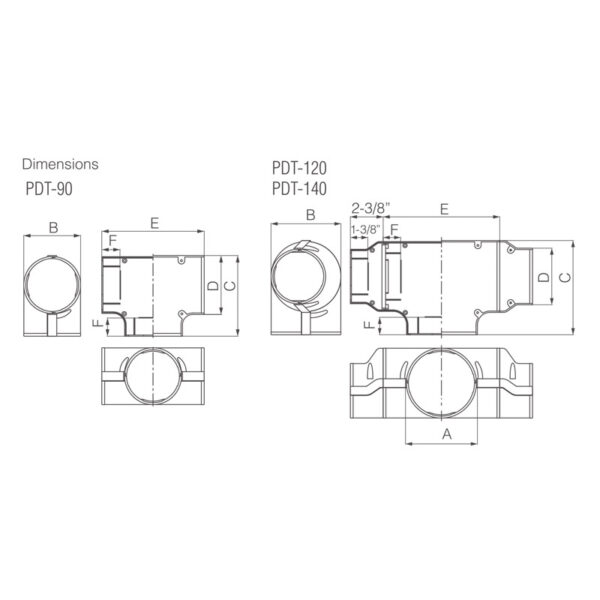

Code No.Item No.ABCDEFPcs/PKg
C 68402PDT-90-I4-1/8″4″5-5/8″4-1/8″7-1/8″1-3/8″10
C 68412PDT-120-I5-1/4″5-1/8″6-7/8″4-1/8″8-1/2″1-3/8″5
C 68662PDT-140-I6-1/8″6″8″5-1/4″10″1-5/8″5

Q_What is Slimduct PD used for?

A_Slimduct PD is a lineset cover system designed to provide a durable and aesthetic solution for protecting HVAC refrigerant piping, wiring, and drain lines in commercial installations.

Q_Is Slimduct PD waterproof?

A_No, Slimduct PD is not waterproof. Caulking or sealing with putty is required at wall penetrations and connection points to prevent water intrusion.

Q_What temperature range can Slimduct PD withstand?

A_The recommended surface temperature range is -20°C to 60°C (-4°F to 140°F). Avoid exposure to extreme heat, especially in confined or sun-exposed spaces, to prevent deformation.

Q_Can I install Slimduct PD in direct sunlight or hot environments?

A_Installation in areas with high radiant heat—such as metallic eaves, heat storage walls, or near heat-generating equipment—should be avoided unless well-ventilated, as this can cause material softening or warping.

Q_What sizes does Slimduct PD support?

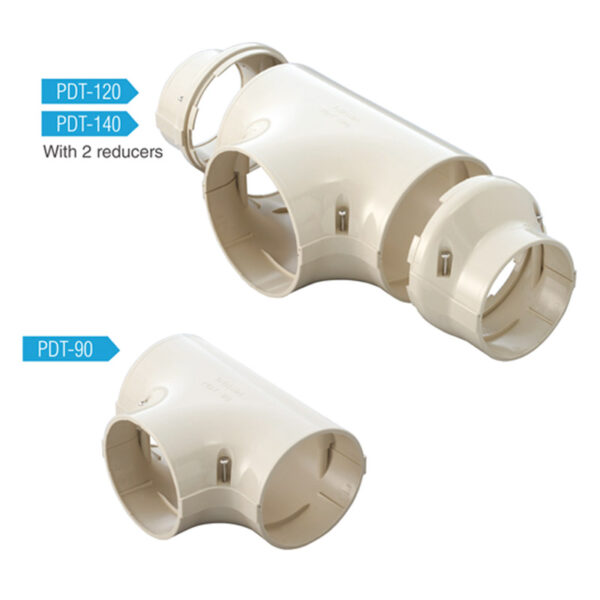

A_Slimduct PD is available in PD-90, PD-120, and PD-140, corresponding to pipe clamp sizes up to 80A, 100A, and 125A respectively. Each size accommodates different copper pipe combinations with various insulation thicknesses.

Q_What is the recommended interval for pipe support brackets?

A_Vertical piping_1500 mm (59″)

Horizontal piping_1000–1500 mm (39″–59″), depending on support type

Suspension piping_1000 mm (39″)

Q_What accessories are available with Slimduct PD?
A_The system includes fittings such as elbows, T-branches, reducers, couplers, wall flanges, reinforcement accessories, and mounting couplers for U-clamps. Each accessory has specific installation procedures and configurations.

Q_What material is used in Slimduct PD?

A_Slimduct PD is made of durable resin engineered for weather resistance and structural stability, with specific design features to minimize damage under environmental stress.

Q_What safety precautions should I follow during installation?

A_Always wear protective gear, including gloves, goggles, and helmets. Avoid using impact drivers on uneven surfaces to prevent product damage—use torque screwdrivers where possible.

Q_Can Slimduct PD be cut to size?

A_Yes. Ducts can be trimmed using a hand saw or hacksaw. Refer to the installation manual for exact cutting lengths based on bracket spacing and pipe clamp widths.
