Secures Slimduct PD ducts to a strut or bracket for stable, clean commercial HVAC installations.

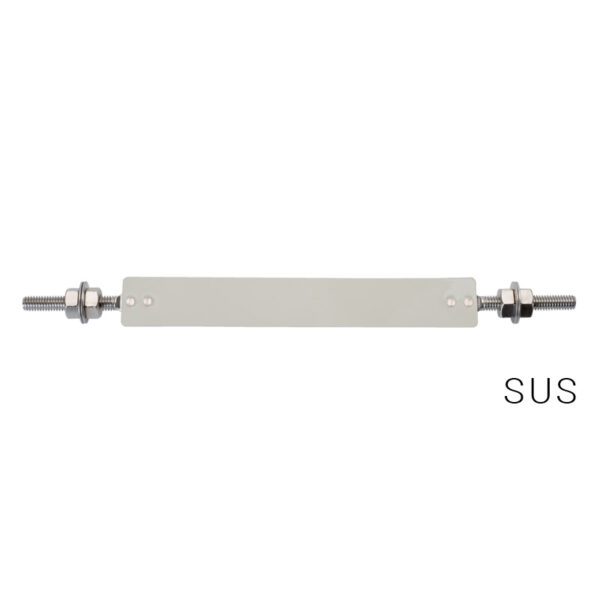

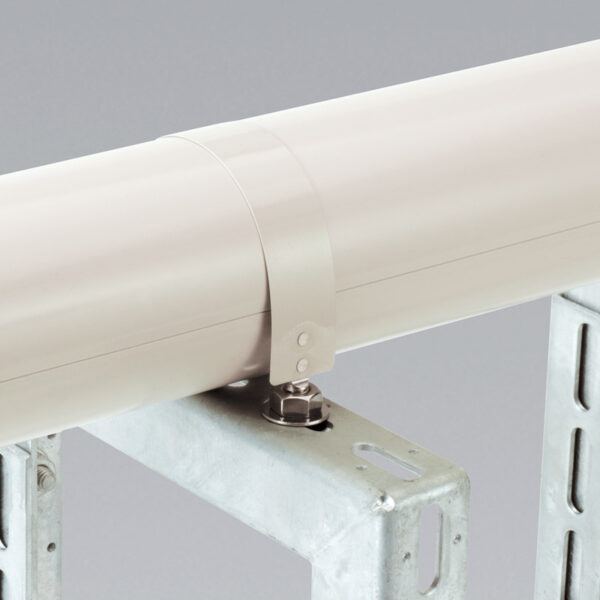

The Slimduct PDU Duct Fixing Saddle provides secure support for Slimduct PD ducts when mounted to a strut or bracket. Designed for stability and a clean finish, it helps maintain alignment and reinforces commercial lineset protection with a professional appearance.
As part of the Slimduct PD Commercial Lineset Cover System, the PDU Saddle is ideal for rooftop and wall-mounted HVAC installations. It also integrates seamlessly with Slimduct RD systems for dependable condenser transitions.
In case of vertical piping, fix each parts using such as Fitting mount clip PDH, etc.

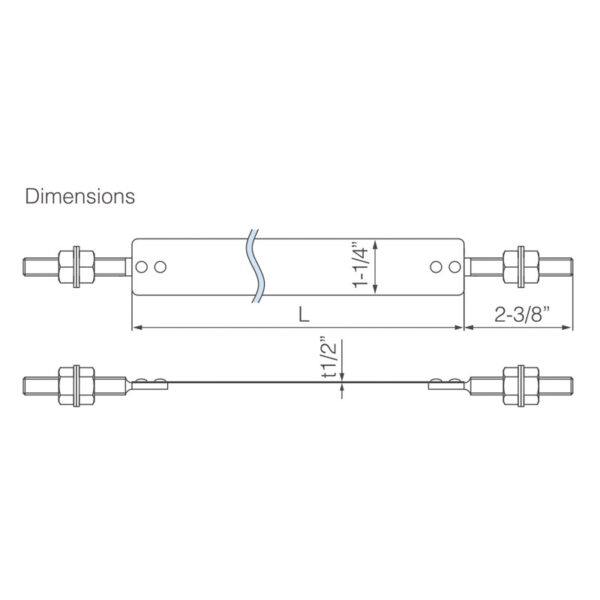

| Code No. | Item No. | Duct Size | L | Pcs/Pkg |
|---|---|---|---|---|
| C 68762 | PDU-90-I | PD-90 | 8-3/8″ | 30 |
| C 68772 | PDU-120-I | PD-120 | 11-1/4″ | 30 |
| C 68782 | PDU-140-I | PD-140 | 13-3/8″ | 30 |
| * In the case of vertical piping, fix each part using such as Fitting Mount Clip PDH, etc. | ||||
A. Slimduct PD is a lineset cover system designed to provide a durable and aesthetic solution for protecting HVAC refrigerant piping, wiring, and drain lines in commercial installations.
A. No, Slimduct PD is not waterproof. Caulking or sealing with putty is required at wall penetrations and connection points to prevent water intrusion.
A. The recommended surface temperature range is -20°C to 60°C (-4°F to 140°F). Avoid exposure to extreme heat, especially in confined or sun-exposed spaces, to prevent deformation.
A. Installation in areas with high radiant heat—such as metallic eaves, heat storage walls, or near heat-generating equipment—should be avoided unless well-ventilated, as this can cause material softening or warping.
A. Slimduct PD is available in PD-90, PD-120, and PD-140, corresponding to pipe clamp sizes up to 80A, 100A, and 125A respectively. Each size accommodates different copper pipe combinations with various insulation thicknesses.
A. Vertical piping_1500 mm (59″)
Horizontal piping_1000–1500 mm (39″–59″), depending on support type
Suspension piping_1000 mm (39″)
A. The system includes fittings such as elbows, T-branches, reducers, couplers, wall flanges, reinforcement accessories, and mounting couplers for U-clamps. Each accessory has specific installation procedures and configurations.
A. Slimduct PD is made of durable resin engineered for weather resistance and structural stability, with specific design features to minimize damage under environmental stress.
A. Always wear protective gear, including gloves, goggles, and helmets. Avoid using impact drivers on uneven surfaces to prevent product damage—use torque screwdrivers where possible.
A. Yes. Ducts can be trimmed using a hand saw or hacksaw. Refer to the installation manual for exact cutting lengths based on bracket spacing and pipe clamp widths.
