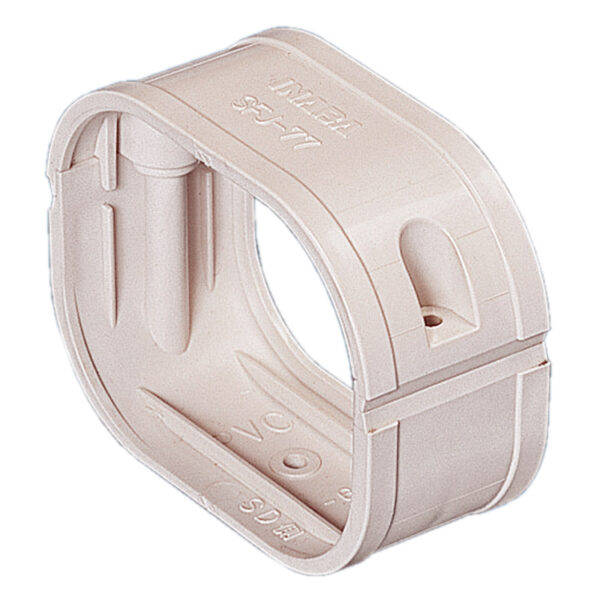

The Slimduct SFJ Flexible Adapter connects the SF Flexible Ell without end cuffs to the SD Duct, creating a smooth and polished transition for enhanced lineset protection. Made of high-grade PVC, this HVAC flex adapter provides durable resistance against weather, vandalism, pest damage, and other environmental factors, making it ideal for maintaining both function and appearance in HVAC installations.
SFJ Flexible Adapter for HVAC Lineset Covers
Connects the SF Flexible Ell without end cuffs to SD Duct for a clean, finished look. Made of high-grade PVC for durable, weather-resistant lineset protection.
The SFJ Flexible Adapter gives HVAC contractors a practical connection point between a cuffless SF Flexible Ell and Slimduct SD Straight Duct. Its compact design supports flexible routing while keeping covered linesets neat and protected.
Connects Flexible and Straight Sections

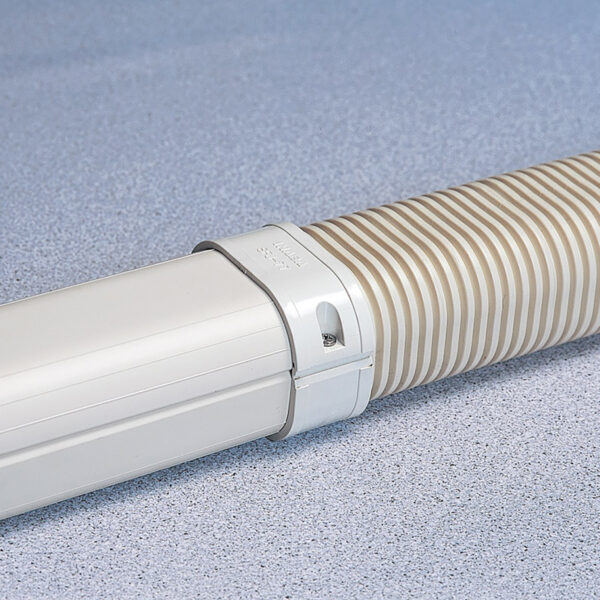

The SFJ connects an SF Flexible Ell without end cuffs to Slimduct SD Straight Duct, helping you create a smooth transition between flexible and straight lineset cover sections.
Compatible with SD-77 and SD-100
Available for Slimduct SD sizes 77 and 100, the adapter provides a compatible connection for common residential lineset cover configurations where flexible routing meets straight duct.
Built for Lasting Protection
As part of the Slimduct SD system, this HVAC flex adapter works within a lineset cover system designed to protect exposed piping from weather, physical contact, and pests.
Supports a Clean Finished Look
The adapter bridges two different cover sections while maintaining the clean profile of the Slimduct SD system, giving your exposed HVAC linesets a more polished look.
Part of a Flame-Retardant System
Slimduct SD uses flame-retardant materials and is designed for HVAC applications where contractors need dependable lineset protection paired with a clean, professional finish.

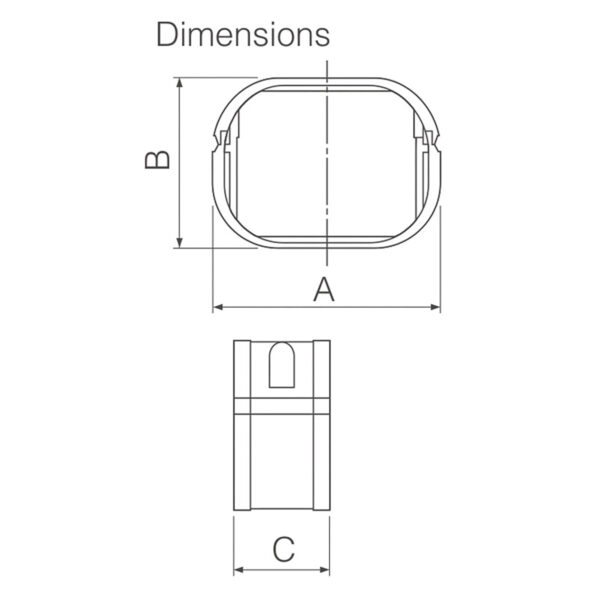

| Code No. | Item No. | A | B | C | Pcs/Pkg |
|---|---|---|---|---|---|
| C 0437 | SFJ-77 | 3-3/8″ | 2-5/8″ | 1-1/2″ | 20 |
| C 0438 | SFJ-100 | 4-3/8″ | 3″ | 1-5/8″ | 20 |
| *Use in combination with SFS. | |||||
| *For secure joint, insert 2 corrugations of SF into SFJ adaptor. | |||||
Q: What Is The SFJ Flexible Adapter Used For?
A: The SFJ Flexible Adapter connects an SF Flexible Ell without end cuffs to compatible Slimduct SD Straight Duct. It creates a clean transition where a flexible cover section meets a straight section.
Q: Which Slimduct SD Sizes Work With the SFJ Flexible Adapter?
A: This HVAC flex adapter is available as SFJ-77 and SFJ-100 for use with compatible Slimduct SD 77 and 100 components.
Q: How Should the SF Flexible Ell Connect to the SFJ Adapter?
A: For a secure joint, insert two corrugations of the compatible SF Flexible Ell into the SFJ Flexible Adapter and follow the applicable installation instructions.
Q: If Sealing Around Joints Is Required, What Sealant Should I Use?
A: Use a silicone sealant with strong UV resistance when sealing is required around joints or other exposed areas.
Q: Can I use Slimduct SD Indoors?
A: Yes, you can use this HVAC flex adapter for indoor applications. It has a clean profile, which will not affect your interior negatively.
Q: Can I Use Slimduct SD with Slimduct PD?
A: Yes, use the PD-SD Coupler (PSDR) from the Slimduct PD series when connecting compatible Slimduct SD and Slimduct PD components.
Q: Can Slimduct SD Protect Items Other Than HVAC Linesets?
A: Yes, you may use Slimduct SD for other compatible piping applications when installed according to the applicable product instructions and installation manual.
Q: Do I Need Specialized Tools to Install Slimduct SD?
A: No specialized tools are required for standard Slimduct SD installation. Use the appropriate tools and follow the installation instructions for the specific components.
Q: What Is the Best Way to Make a Straight Cut in Slimduct SD?
A: The Slimduct Cutter VD-2100 is designed for cutting Slimduct SD and can help installers produce clean, straight cuts during installation.
Q: Can I Combine Slimduct SD With Another Manufacturer’s Lineset Cover?
A: Please use only other Inaba Denko products for installation. Our warranty does not cover outside products.
Q: I Installed the Lineset Cover Outside, and It Deformed. What Should I Do?
A: If the product sustains excessive heat beyond the tested ranges, there is a possibility of deformation. When installed horizontally, if the inner piping of the product is not properly supported, it could deform due to the weight. Please see the Instruction Manual for details.
Q: What Are the Protrusions Inside Some Slimduct SD Fittings?
A: These pins fit into holes in the duct cover to help prevent downward slipping in vertical applications. Installers can remove the pins when they are not required.
Caution
- Slimduct SD is not waterproof. Seal longitudinal and lateral seams, screw heads, and wall penetrations with suitable weatherproof sealant or putty where waterproofing is required.
- Slimduct SD duct and fittings are suitable for use and storage from -4°F to 140°F. Temperatures above 140°F may cause deformation. Protect installed components from direct and radiant heat.
- Avoid using impact screwdrivers to attach Slimduct components or tighten fittings. Excessive torque can crack PVC components. Use hand screwdrivers for better torque control.
- Use the SL-300 Strap Kit to retain the lineset inside the duct.
Why Choose Inaba Denko
We develop HVAC accessories around practical applications. Our products, including this HVAC flex adapter, combine precise engineering, compatible components, and dependable materials.
Japanese Engineering Experience
We have developed HVAC products since 1978, applying decades of engineering experience to accessories designed around everyday HVAC installation needs.
Complete Lineset Cover System
Slimduct SD includes straight ducts, adapters, elbows, wall inlets, couplers, and other fittings, giving contractors compatible components for a wide range of lineset layouts.
Designed With Installers in Mind
Our HVAC accessories focus on practical installation, clean connections, and dependable fit, helping you handle different piping routes without sacrificing the look or function.
Support across North America
Inaba Denko America supports distributors and HVAC professionals throughout North America with product information, technical resources, and access to several products.
Best Used For

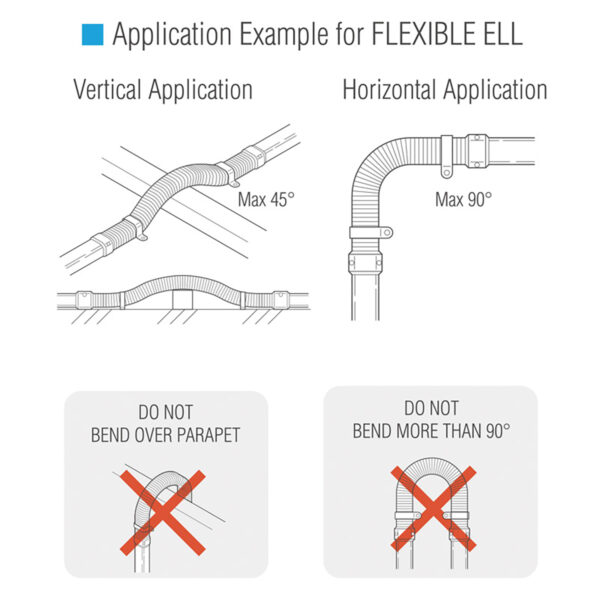

The SFJ Flexible Adapter is best suited for installations where an SF Flexible Ell without end cuffs needs to transition into Slimduct SD Straight Duct. It works well where linesets need flexible routing around building features before continuing along a straight section.
Contractors can use this HVAC flex adapter with compatible Slimduct SD components on residential mini-split, heat pump, and unitary HVAC installations. It helps keep exposed lineset routing organized while maintaining a consistent finished appearance.
Complete Your Lineset Installation with Inaba Denko
Inaba Denko America supplies HVAC accessories designed for clean, organized, and durable installations. From Slimduct lineset covers and fittings to pipe supports and condensate management products, our solutions continue to strengthen HVAC projects across North America.
Do you need help selecting this HVAC flex adapter or compatible Slimduct SD components for your installation? Our team can help you identify the right products for your project.
