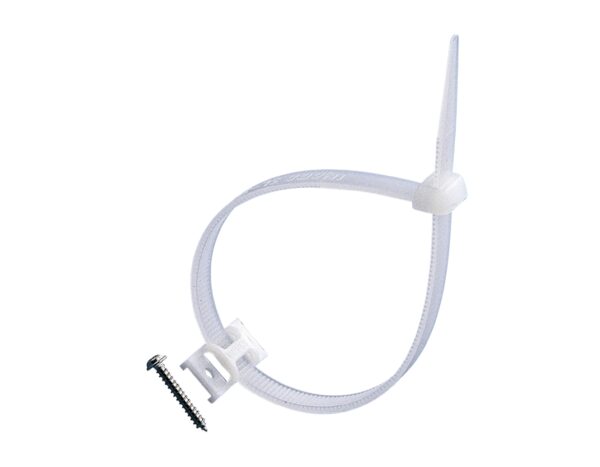

The SL-300 is a secure strap kit designed for use with Slimduct SD to hold the linesets in place. For best performance, do not over-tighten the strap, as it may reduce insulation efficiency. Ideal for clean, reliable outdoor installations.
SL Strap Kit for Slimduct
SL Strap Kit for Slimduct
Secures lineset in place. Made of high-grade PVC for durable protection. Avoid over-tightening to maintain insulation performance.
- Compatible with Slimduct SD: Rear grooves are designed to straddle Slimduct SD, ensuring secure and aligned installation.

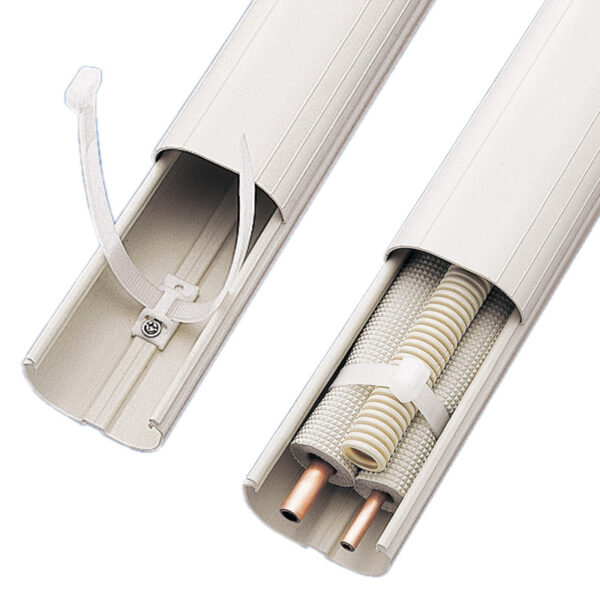

- Efficient Lineset Management: Integrated ties compress and organize the lineset for a tighter fit, allowing the Slimduct cover to close easily.
- Enhanced System Longevity: Reduces lineset movement and strain, helping to prolong the life of the HVAC system
| Code No. | Item No. | Pcs/Pkg |
|---|---|---|
| C 04720 | SL-300 | 500 |

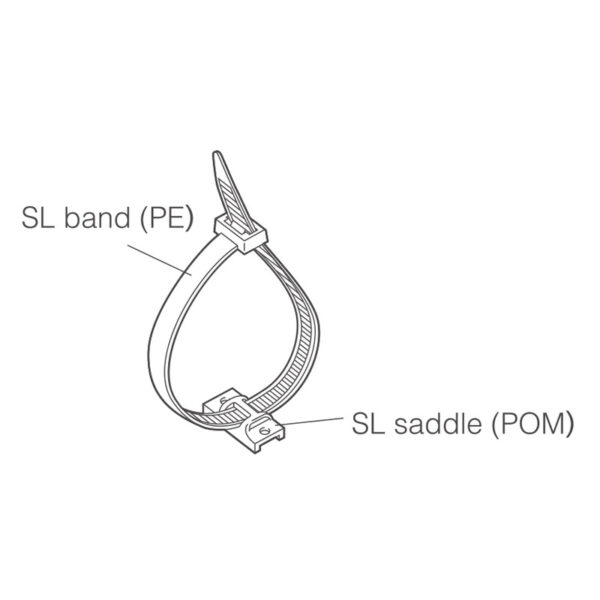

| Material: PE (SL Band), POM (SL saddle) | ||
| * Do not overtighten strap! That may decrease insulation performance. | ||
Q. If sealing around joints is required; what kind of sealant should I use?
A. A UV resistant silicone is recommended .
Q. To use as a reference when cutting the straight duct, what are the measurements of the product?
A. The center of the straight duct hole for the screw fitting (half open hole) is 100mm or approximately 4″ pitch (both ends are about 55mm or approximately 2″).
Q. What are the measurements of the product?
A. SLIMDUCT SD is available in three size, 3″, 4″. 5-1/2″
Q. Can SLIMDUCT SD also be used indoors?
A. Yes. It will not negatively affect the aesthetic of the room when used indoors.
Q. What can I do to mount it on the wall?
A. Please use the specified option parts from the Residential Elevating System.
Q. Can SLIMDUCT SD be used with the SLIMDUCT PD (separate series)?
A. Yes, use the PD-SD Coupler (PSDR) from the SLIMDUCT PD series.
Q. Can I use SLIMDUCT SD for protecting things other than air conditioning pipes?
A. Yes, it may be used for other kinds of pipes as long as the product is being used as directed by the Instruction Manual.
Q. Do I need any specific tools to install the product?
A. No, specialized tools are not necessary.
Q. What is the best way to make a straight cut?
A. While many tools are available to use, we recommend the Slimduct Cutter (VD-2100) available, which is specially designed to cut Slimduct SD.
Q. Can I install the product in combination with another company’s lineset cover?
A. Please use only other Inaba Denko products for installation. Our warranty does not cover outside products.
Q. I installed the lineset cover outside and it deformed. What should I do?
A. If the product sustains excessive heat beyond the tested ranges, there is a possibility of deformation. When installed horizontally, if the inner piping of the product is not properly supported, it could deform due to the weight. Please refer to the Instruction Manual for details.
Q. What are the protrusions inside the SW and the SK?
A. The protrusions (pins) are meant to be inserted into a hole in the duct covers to prevent the duct cover from slipping downward in a vertical application. If those protrusions are not needed, they may be removed.
