SW Wall Inlet

The Slimduct SD Wall Inlet protects linesets as they enter exterior walls, shielding them from weather, pests, and damage. Made from durable, high-grade PVC for long-lasting performance.

The Slimduct SW Wall Inlet provides a clean, secure entry point for HVAC linesets as they pass through a building’s exterior wall. Made from high-grade, weather-resistant PVC, it protects your system against rain, UV rays, pests, vandalism, and other environmental hazards. This durable construction helps preserve insulation integrity and extends your HVAC system’s lifespan while maintaining a neat, professional appearance.

The SW Wall Inlet includes a back pin to prevent sliding. You can insert the pin into the straight duct punch-out hole for a secure fit, or break it off for a tight, flush installation.

Designed for both new construction and retrofit projects, the Slimduct SD system features a snap-together design for fast installation, easy maintenance, and clean upgrades without damaging components. Its sleek, low-profile design is available in multiple sizes and colors, blending with various exterior finishes for a professional look.

Whether used on a high-rise or a single-family home, the Slimduct SW Wall Inlet offers reliable protection, long-term performance, and a finished appearance that reflects the quality of your work.

Request distributor quote

Long-Lasting Protection:
Slimduct SD is made from special high-grade PVC engineered for superior UV and weather resistance, performing reliably within a wide temperature range of -4°F to 140°F.

Architectural Lineset Cover:
Slimduct conceals and protects exposed linesets, maintaining a professional finish suitable for all ductless and unitary HVAC systems across residential and commercial applications.

Flame Retardant:
Constructed from flame-retardant materials, Slimduct SD increases system safety by reducing fire risk in both indoor and outdoor installations.

Slip Prevention:
The SW Wall Inlet cover features a built-in pin that prevents duct covers from slipping or sliding, keeping linesets securely in place over time.

Code No.Item No.ABCDEPcs/Pkg*
C 0412SW-773-3/8″2-5/8″4-3/8″8-1/8″3-1/8″60 (20)
C 0413SW-1004-3/8″3″5-1/8″8-7/8″3-1/2″10 (10)
C 0414SW-1405-3/4″3-3/8″6-5/8″11-1/8″3-7/8″5 (5)
* ( ) shows quantities of Gray, White, Black and Brown.
Instruction ManualSpecsCross ReferenceTest Report

Q. If sealing around joints is required, what kind of sealant should I use?
A. Use a UV-resistant silicone sealant for optimal durability and weather protection when sealing around joints on the SW Wall Inlet or other Slimduct components.

Q. To use as a reference when cutting the straight duct, what are the measurements of the product?
A. The center of the straight duct hole for the screw fitting is 100 mm (approximately 4″) pitch, with both ends measuring about 55 mm (approximately 2″).

Q. What are the available sizes of Slimduct SD?
A. Slimduct SD is available in three sizes: 3″, 4″, and 5-1/2″, suitable for various HVAC installations, including the SW Wall Inlet application.

Q. Can Slimduct SD be used indoors?
A. Yes, Slimduct SD and the SW Wall Inlet can be installed indoors and come in several sizes and colors to match different décor styles.

Q. How can I mount it on the wall?
A. Use appropriate mounting hardware based on the wall material or substrate when installing the SW Wall Inlet or Slimduct system.

Q. Can Slimduct SD be used with the Slimduct PD series?
A. Yes, use the PD-SD Coupler (PSDR) from the Slimduct PD series to connect Slimduct SD or an SW Wall Inlet with PD components.

Q. Can Slimduct SD be used for other purposes besides linesets?
A. The Slimduct SD and SW Wall Inlet can protect other items, as long as installation follows the official installation manual.

Q. Are any specialized tools needed for installation?
A. No special tools are required. The SW Wall Inlet and the Slimduct system can be installed using standard hand tools.

Q. What is the best way to make a straight cut?
A. Use the Slimduct Cutter (VD-2100) for precise, smooth cuts when installing the SW Wall Inlet or other Slimduct components.

Q. Can I install the product with another brand’s lineset cover?
A. No. Use only Inaba Denko components, including the SW Wall Inlet. Mixing with other brands voids the product warranty.

Q. What should I do if the lineset cover deforms outdoors?
A. If deformation occurs, check for exposure to heat above 140°F or inadequate inner pipe support. Follow the installation manual for corrections.

Q. What are the protrusions inside the SW and SK?
A. The protrusions (pins) inside the SW Wall Inlet prevent slips in vertical applications. If not needed, they can be removed safely.

Caution:

  • Slimduct SD is not waterproof. For waterproofing, seal all seams, screw heads, and wall penetrations with a weatherproof sealant or putty.
  • Operate within –4°F to 140°F. Protect Slimduct and SW Wall Inlet from direct or radiant heat.
  • Avoid using impact screwdrivers; use hand tools to prevent cracking the PVC.
  • Use the SL-300 Strap Kit to secure linesets inside the duct.

Why Choose Inaba Denko America

Inaba Denko America offers high-quality HVAC accessories designed for lasting performance, easy installation, and dependable protection. Our products help you complete clean, code-compliant installations that meet professional standards across residential, commercial, and industrial projects.

Proven Japanese Engineering

Each product, including the SW Wall Inlet and Slimduct systems, is precision-engineered by Inaba Denko Japan and offers consistent performance for demanding HVAC environments.

Durable, Weather-Resistant Materials

We use high-grade PVC and metals tested to resist UV rays, temperature swings, and impact damage, keeping systems reliable year-round in all North American climates.

Contractor-Focused Design

Our plug-and-play installation features save time and prevent errors on-site. Every component fits seamlessly, providing secure connections that simplify HVAC installation and maintenance.

Trusted by Professionals

Distributors and contractors across North America choose Inaba Denko America for durable accessories, responsive support, and proven reliability backed by 50+ years of track record.

Best Used For

The SW Wall Inlet is ideal for mini split, VRF, and heat pump installations. It provides a clean, secure entry point for linesets through exterior walls while maintaining system performance and curb appeal.

It is suitable for residential, commercial, and light industrial applications. It protects HVAC lines from weather, pests, and impact while delivering a polished, professional finish to every installation.

Order an SW Wall Inlet for Your HVAC Upgrade Now

Need help selecting the right SW Wall Inlet or other Slimduct components for your project? Contact our HVAC specialists today for personalized guidance, technical support, and distributor information to simplify your next installation.

Talk to An Expert

You May Also Be Interested In

lineset cover

SD Straight Duct Lineset Cover

The Slimduct SD Straight Duct neatly covers exposed linesets mounted on walls, providing a clean,...

pipe coupler

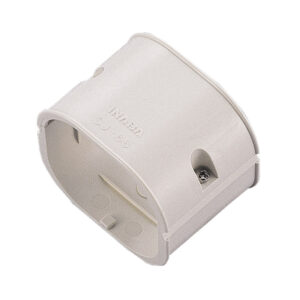

SJ Pipe Coupler
