SKU DSH-UP20E20E-07 Categories , Tag Brand:

DSH-Up E Elbow Type

DSH-Up_DSH-UP20E2OER-07drawing1-1
SKU DSH-UP20E20E-07 Categories , Tag Brand:

DSH-Up E Elbow Type

The DSH-Up Elbow Type is a thermal insulated drain-up hose kit for indoor AC units with pre-insulated hose with fittings that eliminates piecing together PVC and the risk of water leakage from cement failure..

Drain Hose Kit (Elbow Type) – Optimized Drainage for Tight Spaces

The Drain Hose Kit (Elbow Type) is designed to provide efficient water drainage in HVAC, refrigeration, and plumbing systems, especially in confined or angled installations. Its elbow-shaped design ensures smooth water flow while preventing kinks and blockages, making it an ideal choice for space-saving drainage solutions.
– Elbow-Type Design – Perfect for installations in tight spaces, ensuring optimal drainage without bending or kinking.

Request distributor quote

Replace Multiple Adhesive Connections, replace risk of water leakage, reduce labor, pre-connected hose with fittings, No cement or adhesives needed, pre-insulated hose, exclusive insulation technology, transparent fittings, water leakage check sheet

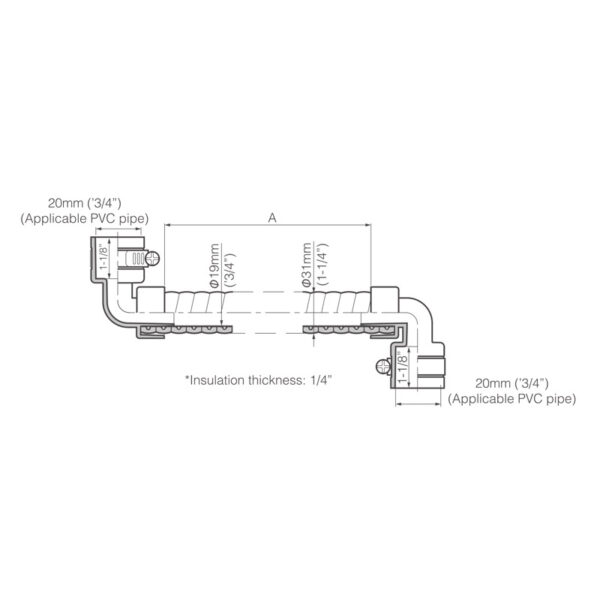

Code No.Item No.APcs/Pkg
C 08364DSH-UP20E20E-07700mm (27-5/8″)10
C 08374DSH-UP20E20E-101,000mm (39-3/8″)10
Specs and Instruction Manual DSH-UP20E20S-07.pdfSpecs and Instruction Manual DSH-UP20E20E-10.pdf

Q. Are there any proven cases of installation?

A . With sales in Japan and the world, we have about 600,000 units of actual installation.

Q. Are there any proven cases of installation?

A . There are approximately 600,000 installations globally with a small number in North America and growing.

Q. Can I use DSH-UP for equipment besides air-conditioning units?

A . DSH-UP was developed to be used for drain-up piping on indoor air-conditioning units. It is not suitable to be used for other purposes.

Q. Can I use DSH-UP for equipment besides air-conditioning units?

A . DSH-UP is designed to work as an air conditioning condensate drain hose only and should not be used outside of its intended purpose.

Q. Can DSH-UP be used outdoors?

A . It is specialized for indoor use. Please do not use it outside.

Q. Can DSH-UP be used outdoors?

A . No, it does not contain any UV protection and should not be used outdoors.

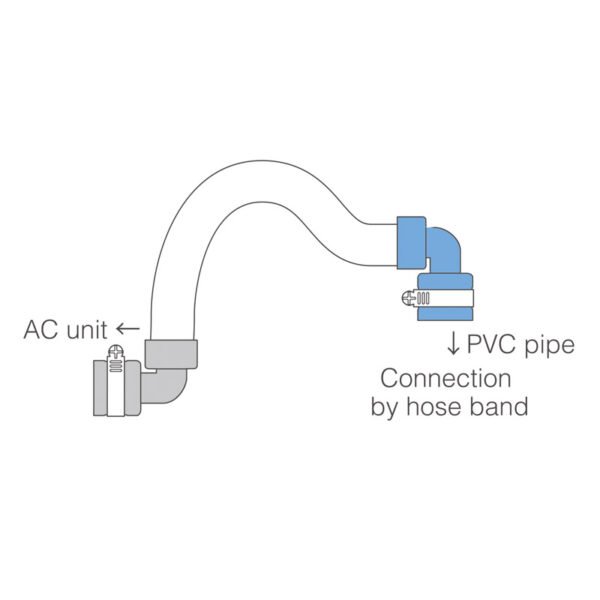

Q. When connecting the DSH-UP coupler to a PVC pipe, is it okay to use an adhesive instead of a metal band to make the connection?

A . Please do not use adhesive. Only use the metal hose band for connections.

Q. When connecting the DSH-UP coupler to a PVC pipe, is it okay to use an adhesive instead of the hose clamp to make the connection?

A . The connections are flexible and not compatible with any type of glue or adhesive. Use the stainless steel hose clamps provided with the product.

Q. Are the DSH-UP couplers and other parts included in the kit also sold separately?

A . No, the parts must be purchased as part of the kit.

Q. Are the DSH-UP couplers and other parts included in the kit also sold separately?

A . No, the parts needed are included in the kit. If additional parts are needed, another kit would need to be purchased.

Q. What should I do about condensation around the product?

A . Depending on the surroundings, insulation can be wrapped around the hose and coupler as a countermeasure to condensation.

Q. What should I do about condensation around the product?

A . While rare, if external condensation is an issue, additional field-supplied insulation may be applied around all surfaces and fittings.
