DSH-Up E Elbow Type
DSH-Up E Elbow Type

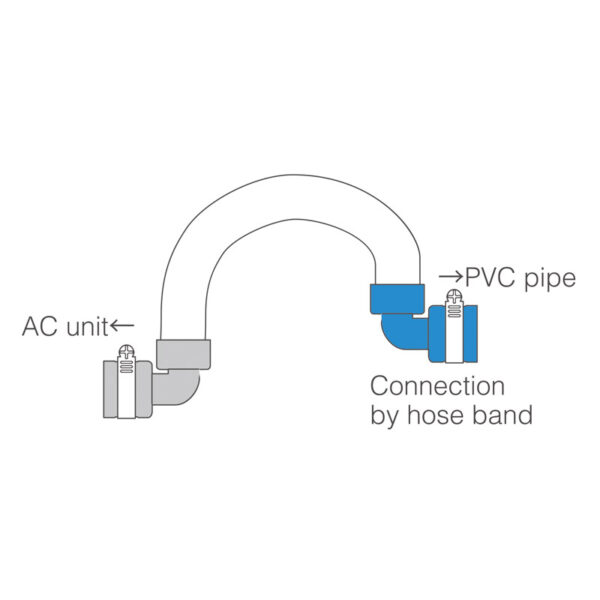

The DSH-Up Elbow Type is a thermal insulated drain-up hose kit for indoor AC units with pre-insulated hose with fittings that eliminates piecing together PVC and the risk of water leakage from cement failure..
The DSH-Up Elbow Type is a thermal insulated drain-up hose kit for indoor AC units with pre-insulated hose with fittings that eliminates piecing together PVC and the risk of water leakage from cement failure..
Replace Multiple Adhesive Connections, replace risk of water leakage, reduce labor, pre-connected hose with fittings, No cement or adhesives needed, pre-insulated hose, exclusive insulation technology, transparent fittings, water leakage check sheet
| Code No. | Item No. | A | Pcs/Pkg |
|---|---|---|---|
| C 08364 | DSH-UP20E20E-07 | 700mm (27-5/8″) | 10 |
| C 08374 | DSH-UP20E20E-10 | 1,000mm (39-3/8″) | 10 |
Q. Are there any proven cases of installation?
A. Yes. DSH-UP has approximately 600,000 installations globally, including a growing number in North America.
Q. Can I use DSH-UP for equipment besides air-conditioning units?
A. No. DSH-UP is specifically developed for condensate drain piping on indoor air-conditioning units and is not intended for other applications.
Q. Can DSH-UP be used outdoors?
A. No. DSH-UP is designed for indoor use only and does not contain UV protection for outdoor conditions.
Q. When connecting the DSH-UP coupler to a PVC pipe, is it okay to use an adhesive instead of a metal band?
A. No. Adhesives are not compatible. Please use the stainless steel hose clamps provided with the product to ensure a secure connection.
Q. Are the DSH-UP couplers and other parts in the kit sold separately?
A. No. All required parts are included in the kit. If additional components are needed, an additional kit must be purchased.
Q. What should I do about condensation around the product?
A. If external condensation occurs, insulation can be field-applied around the hose and coupler to prevent moisture buildup. This is recommended in high-humidity environments.
